Avatar AWP02L2

Amazon Link

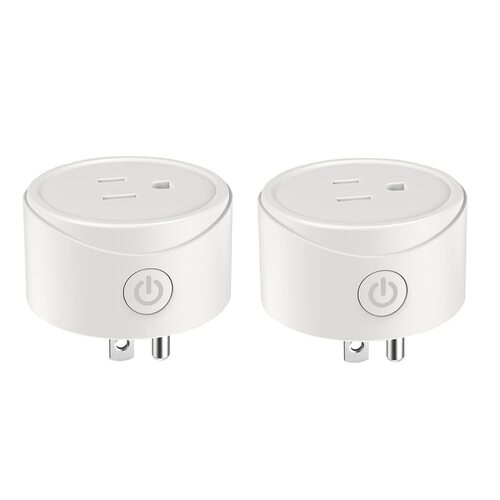

Product Image

General Notes

Model Reference: AWP02L2

Manufacturer: Avatar

The Avatar Smart Mini WiFi Plug is available at Amazon.com. The product is sold under the Round Arc style.

This plug can be converted using tuya-convert to flash ESPHome (as of January 2022).

GPIO Pinout

Pin	Function
GPIO2	Blue LED (inverted)
GPIO13	Button (input_pullup)
GPIO15	Relay

Basic Configuration

substitutions:
  device_name: avatar_awp02l2
  friendly_name: Avatar AWP02L2

esphome:
  name: "${device_name}"

esp8266:
  board: esp01_1m

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

# Enable logging
logger:

# Enable Home Assistant API
api:

ota:
  password: !secret avatar_1_ota

binary_sensor:
  - platform: gpio
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: True
    name: "${friendly_name} Button"
    id: "${device_name}_button"
    on_press:
      - switch.toggle: "${device_name}_relay"
  - platform: status
    name: "${friendly_name} Status"
    id: "${device_name}_status"

switch:
  - platform: gpio
    name: "${friendly_name} Relay"
    id: "${device_name}_relay"
    pin: GPIO15
    on_turn_on:
      - output.turn_on: led
    on_turn_off:
      - output.turn_off: led

output:
  - platform: gpio
    pin: GPIO2
    inverted: true
    id: led

sensor:
  - platform: wifi_signal
    name: "${friendly_name} WiFi signal"
    id: "${device_name}_wifi_signal"
    update_interval: 60s
  - platform: uptime
    name: "${friendly_name} Uptime"
    id: "${device_name}_uptime"
    update_interval: 60s

text_sensor:
  - platform: version
    name: "${friendly_name} ESPHome Version"
    id: "${device_name}_esphome_version"
