ESP32-S3 4.0 Inch Smart Display
Description
The "ESP32-S3 4.0 Inch Smart Display" is a cheap (~30 Euro) wall-mounted touch display
- ESP32-S3 (QFN56) with 16MB flash and 8MB PSRAM
- 4 inch display (driven with a ST7701s) and a GT911 touch screen
- 1 or 3 relays
Links
Simple Configuration
substitutions:
device_name: touchdisplay1
esphome:
name: $device_name
on_boot:
- output.turn_on: backlight
psram:
mode: octal
speed: 80MHz
esp32:
board: esp32-s3-devkitc-1
flash_size: 16MB
framework:
type: esp-idf
api:
sensor:
- platform: wifi_signal
name: "$device_name WiFi Signal"
id: sensor_wifi
update_interval: 60s
entity_category: "diagnostic"
- platform: uptime
id: uptime_sensor
name: "$device_name Uptime"
update_interval: 15s
entity_category: "diagnostic"
spi:
mosi_pin: GPIO47
clk_pin: GPIO48
display:
- platform: st7701s
color_order: RGB
dimensions:
width: 480
height: 480
cs_pin: GPIO39
de_pin: GPIO18
hsync_pin: GPIO16
vsync_pin: GPIO17
pclk_pin: GPIO21
data_rate: 40MHz
data_pins:
- 46
- 9
- 10
- 11
- 12
- 13
- 14
- 0
- 4
- 5
- 6
- 7
- 15
- 8
- 20
- 3
init_sequence:
- [0x01]
- [0xFF, 0x77, 0x01, 0x00, 0x00, 0x10]
- [0xC0, 0x3B, 0x00]
- [0xC1, 0x0D, 0x02]
- [0xC2, 0x31, 0x05]
#- [0xCD, 0x08]
- [0xCD, 0x00] #This differs from the standard init sequence.
#We need to set MDT=0.
- [
0xB0,
0x00,
0x11,
0x18,
0x0E,
0x11,
0x06,
0x07,
0x08,
0x07,
0x22,
0x04,
0x12,
0x0F,
0xAA,
0x31,
0x18,
]
- [
0xB1,
0x00,
0x11,
0x19,
0x0E,
0x12,
0x07,
0x08,
0x08,
0x08,
0x22,
0x04,
0x11,
0x11,
0xA9,
0x32,
0x18,
]
- [0xFF, 0x77, 0x01, 0x00, 0x00, 0x11]
- [0xB0, 0x60]
- [0xB1, 0x32]
- [0xB2, 0x07]
- [0xB3, 0x80]
- [0xB5, 0x49]
- [0xB7, 0x85]
- [0xB8, 0x21]
- [0xC1, 0x78]
- [0xC2, 0x78]
- [0xE0, 0x00, 0x1B, 0x02]
- [0xE1, 0x08, 0xA0, 0x00, 0x00, 0x07, 0xA0, 0x00, 0x00, 0x00, 0x44, 0x44]
- [0xE2, 0x11, 0x11, 0x44, 0x44, 0xED, 0xA0, 0x00, 0x00, 0xEC, 0xA0, 0x00, 0x00]
- [0xE3, 0x00, 0x00, 0x11, 0x11]
- [0xE4, 0x44, 0x44]
- [
0xE5,
0x0A,
0xE9,
0xD8,
0xA0,
0x0C,
0xEB,
0xD8,
0xA0,
0x0E,
0xED,
0xD8,
0xA0,
0x10,
0xEF,
0xD8,
0xA0,
]
- [0xE6, 0x00, 0x00, 0x11, 0x11]
- [0xE7, 0x44, 0x44]
- [
0xE8,
0x09,
0xE8,
0xD8,
0xA0,
0x0B,
0xEA,
0xD8,
0xA0,
0x0D,
0xEC,
0xD8,
0xA0,
0x0F,
0xEE,
0xD8,
0xA0,
]
- [0xEB, 0x02, 0x00, 0xE4, 0xE4, 0x88, 0x00, 0x40]
- [0xEC, 0x3C, 0x00]
- [
0xED,
0xAB,
0x89,
0x76,
0x54,
0x02,
0xFF,
0xFF,
0xFF,
0xFF,
0xFF,
0xFF,
0x20,
0x45,
0x67,
0x98,
0xBA,
]
- [0xFF, 0x77, 0x01, 0x00, 0x00, 0x13]
- [0xE5, 0xE4]
- [0x3A, 0x60]
# show_test_card: true
touchscreen:
platform: gt911
id: my_touchscreen
#interrupt_pin: GPIOXX
i2c:
scl: GPIO45
sda: GPIO19
output:
- platform: ledc
pin: GPIO38
id: backlight
switch: #relais
- platform: gpio
name: "$device_name Relay 1"
pin: GPIO40
id: relay1
- platform: gpio
name: "$device_name Relay 2"
pin: GPIO2
id: relay2
- platform: gpio
name: "$device_name Relay 3"
pin: GPIO1
id: relay3
Advanced Configuration
- to be combined with the simple configuration above

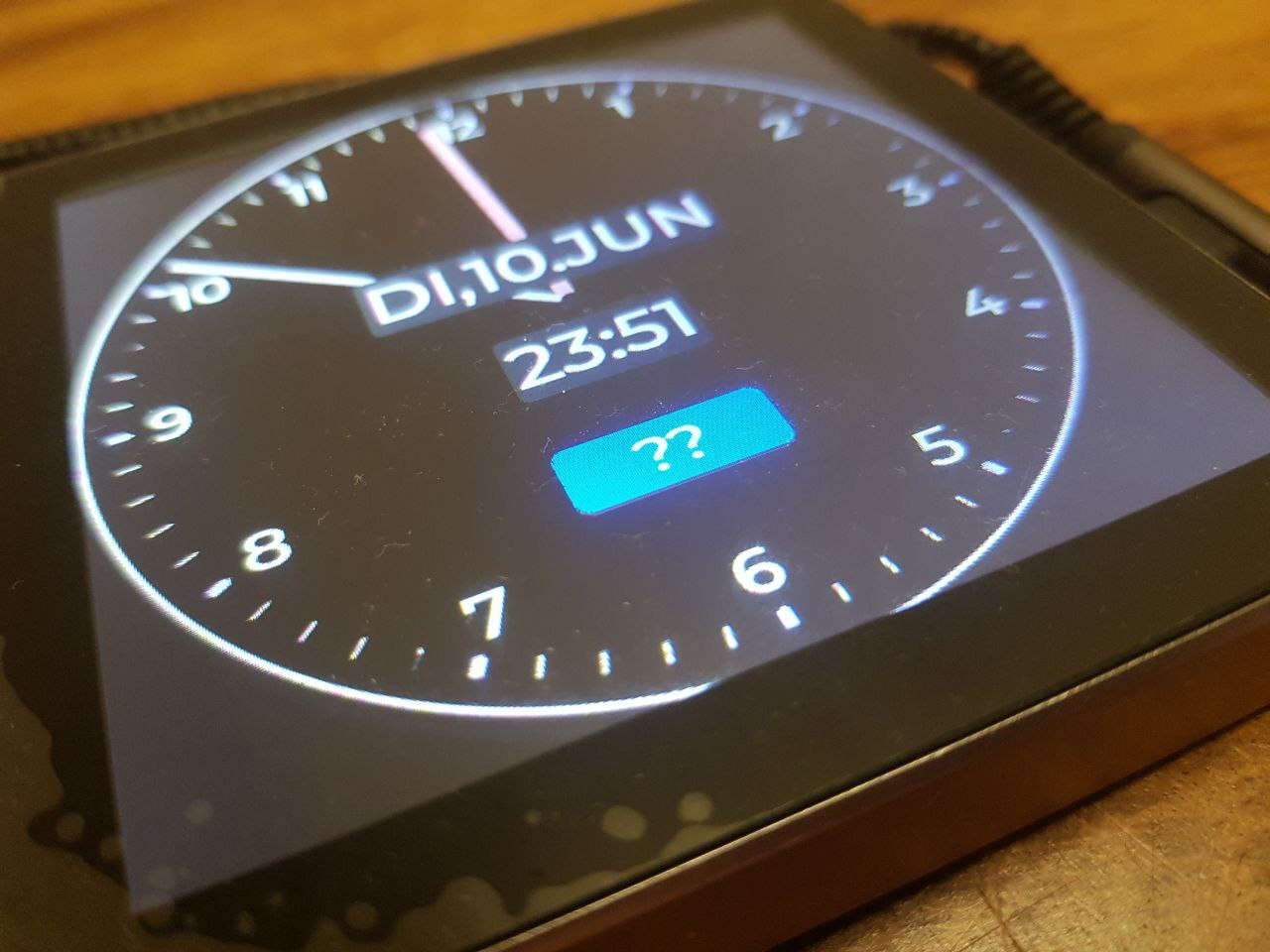

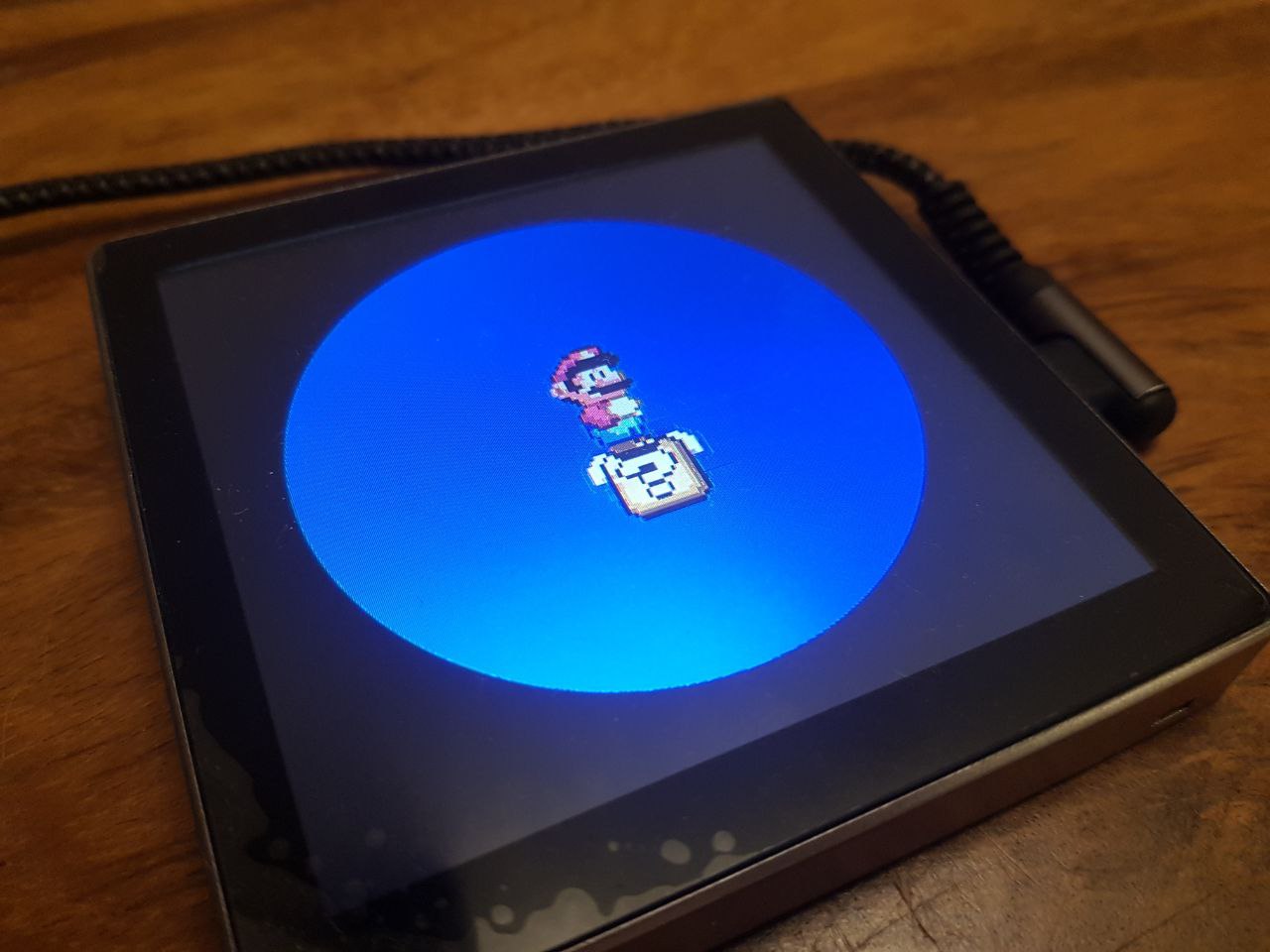

- shows an analog clock and a button that triggers an animation
time:
- platform: homeassistant
id: time_homeassistant
interval:
- interval: 5s
then:
- script.execute: time_update
- interval: 0.05s
then:
- animation.next_frame: my_animation
- lvgl.image.update:
id: img_id
src: my_animation
script:
- id: time_update
then:
- lvgl.indicator.update:
id: minute_hand
value: !lambda |-
return id(time_homeassistant).now().minute;
- lvgl.indicator.update:
id: hour_hand
value: !lambda |-
auto now = id(time_homeassistant).now();
return std::fmod(now.hour, 12) * 60 + now.minute;
- lvgl.label.update:
id: date_label
text: !lambda |-
static const char * const mon_names[] =
{"JAN", "FEB", "MAR", "APR", "MAI", "JUN",
"JUL", "AUG", "SEP", "OKT", "NOV", "DEZ"};
static const char * const day_names[] =
{"SO", "MO", "DI", "MI", "DO", "FR", "SA"};
static char date_buf[16];
auto now = id(time_homeassistant).now();
snprintf(date_buf, sizeof(date_buf), "%s,%2d.%s",
day_names[now.day_of_week-1], now.day_of_month, mon_names[now.month-1]);
return date_buf;
- lvgl.label.update:
id: time_label
text: !lambda |-
static char date_buf[16];
auto now = id(time_homeassistant).now();
snprintf(date_buf, sizeof(date_buf), "%d:%02d",now.hour, now.minute);
return date_buf;
lvgl:
log_level: INFO
color_depth: 16
bg_color: 0x000000
text_font: montserrat_30
align: center
style_definitions:
- id: date_style
text_font: montserrat_40
align: center
text_color: 0xFFFFFF
bg_opa: cover
bg_color: 0x3f3f3f
radius: 4
pad_all: 2
pages:
- id: clock_page
widgets:
- meter:
height: 480
width: 480
align: center
bg_opa: TRANSP
text_color: 0xFFFFFF
scales:
- ticks:
width: 1
count: 61
length: 10
color: 0xFFFFFF
range_from: 0
range_to: 60
angle_range: 360
rotation: 270
indicators:
- line:
id: minute_hand
width: 5
color: 0xE0E0E0
r_mod: -1
- angle_range: 330
rotation: 300
range_from: 1
range_to: 12
ticks:
width: 1
count: 12
length: 1
major:
stride: 1
width: 4
length: 8
color: 0xC0C0F0
label_gap: 20
- angle_range: 360
rotation: 270
range_from: 0
range_to: 720
indicators:
- line:
id: hour_hand
width: 8
color: 0xF0A0A0
r_mod: -20
- label:
styles: date_style
id: date_label
text_font: montserrat_40
y: -40
- label:
id: time_label
styles: date_style
y: +40
- button:
align: CENTER
y: +120
width: 100
height: 40
id: btn_id
checkable: true
widgets:
- label:
align: center
text: "??"
on_short_click:
then:
- lvgl.page.show: animation_page
- id: animation_page
widgets:
- image:
align: CENTER
src: my_animation
id: img_id
radius: 480
clip_corner: true
on_short_click:
then:
- lvgl.page.show: clock_page
animation:
- file: "mario.webp" # https://i.giphy.com/2sdLzwCEu043Jw2EG5.webp
id: my_animation
#resize: 480x480 #this does not fit in the flash
resize: 400x400
type: RGB565
