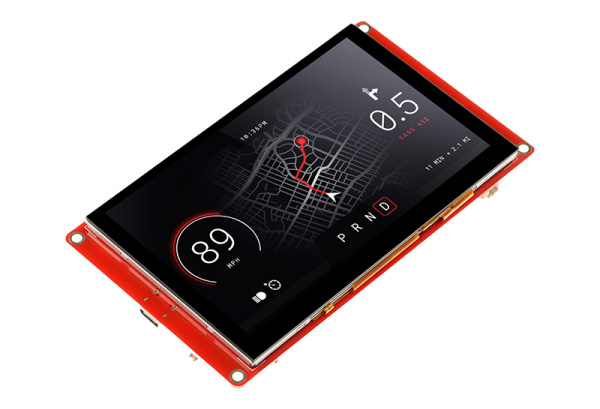

CrowPanel 5.0" HMI ESP32 display (by Elecrow)
Drivers
- Processor: ESP32-S3-WROOM-1-N4R8 (using
esp32-s3-devkitc-1board) - Touchscreen:
gt911 - Display: ILI6122 & ILI5960 (using
rpi_dpi_rgbplaform)
GPIO Pinout
I²C (used for touchscreen)
| Pin | Function |
|---|---|
| GPIO19 | i2c SDA |
| GPIO20 | i2c SCL |
Backlight
| Pin | Function |
|---|---|
| GPIO2 | backlight |
Display
| Pin | Function |
|---|---|
| GPIO40 | de_pin |
| GPIO39 | hsync_pin |
| GPIO41 | vsync_pin |
| GPIO0 | pclk_pin |
Display Data pins
red:
- 45 #r1
- 48 #r2
- 47 #r3
- 21 #r4
- 14 #r5
green:
- 5 #g0
- 6 #g1
- 7 #g2
- 15 #g3
- 16 #g4
- 4 #g5
blue:
- 8 #b1
- 3 #b2
- 46 #b3
- 9 #b4
- 1 #b5
Simple Configuration
esphome:
name: display
platformio_options:
board_build.esp-idf.memory_type: qio_opi
board_build.flash_mode: dio
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
sdkconfig_options:
CONFIG_ESP32S3_DEFAULT_CPU_FREQ_240: y
CONFIG_ESP32S3_DATA_CACHE_64KB: y
CONFIG_SPIRAM_FETCH_INSTRUCTIONS: y
CONFIG_SPIRAM_RODATA: y
psram:
mode: octal
speed: 80MHz
output:
- platform: ledc
pin: 2
frequency: 1220
id: gpio_backlight_pwm
light:
- platform: monochromatic
output: gpio_backlight_pwm
name: Display Backlight
id: back_light
restore_mode: ALWAYS_ON
i2c:
sda: GPIO19
scl: GPIO20
scan: true
touchscreen:
platform: gt911
display:
- platform: rpi_dpi_rgb
id: main_display
color_order: RGB
invert_colors: True
update_interval: 5s
auto_clear_enabled: false
dimensions:
width: 800
height: 480
de_pin: 40
hsync_pin: 39
vsync_pin: 41
pclk_pin: 0
pclk_frequency: 12MHz
data_pins:
red:
- 45 #r1
- 48 #r2
- 47 #r3
- 21 #r4
- 14 #r5
green:
- 5 #g0
- 6 #g1
- 7 #g2
- 15 #g3
- 16 #g4
- 4 #g5
blue:
- 8 #b1
- 3 #b2
- 46 #b3
- 9 #b4
- 1 #b5
lambda: |-
auto red = Color(255, 0, 0);
auto green = Color(0, 255, 0);
auto blue = Color(0, 0, 255);
auto white = Color(255, 255, 255);
id(main_display).filled_circle(50, 50, 40, red);
id(main_display).filled_circle(100, 50, 40, green);
id(main_display).filled_circle(150, 50, 40, blue);
id(main_display).filled_circle(200, 50, 40, white);
# example button
binary_sensor:
- platform: touchscreen
name: Top Left Touch Button
x_min: 10
x_max: 240
y_min: 10
y_max: 90
on_press:
- lambda: |-
ESP_LOGI("btn", "Button pressed");
Advanced Configuration (using LGVL graphics library)
substitutions:
device_name: display
esphome:
name: ${device_name}
platformio_options:
board_build.esp-idf.memory_type: qio_opi
board_build.flash_mode: dio
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
sdkconfig_options:
CONFIG_ESP32S3_DEFAULT_CPU_FREQ_240: y
CONFIG_ESP32S3_DATA_CACHE_64KB: y
CONFIG_SPIRAM_FETCH_INSTRUCTIONS: y
CONFIG_SPIRAM_RODATA: y
psram:
mode: octal
speed: 80MHz
logger:
# Define a PWM output on the ESP32
output:
- platform: ledc
pin: 2
frequency: 1220
id: gpio_backlight_pwm
light:
- platform: monochromatic # Define a monochromatic, dimmable light for the backlight
output: gpio_backlight_pwm
name: ${device_name} Display Backlight
id: back_light
restore_mode: ALWAYS_ON
display:
- platform: rpi_dpi_rgb
id: main_display
color_order: RGB
invert_colors: True
update_interval: never
auto_clear_enabled: false # takes 2.8 seconds to clear the display
dimensions:
width: 800
height: 480
de_pin: 40
hsync_pin: 39
vsync_pin: 41
pclk_pin: 0
pclk_frequency: 12MHz
data_pins:
red:
- 45 #r1
- 48 #r2
- 47 #r3
- 21 #r4
- 14 #r5
green:
- 5 #g0
- 6 #g1
- 7 #g2
- 15 #g3
- 16 #g4
- 4 #g5
blue:
- 8 #b1
- 3 #b2
- 46 #b3
- 9 #b4
- 1 #b5
i2c:
sda: GPIO19
scl: GPIO20
scan: true
touchscreen:
platform: gt911
globals:
- id: random_int_var
type: int
restore_value: no
initial_value: "0"
binary_sensor:
- platform: lvgl
widget: button
name: Button
on_press: # genrate a random number between -10 and +10 and update meter
then:
- lambda: |-
id(random_int_var) = (rand() % 20) - 10;
- lvgl.indicator.update:
id: power_meter_input
value: !lambda return id(random_int_var);
- lvgl.label.update:
id: power_kw
text:
format: "%dkW"
args: ["id(random_int_var)"]
image:
- file: mdi:sun-wireless-outline
id: solar_power_icon
resize: 50x50
lvgl:
color_depth: 16
bg_color: 0
border_width: 0
outline_width: 0
shadow_width: 0
text_font: unscii_16
align: center
style_definitions:
- id: meter_style
border_width: 0
outline_width: 0
align: center
bg_color: 0
- id: title_style
text_font: MONTSERRAT_40
align: center
text_color: 0xFFFFFF
bg_opa: TRANSP
bg_color: 0
radius: 4
pad_all: 2
- id: detail_style
text_font: MONTSERRAT_18
align: center
text_color: 0xFFFFFF
bg_opa: TRANSP
bg_color: 0
radius: 4
pad_all: 2
widgets:
- button: # Button
id: button
height: 100
width: 200
x: 20
y: 20
border_width: 0
outline_width: 0
align: TOP_LEFT
checkable: false
widgets:
- label:
align: center
text: "Button"
- obj: # Meter
height: 240
width: 240
bg_color: 0
border_width: 0
outline_width: 0
shadow_width: 0
pad_all: 4
align: TOP_MID
widgets:
- meter: # Gradient color arc
height: 100%
width: 100%
border_width: 0
outline_width: 0
align: center
bg_color: 0
scales:
angle_range: 180
range_to: 10
range_from: -10
ticks:
count: 0
indicators:
- line:
id: power_meter_input
width: 8
color: 0xFFFFFF
r_mod: 12
value: 50
- arc:
color: 0xFF3000
r_mod: 10
width: 20
start_value: -10
end_value: 0
- arc:
color: 0x00FF00
r_mod: 10
width: 20
start_value: 0
end_value: 10
- arc: # black arc to erase middle part of meter indicator line
height: 160
width: 160
align: center
arc_color: 0x000000
arc_width: 150
start_angle: 0
end_angle: 360
indicator:
arc_width: 150
arc_color: 0x000000
- label: # gauge lower and higher range indicators
styles: detail_style
y: 8
x: -99
text: "-10"
- label:
styles: detail_style
y: 8
x: 99
text: "+10"
- label: # value label
styles: title_style
id: power_kw
y: -10
- image:
src: solar_power_icon
id: img_solar_power
align: center
image_recolor: 0xFFFF00
image_recolor_opa: 100%
y: 50
