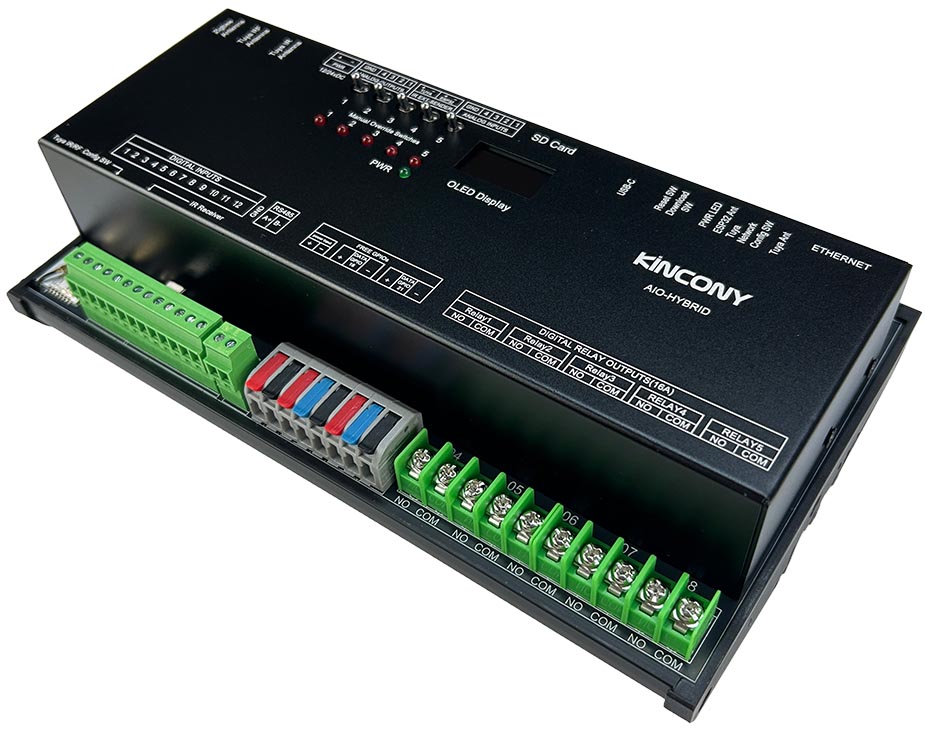

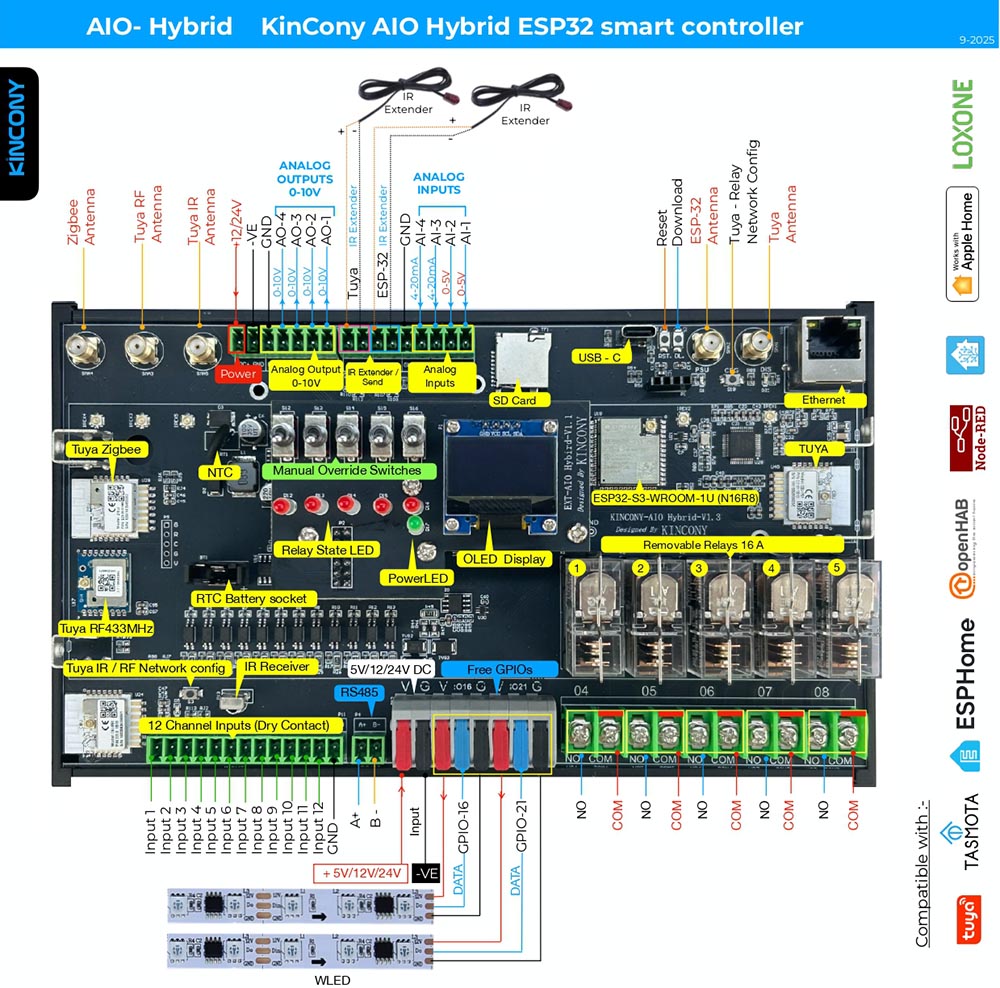

KinCony-AIO Hybrid (ESP32-S3 ALL IN ONE Removable Relay board)
Resources
ESPHome Configuration
Here is an example YAML configuration for the KinCony AIO Hybrid ESP32-S3 ALL IN ONE board.
esphome:
name: aio-hybrid
friendly_name: AIO-hybrid
platformio_options:
board_build.flash_mode: dio
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
sdkconfig_options:
SOC_RMT_SUPPORT_RX_PINGPONG: "n"
# Enable logging
logger:
hardware_uart: USB_SERIAL_JTAG
# Enable Home Assistant API
api:
uart:
- id: uart_zsu
baud_rate: 115200
debug:
direction: BOTH
dummy_receiver: true
after:
timeout: 10ms
sequence:
- lambda: UARTDebug::log_string(direction, bytes);
tx_pin: 15
rx_pin: 48
ethernet:
type: W5500
clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41
interrupt_pin: GPIO2
reset_pin: GPIO1
i2c:
- id: bus_a
sda: 8
scl: 18
scan: true
frequency: 400kHz
pcf8574:
- id: 'pcf8574_hub_output_1' # for output channel 5
i2c_id: bus_a
address: 0x26
- id: 'pcf8574_hub_input_1' # for input channel 1-12
i2c_id: bus_a
address: 0x24
pcf8575: true
switch:
- platform: uart
uart_id: uart_zsu
name: "UART zigbee"
data: [0x55, 0xaa, 0x00, 0x00, 0x04, 0x00, 0x00, 0x00, 0x01, 0x00, 0x04] # ZSU zigbee module
- platform: gpio
name: "AIO_hybrid-output01"
id: "AIO_hybrid_output01"
pin:
pcf8574: pcf8574_hub_output_1
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-output02"
id: "AIO_hybrid_output02"
pin:
pcf8574: pcf8574_hub_output_1
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-output03"
id: "AIO_hybrid_output03"
pin:
pcf8574: pcf8574_hub_output_1
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-output04"
id: "AIO_hybrid_output04"
pin:
pcf8574: pcf8574_hub_output_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-output05"
id: "AIO_hybrid_output05"
pin:
pcf8574: pcf8574_hub_output_1
number: 7
mode: OUTPUT
inverted: true
- platform: template
name: IR-Send1
turn_on_action:
- remote_transmitter.transmit_pronto:
transmitter_id: ir1
data: "0000 006C 0022 0002 015B 00AD 0016 0041 0016 0016 0016 0041 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0041 0016 0575 015B 0057 0016 0E6C"
binary_sensor:
- platform: gpio
name: "AIO_hybrid-input01"
id: "AIO_hybrid_input01"
pin:
pcf8574: pcf8574_hub_input_1
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input02"
id: "AIO_hybrid_input02"
pin:
pcf8574: pcf8574_hub_input_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input03"
id: "AIO_hybrid_input03"
pin:
pcf8574: pcf8574_hub_input_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input04"
id: "AIO_hybrid_input04"
pin:
pcf8574: pcf8574_hub_input_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input05"
id: "AIO_hybrid_input05"
pin:
pcf8574: pcf8574_hub_input_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input06"
id: "AIO_hybrid_input06"
pin:
pcf8574: pcf8574_hub_input_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input07"
id: "AIO_hybrid_input07"
pin:
pcf8574: pcf8574_hub_input_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input08"
id: "AIO_hybrid_input08"
pin:
pcf8574: pcf8574_hub_input_1
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input09"
id: "AIO_hybrid_input09"
pin:
pcf8574: pcf8574_hub_input_1
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input10"
id: "AIO_hybrid_input10"
pin:
pcf8574: pcf8574_hub_input_1
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input11"
id: "AIO_hybrid_input11"
pin:
pcf8574: pcf8574_hub_input_1
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "AIO_hybrid-input12"
id: "AIO_hybrid_input12"
pin:
pcf8574: pcf8574_hub_input_1
number: 11
mode: INPUT
inverted: true
## without resistance on PCB
- platform: gpio
name: "AIO_hybrid-433M"
pin:
number: 40
inverted: false
- platform: gpio
name: "AIO_hybrid-io0"
pin:
number: 0
inverted: false
mcp4728:
- id: dac_output
output:
- platform: mcp4728
id: dimmer1
mcp4728_id: dac_output
channel: A
vref: vdd
power_down: normal # default
- platform: mcp4728
id: dimmer2
mcp4728_id: dac_output
channel: B
vref: vdd
power_down: normal # default
- platform: mcp4728
id: dimmer3
mcp4728_id: dac_output
channel: C
vref: vdd
power_down: normal # default
- platform: mcp4728
id: dimmer4
mcp4728_id: dac_output
channel: D
vref: vdd
power_down: normal # default
light:
- platform: monochromatic
name: "dimmer-1"
output: dimmer1
gamma_correct: 1.0
- platform: monochromatic
name: "dimmer-2"
output: dimmer2
gamma_correct: 1.0
- platform: monochromatic
name: "dimmer-3"
output: dimmer3
gamma_correct: 1.0
- platform: monochromatic
name: "dimmer-4"
output: dimmer4
gamma_correct: 1.0
- platform: esp32_rmt_led_strip
rgb_order: GRB
pin: GPIO21
num_leds: 20
chipset: ws2812
name: "My Light IO21"
font:
- file: "gfonts://Roboto"
id: roboto
size: 20
display:
- platform: ssd1306_i2c
i2c_id: bus_a
model: "SSD1306 128x64"
address: 0x3C
lambda: |-
it.printf(0, 0, id(roboto), "AIO-hybrid");
sensor:
- platform: adc
pin: 5
name: "AIO_hybrid A1 Voltage"
update_interval: 55s
attenuation: 11db
filters:
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 7
name: "AIO_hybrid A2 Voltage"
update_interval: 55s
attenuation: 11db
filters:
# - multiply: 1.51515
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 6
name: "AIO_hybrid A3 Current"
update_interval: 55s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666
- platform: adc
pin: 4
name: "AIO_hybrid A4 Current"
update_interval: 55s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666
remote_receiver:
pin: 17
dump: all
remote_transmitter:
- id: ir1
pin: 14
carrier_duty_percent: 50%
