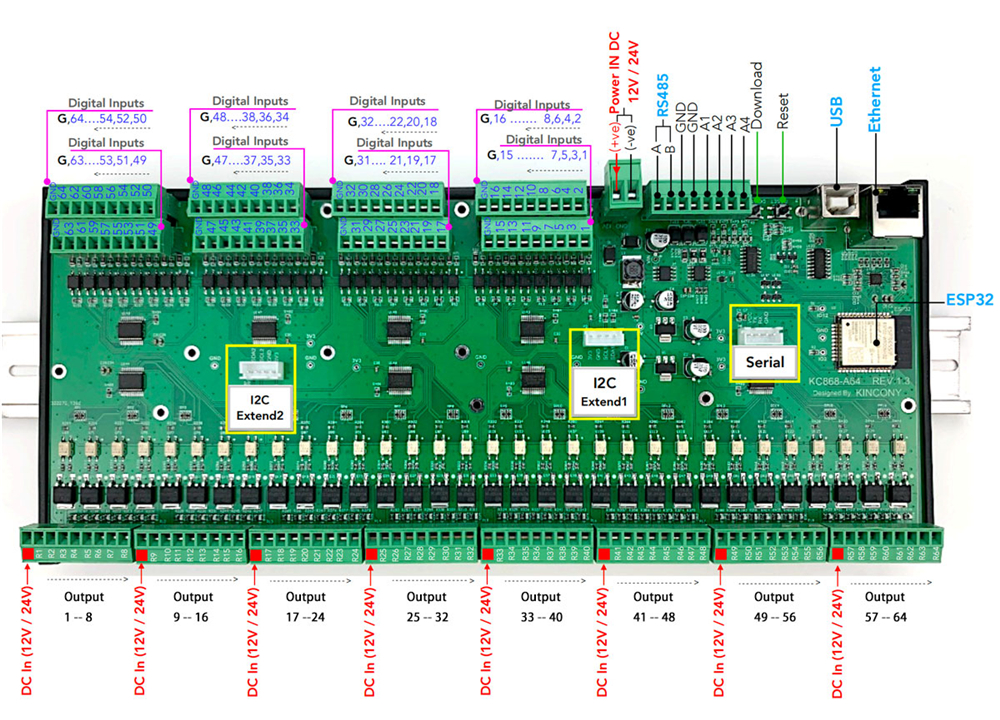

KinCony KC868-A64
GPIO Pinout
| Pin | Function |
|---|---|
| GPIO39 | ANALOG_A1 |
| GPIO34 | ANALOG_A2 |
| GPIO36 | ANALOG_A3 |
| GPIO35 | ANALOG_A4 |
| GPIO5 | IIC_Bus_1_SDA |
| GPIO16 | IIC_Bus_1_SCL |
| GPIO15 | IIC_Bus_2_SDA |
| GPIO4 | IIC_Bus_2_SCL |
| GPIO13 | RS485_RXD |
| GPIO14 | RS485_TXD |
| GPIO32 | Extend_Serial_RXD |
| GPIO33 | Extend_Serial_TXD |
Additional pinout/design details
Basic Configuration
# Basic Config
esphome:
name: KC868-A64
esp32:
board: esp32dev
# Enable logging
logger:
# Enable Home Assistant API
api:
# Example configuration entry
i2c:
- id: bus_a
sda: 5
scl: 16
scan: true
frequency: 400kHz
- id: bus_b
sda: 15
scl: 4
scan: true
frequency: 400kHz
# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0
# Example configuration entry
pcf8574:
- id: "pcf8574_hub_out_1" # for output channel 1-16
i2c_id: bus_a
address: 0x24
pcf8575: true
- id: "pcf8574_hub_out_2" # for output channel 17-32
i2c_id: bus_a
address: 0x25
pcf8575: true
- id: "pcf8574_hub_out_3" # for output channel 33-48
i2c_id: bus_a
address: 0x21
pcf8575: true
- id: "pcf8574_hub_out_4" # for output channel 49-64
i2c_id: bus_a
address: 0x22
pcf8575: true
- id: "pcf8574_hub_in_1" # for a64--input channel 1-16
i2c_id: bus_b
address: 0x24
pcf8575: true
- id: "pcf8574_hub_in_2" # for a64--input channel 17-32
i2c_id: bus_b
address: 0x25
pcf8575: true
- id: "pcf8574_hub_in_3" # for a64--input channel 33-48
i2c_id: bus_b
address: 0x21
pcf8575: true
- id: "pcf8574_hub_in_4" # for a64--input channel 49-64
i2c_id: bus_b
address: 0x22
pcf8575: true
# Individual outputs
switch:
- platform: gpio
name: "a64--light1"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light9"
pin:
pcf8574: pcf8574_hub_out_1
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light10"
pin:
pcf8574: pcf8574_hub_out_1
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light11"
pin:
pcf8574: pcf8574_hub_out_1
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light12"
pin:
pcf8574: pcf8574_hub_out_1
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light13"
pin:
pcf8574: pcf8574_hub_out_1
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light14"
pin:
pcf8574: pcf8574_hub_out_1
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light15"
pin:
pcf8574: pcf8574_hub_out_1
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light16"
pin:
pcf8574: pcf8574_hub_out_1
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light17"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light18"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light19"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light20"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light21"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light22"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light23"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light24"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light25"
pin:
pcf8574: pcf8574_hub_out_2
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light26"
pin:
pcf8574: pcf8574_hub_out_2
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light27"
pin:
pcf8574: pcf8574_hub_out_2
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light28"
pin:
pcf8574: pcf8574_hub_out_2
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light29"
pin:
pcf8574: pcf8574_hub_out_2
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light30"
pin:
pcf8574: pcf8574_hub_out_2
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light31"
pin:
pcf8574: pcf8574_hub_out_2
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light32"
pin:
pcf8574: pcf8574_hub_out_2
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light33"
pin:
pcf8574: pcf8574_hub_out_3
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light34"
pin:
pcf8574: pcf8574_hub_out_3
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light35"
pin:
pcf8574: pcf8574_hub_out_3
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light36"
pin:
pcf8574: pcf8574_hub_out_3
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light37"
pin:
pcf8574: pcf8574_hub_out_3
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light38"
pin:
pcf8574: pcf8574_hub_out_3
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light39"
pin:
pcf8574: pcf8574_hub_out_3
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light40"
pin:
pcf8574: pcf8574_hub_out_3
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light41"
pin:
pcf8574: pcf8574_hub_out_3
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light42"
pin:
pcf8574: pcf8574_hub_out_3
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light43"
pin:
pcf8574: pcf8574_hub_out_3
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light44"
pin:
pcf8574: pcf8574_hub_out_3
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light45"
pin:
pcf8574: pcf8574_hub_out_3
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light46"
pin:
pcf8574: pcf8574_hub_out_3
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light47"
pin:
pcf8574: pcf8574_hub_out_3
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light48"
pin:
pcf8574: pcf8574_hub_out_3
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light49"
pin:
pcf8574: pcf8574_hub_out_4
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light50"
pin:
pcf8574: pcf8574_hub_out_4
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light51"
pin:
pcf8574: pcf8574_hub_out_4
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light52"
pin:
pcf8574: pcf8574_hub_out_4
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light53"
pin:
pcf8574: pcf8574_hub_out_4
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light54"
pin:
pcf8574: pcf8574_hub_out_4
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light55"
pin:
pcf8574: pcf8574_hub_out_4
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light56"
pin:
pcf8574: pcf8574_hub_out_4
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light57"
pin:
pcf8574: pcf8574_hub_out_4
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light58"
pin:
pcf8574: pcf8574_hub_out_4
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light59"
pin:
pcf8574: pcf8574_hub_out_4
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light60"
pin:
pcf8574: pcf8574_hub_out_4
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light61"
pin:
pcf8574: pcf8574_hub_out_4
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light62"
pin:
pcf8574: pcf8574_hub_out_4
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light63"
pin:
pcf8574: pcf8574_hub_out_4
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "a64--light64"
pin:
pcf8574: pcf8574_hub_out_4
number: 15
mode: OUTPUT
inverted: true
# Individual inputs
binary_sensor:
- platform: gpio
name: "a64--input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input9"
pin:
pcf8574: pcf8574_hub_in_1
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input10"
pin:
pcf8574: pcf8574_hub_in_1
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input11"
pin:
pcf8574: pcf8574_hub_in_1
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input12"
pin:
pcf8574: pcf8574_hub_in_1
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input13"
pin:
pcf8574: pcf8574_hub_in_1
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input14"
pin:
pcf8574: pcf8574_hub_in_1
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input15"
pin:
pcf8574: pcf8574_hub_in_1
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input16"
pin:
pcf8574: pcf8574_hub_in_1
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input17"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input18"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input19"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input20"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input21"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input22"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input23"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input24"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input25"
pin:
pcf8574: pcf8574_hub_in_2
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input26"
pin:
pcf8574: pcf8574_hub_in_2
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input27"
pin:
pcf8574: pcf8574_hub_in_2
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input28"
pin:
pcf8574: pcf8574_hub_in_2
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input29"
pin:
pcf8574: pcf8574_hub_in_2
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input30"
pin:
pcf8574: pcf8574_hub_in_2
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input31"
pin:
pcf8574: pcf8574_hub_in_2
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input32"
pin:
pcf8574: pcf8574_hub_in_2
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input33"
pin:
pcf8574: pcf8574_hub_in_3
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input34"
pin:
pcf8574: pcf8574_hub_in_3
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input35"
pin:
pcf8574: pcf8574_hub_in_3
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input36"
pin:
pcf8574: pcf8574_hub_in_3
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input37"
pin:
pcf8574: pcf8574_hub_in_3
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input38"
pin:
pcf8574: pcf8574_hub_in_3
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input39"
pin:
pcf8574: pcf8574_hub_in_3
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input40"
pin:
pcf8574: pcf8574_hub_in_3
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input41"
pin:
pcf8574: pcf8574_hub_in_3
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input42"
pin:
pcf8574: pcf8574_hub_in_3
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input43"
pin:
pcf8574: pcf8574_hub_in_3
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input44"
pin:
pcf8574: pcf8574_hub_in_3
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input45"
pin:
pcf8574: pcf8574_hub_in_3
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input46"
pin:
pcf8574: pcf8574_hub_in_3
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input47"
pin:
pcf8574: pcf8574_hub_in_3
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input48"
pin:
pcf8574: pcf8574_hub_in_3
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input49"
pin:
pcf8574: pcf8574_hub_in_4
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input50"
pin:
pcf8574: pcf8574_hub_in_4
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input51"
pin:
pcf8574: pcf8574_hub_in_4
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input52"
pin:
pcf8574: pcf8574_hub_in_4
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input53"
pin:
pcf8574: pcf8574_hub_in_4
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input54"
pin:
pcf8574: pcf8574_hub_in_4
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input55"
pin:
pcf8574: pcf8574_hub_in_4
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input56"
pin:
pcf8574: pcf8574_hub_in_4
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input57"
pin:
pcf8574: pcf8574_hub_in_4
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input58"
pin:
pcf8574: pcf8574_hub_in_4
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input59"
pin:
pcf8574: pcf8574_hub_in_4
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input60"
pin:
pcf8574: pcf8574_hub_in_4
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input61"
pin:
pcf8574: pcf8574_hub_in_4
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input62"
pin:
pcf8574: pcf8574_hub_in_4
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input63"
pin:
pcf8574: pcf8574_hub_in_4
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "a64--input64"
pin:
pcf8574: pcf8574_hub_in_4
number: 15
mode: INPUT
inverted: true
# Example configuration entry
sensor:
- platform: adc
pin: 39
name: "a64--analog--1"
update_interval: 20s
attenuation: 12db
- platform: adc
pin: 34
name: "a64--analog--2"
update_interval: 20s
attenuation: 12db
- platform: adc
pin: 36
name: "a64--analog--3"
update_interval: 20s
attenuation: 12db
- platform: adc
pin: 35
name: "a64--analog--4"
update_interval: 20s
attenuation: 12db
