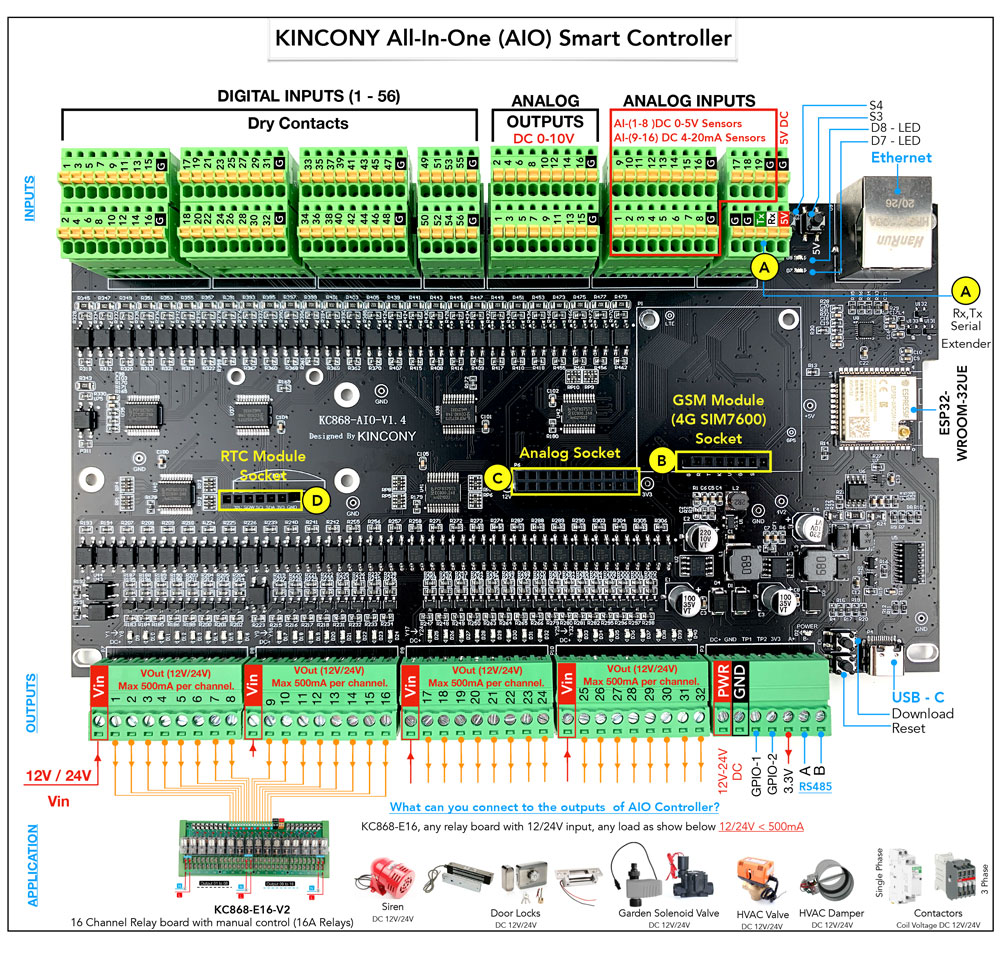

KinCony KC868-AIO
GPIO Pinout
| Pin | Function |
|---|---|
| GPIO36 | ANALOG_A1 |
| GPIO39 | ANALOG_A17 |
| GPIO34 | ANALOG_A18 |
| GPIO35 | ANALOG_A19 |
| GPIO4 | IIC_SDA |
| GPIO16 | IIC_SCL |
| GPIO14 | 1-Wire GPIO |
| GPIO5 | 1-Wire GPIO |
| GPIO32 | RS485_RXD |
| GPIO33 | RS485_TXD |
| GPIO13 | GSM_RXD |
| GPIO15 | GSM_TXD |
Additional pinout/design details
Basic Configuration
# Basic Config
esphome:
name: KC868-AIO
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "D69bY/GXlmjYkovak6WIhgmbOH8vwyqvMxIHBriYoaY="
ota:
password: "9984b688b9646975bfd1b760a9c2df8b"
# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk:
pin: GPIO17
mode: CLK_OUT
phy_addr: 0
i2c:
- id: bus_a
sda: 4
scl: 16
scan: true
# Example configuration entry
pcf8574:
- id: "pcf8574_hub_out_1" # for output channel 1-16
i2c_id: bus_a
address: 0x24
pcf8575: true
- id: "pcf8574_hub_out_2" # for output channel 17-32
i2c_id: bus_a
address: 0x25
pcf8575: true
- id: "pcf8574_hub_out_in_3" # for output channel 33-38 + (input 49-58)
i2c_id: bus_a
address: 0x26
pcf8575: true
- id: "pcf8574_hub_in_1" # for input channel 1-16
i2c_id: bus_a
address: 0x21
pcf8575: true
- id: "pcf8574_hub_in_2" # for input channel 17-32
i2c_id: bus_a
address: 0x22
pcf8575: true
- id: "pcf8574_hub_in_3" # for input channel 33-48
i2c_id: bus_a
address: 0x23
pcf8575: true
# Individual outputs
switch:
- platform: gpio
name: "aio--light1"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light9"
pin:
pcf8574: pcf8574_hub_out_1
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light10"
pin:
pcf8574: pcf8574_hub_out_1
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light11"
pin:
pcf8574: pcf8574_hub_out_1
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light12"
pin:
pcf8574: pcf8574_hub_out_1
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light13"
pin:
pcf8574: pcf8574_hub_out_1
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light14"
pin:
pcf8574: pcf8574_hub_out_1
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light15"
pin:
pcf8574: pcf8574_hub_out_1
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light16"
pin:
pcf8574: pcf8574_hub_out_1
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light17"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light18"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light19"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light20"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light21"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light22"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light23"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light24"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light25"
pin:
pcf8574: pcf8574_hub_out_2
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light26"
pin:
pcf8574: pcf8574_hub_out_2
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light27"
pin:
pcf8574: pcf8574_hub_out_2
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light28"
pin:
pcf8574: pcf8574_hub_out_2
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light29"
pin:
pcf8574: pcf8574_hub_out_2
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light30"
pin:
pcf8574: pcf8574_hub_out_2
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light31"
pin:
pcf8574: pcf8574_hub_out_2
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--light32"
pin:
pcf8574: pcf8574_hub_out_2
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--led-D7"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "aio--led-D8"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 13
mode: OUTPUT
inverted: true
cd74hc4067:
- id: cd74hc4067_1
pin_s0:
pcf8574: pcf8574_hub_out_in_3
number: 8
mode: OUTPUT
inverted: true
pin_s1:
pcf8574: pcf8574_hub_out_in_3
number: 9
mode: OUTPUT
inverted: true
pin_s2:
pcf8574: pcf8574_hub_out_in_3
number: 10
mode: OUTPUT
inverted: true
pin_s3:
pcf8574: pcf8574_hub_out_in_3
number: 11
mode: OUTPUT
inverted: true
one_wire:
- pin: 5
update_interval: 60s
# Example configuration entry
sensor:
- platform: dallas_temp
address: 0xec0921405caae128
name: "aio--ds18b20"
- platform: adc
pin: 36
id: adc36
update_interval: never
attenuation: 12db
- platform: adc
name: "aio--AI-17"
pin: 39
id: adc39
update_interval: 5s
attenuation: 12db
- platform: adc
pin: 34
name: "aio--AI-18"
id: adc34
update_interval: 5s
attenuation: 12db
- platform: adc
pin: 35
name: "aio--AI-19"
id: adc35
update_interval: 5s
attenuation: 12db
- platform: cd74hc4067
name: "aio--AI-16"
id: ai1
number: 0
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-15"
id: ai2
number: 1
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-14"
id: ai3
number: 2
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-13"
id: ai4
number: 3
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-12"
id: ai5
number: 4
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-11"
id: ai6
number: 5
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-10"
id: ai7
number: 6
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-9"
id: ai8
number: 7
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-8"
id: ai9
number: 8
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-7"
id: ai10
number: 9
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-6"
id: ai11
number: 10
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-5"
id: ai12
number: 11
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-4"
id: ai13
number: 12
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-3"
id: ai14
number: 13
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-2"
id: ai15
number: 14
sensor: adc36
update_interval: 5s
- platform: cd74hc4067
name: "aio--AI-1"
id: ai16
number: 15
sensor: adc36
update_interval: 5s
# Individual inputs
binary_sensor:
- platform: gpio
name: "aio--input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input9"
pin:
pcf8574: pcf8574_hub_in_1
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input10"
pin:
pcf8574: pcf8574_hub_in_1
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input11"
pin:
pcf8574: pcf8574_hub_in_1
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input12"
pin:
pcf8574: pcf8574_hub_in_1
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input13"
pin:
pcf8574: pcf8574_hub_in_1
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input14"
pin:
pcf8574: pcf8574_hub_in_1
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input15"
pin:
pcf8574: pcf8574_hub_in_1
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input16"
pin:
pcf8574: pcf8574_hub_in_1
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input17"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input18"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input19"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input20"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input21"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input22"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input23"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input24"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input25"
pin:
pcf8574: pcf8574_hub_in_2
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input26"
pin:
pcf8574: pcf8574_hub_in_2
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input27"
pin:
pcf8574: pcf8574_hub_in_2
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input28"
pin:
pcf8574: pcf8574_hub_in_2
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input29"
pin:
pcf8574: pcf8574_hub_in_2
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input30"
pin:
pcf8574: pcf8574_hub_in_2
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input31"
pin:
pcf8574: pcf8574_hub_in_2
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input32"
pin:
pcf8574: pcf8574_hub_in_2
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input33"
pin:
pcf8574: pcf8574_hub_in_3
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input34"
pin:
pcf8574: pcf8574_hub_in_3
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input35"
pin:
pcf8574: pcf8574_hub_in_3
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input36"
pin:
pcf8574: pcf8574_hub_in_3
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input37"
pin:
pcf8574: pcf8574_hub_in_3
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input38"
pin:
pcf8574: pcf8574_hub_in_3
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input39"
pin:
pcf8574: pcf8574_hub_in_3
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input40"
pin:
pcf8574: pcf8574_hub_in_3
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input41"
pin:
pcf8574: pcf8574_hub_in_3
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input42"
pin:
pcf8574: pcf8574_hub_in_3
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input43"
pin:
pcf8574: pcf8574_hub_in_3
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input44"
pin:
pcf8574: pcf8574_hub_in_3
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input45"
pin:
pcf8574: pcf8574_hub_in_3
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input46"
pin:
pcf8574: pcf8574_hub_in_3
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input47"
pin:
pcf8574: pcf8574_hub_in_3
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input48"
pin:
pcf8574: pcf8574_hub_in_3
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input49"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input50"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input51"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input52"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input53"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input54"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input55"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input56"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input57-s3"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "aio--input58-s4"
pin:
pcf8574: pcf8574_hub_out_in_3
number: 15
mode: INPUT
inverted: true
pca9685:
id: "pca9685_hub"
frequency: 500
output:
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM0"
channel: 0
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM1"
channel: 1
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM2"
channel: 2
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM3"
channel: 3
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM4"
channel: 4
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM5"
channel: 5
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM6"
channel: 6
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM7"
channel: 7
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM8"
channel: 8
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM9"
channel: 9
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM10"
channel: 10
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM11"
channel: 11
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM12"
channel: 12
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM13"
channel: 13
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM14"
channel: 14
- platform: pca9685
pca9685_id: "pca9685_hub"
id: "PWM15"
channel: 15
light:
- platform: monochromatic
name: "aio-Color-LED-1"
output: PWM0
- platform: monochromatic
name: "aio-Color-LED-2"
output: PWM1
- platform: monochromatic
name: "aio-Color-LED-3"
output: PWM2
- platform: monochromatic
name: "aio-Color-LED-4"
output: PWM3
- platform: monochromatic
name: "aio-Color-LED-5"
output: PWM4
- platform: monochromatic
name: "aio-Color-LED-6"
output: PWM5
- platform: monochromatic
name: "aio-Color-LED-7"
output: PWM6
- platform: monochromatic
name: "aio-Color-LED-8"
output: PWM7
- platform: monochromatic
name: "aio-Color-LED-9"
output: PWM8
- platform: monochromatic
name: "aio-Color-LED-10"
output: PWM9
- platform: monochromatic
name: "aio-Color-LED-11"
output: PWM10
- platform: monochromatic
name: "aio-Color-LED-12"
output: PWM11
- platform: monochromatic
name: "aio-Color-LED-13"
output: PWM12
- platform: monochromatic
name: "aio-Color-LED-14"
output: PWM13
- platform: monochromatic
name: "aio-Color-LED-15"
output: PWM14
- platform: monochromatic
name: "aio-Color-LED-16"
output: PWM15
- platform: rgbw
name: "aio-rgbw"
red: PWM1
green: PWM2
blue: PWM3
white: PWM4
