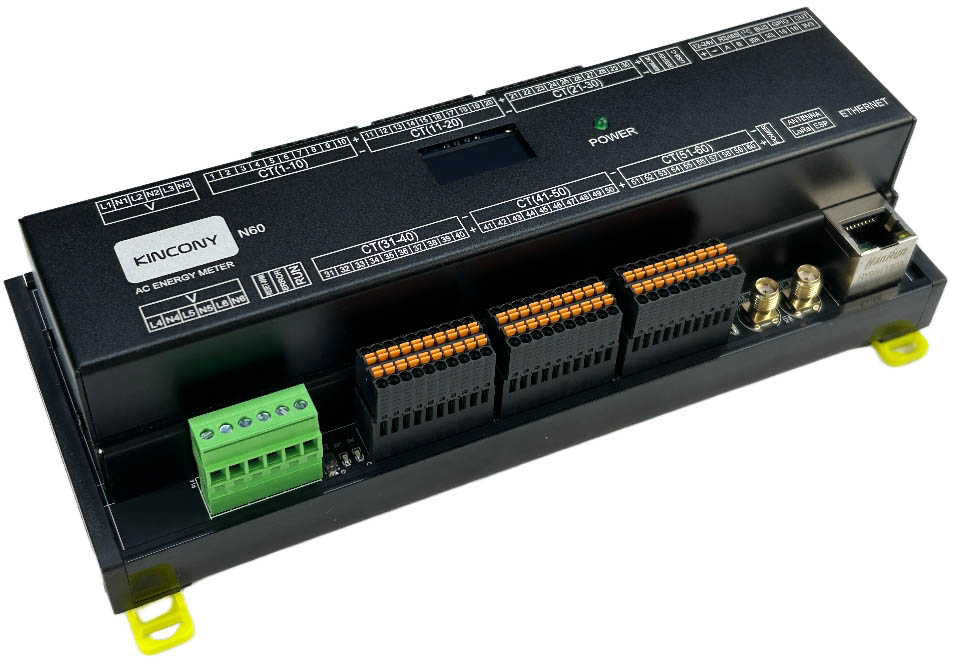

KinCony-N60 AC energy meter
Resources
ESPHome Configuration
Here is an example YAML configuration for the KinCony N60 AC energy meter board.
esphome:
name: n60
friendly_name: n60
esp32:
board: esp32-s3-devkitc-1
framework:
type: arduino
# Enable logging
logger:
# baud_rate: 0
# Enable Home Assistant API
api:
ota:
platform: esphome
ethernet:
type: W5500
clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41
interrupt_pin: GPIO2
reset_pin: GPIO1
uart:
rx_pin: 9
tx_pin: 10
baud_rate: 115200
stop_bits: 1
data_bits: 8
parity: NONE
text_sensor:
- platform: ethernet_info
ip_address:
name: ESP IP Address
id: eth_ip
address_0:
name: ESP IP Address 0
address_1:
name: ESP IP Address 1
address_2:
name: ESP IP Address 2
address_3:
name: ESP IP Address 3
address_4:
name: ESP IP Address 4
dns_address:
name: ESP DNS Address
mac_address:
name: ESP MAC Address
font:
- file: "gfonts://Roboto"
id: roboto
size: 15
i2c:
sda: 18
scl: 17
display:
- platform: ssd1306_i2c
model: "SSD1306 128x64"
address: 0x3C
lambda: |-
it.printf(0, 15, id(roboto), "IP: %s", id(eth_ip).state.c_str());
modbus:
modbus_controller:
- address: 1
update_interval: 5s
sensor:
- platform: modbus_controller
address: 100
register_type: holding
name: bl0910_1_current_1
id: n60_1_current_1
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 102
register_type: holding
name: bl0910_1_current_2
id: n60_1_current_2
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 104
register_type: holding
name: bl0910_1_current_3
id: n60_1_current_3
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 106
register_type: holding
name: bl0910_1_current_4
id: n60_1_current_4
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 108
register_type: holding
name: bl0910_1_current_5
id: n60_1_current_5
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 110
register_type: holding
name: bl0910_1_current_6
id: n60_1_current_6
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 112
register_type: holding
name: bl0910_1_current_7
id: n60_1_current_7
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 114
register_type: holding
name: bl0910_1_current_8
id: n60_1_current_8
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 116
register_type: holding
name: bl0910_1_current_9
id: n60_1_current_9
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 118
register_type: holding
name: bl0910_1_current_10
id: n60_1_current_10
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 120
register_type: holding
name: bl0910_1_power_1
id: n60_1_watt_1
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 122
register_type: holding
name: bl0910_1_power_2
id: n60_1_watt_2
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 124
register_type: holding
name: bl0910_1_power_3
id: n60_1_watt_3
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 126
register_type: holding
name: bl0910_1_power_4
id: n60_1_watt_4
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 128
register_type: holding
name: bl0910_1_power_5
id: n60_1_watt_5
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 130
register_type: holding
name: bl0910_1_power_6
id: n60_1_watt_6
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 132
register_type: holding
name: bl0910_1_power_7
id: n60_1_watt_7
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 134
register_type: holding
name: bl0910_1_power_8
id: n60_1_watt_8
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 136
register_type: holding
name: bl0910_1_power_9
id: n60_1_watt_9
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 138
register_type: holding
name: bl0910_1_power_10
id: n60_1_watt_10
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 140
register_type: holding
name: bl0910_1_energy_1
id: n60_1_energy_1
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 142
register_type: holding
name: bl0910_1_energy_2
id: n60_1_energy_2
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 144
register_type: holding
name: bl0910_1_energy_3
id: n60_1_energy_3
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 146
register_type: holding
name: bl0910_1_energy_4
id: n60_1_energy_4
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 148
register_type: holding
name: bl0910_1_energy_5
id: n60_1_energy_5
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 150
register_type: holding
name: bl0910_1_energy_6
id: n60_1_energy_6
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 152
register_type: holding
name: bl0910_1_energy_7
id: n60_1_energy_7
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 154
register_type: holding
name: bl0910_1_energy_8
id: n60_1_energy_8
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 156
register_type: holding
name: bl0910_1_energy_9
id: n60_1_energy_9
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 158
register_type: holding
name: bl0910_1_energy_10
id: n60_1_energy_10
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 160
register_type: holding
name: bl0910_1_energy_sum
id: n60_1_energy_sum
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
address: 162
register_type: holding
name: bl0910_1_voltage
id: n60_1_voltage
unit_of_measurement: V
device_class: voltage
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 163
register_type: holding
name: bl0910_1_frequency
id: n60_1_period
unit_of_measurement: Hz
device_class: frequency
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 164
register_type: holding
name: bl0910_1_tps1
id: n60_1_tps_1
unit_of_measurement: °C
device_class: temperature
accuracy_decimals: 1
value_type: FP32_R
- platform: modbus_controller
address: 200
register_type: holding
name: bl0910_2_current_1
id: n60_2_current_1
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 202
register_type: holding
name: bl0910_2_current_2
id: n60_2_current_2
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 204
register_type: holding
name: bl0910_2_current_3
id: n60_2_current_3
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 206
register_type: holding
name: bl0910_2_current_4
id: n60_2_current_4
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 208
register_type: holding
name: bl0910_2_current_5
id: n60_2_current_5
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 210
register_type: holding
name: bl0910_2_current_6
id: n60_2_current_6
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 212
register_type: holding
name: bl0910_2_current_7
id: n60_2_current_7
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 214
register_type: holding
name: bl0910_2_current_8
id: n60_2_current_8
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 216
register_type: holding
name: bl0910_2_current_9
id: n60_2_current_9
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 218
register_type: holding
name: bl0910_2_current_10
id: n60_2_current_10
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 220
register_type: holding
name: bl0910_2_power_1
id: n60_2_watt_1
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 222
register_type: holding
name: bl0910_2_power_2
id: n60_2_watt_2
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 224
register_type: holding
name: bl0910_2_power_3
id: n60_2_watt_3
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 226
register_type: holding
name: bl0910_2_power_4
id: n60_2_watt_4
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 228
register_type: holding
name: bl0910_2_power_5
id: n60_2_watt_5
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 230
register_type: holding
name: bl0910_2_power_6
id: n60_2_watt_6
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 232
register_type: holding
name: bl0910_2_power_7
id: n60_2_watt_7
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 234
register_type: holding
name: bl0910_2_power_8
id: n60_2_watt_8
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 236
register_type: holding
name: bl0910_2_power_9
id: n60_2_watt_9
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 238
register_type: holding
name: bl0910_2_power_10
id: n60_2_watt_10
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 240
register_type: holding
name: bl0910_2_energy_1
id: n60_2_energy_1
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 242
register_type: holding
name: bl0910_2_energy_2
id: n60_2_energy_2
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 244
register_type: holding
name: bl0910_2_energy_3
id: n60_2_energy_3
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 246
register_type: holding
name: bl0910_2_energy_4
id: n60_2_energy_4
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 248
register_type: holding
name: bl0910_2_energy_5
id: n60_2_energy_5
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 250
register_type: holding
name: bl0910_2_energy_6
id: n60_2_energy_6
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 252
register_type: holding
name: bl0910_2_energy_7
id: n60_2_energy_7
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 254
register_type: holding
name: bl0910_2_energy_8
id: n60_2_energy_8
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 256
register_type: holding
name: bl0910_2_energy_9
id: n60_2_energy_9
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 258
register_type: holding
name: bl0910_2_energy_10
id: n60_2_energy_10
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 260
register_type: holding
name: bl0910_2_energy_sum
id: n60_2_energy_sum
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 262
register_type: holding
name: bl0910_2_voltage
id: n60_2_voltage
unit_of_measurement: V
device_class: voltage
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 263
register_type: holding
name: bl0910_2_frequency
id: n60_2_period
unit_of_measurement: Hz
device_class: frequency
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 264
register_type: holding
name: bl0910_2_tps1
id: n60_2_tps_1
unit_of_measurement: "°C"
device_class: temperature
accuracy_decimals: 1
value_type: FP32_R
- platform: modbus_controller
address: 300
register_type: holding
name: bl0910_3_current_1
id: n60_3_current_1
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 302
register_type: holding
name: bl0910_3_current_2
id: n60_3_current_2
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 304
register_type: holding
name: bl0910_3_current_3
id: n60_3_current_3
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 306
register_type: holding
name: bl0910_3_current_4
id: n60_3_current_4
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 308
register_type: holding
name: bl0910_3_current_5
id: n60_3_current_5
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 310
register_type: holding
name: bl0910_3_current_6
id: n60_3_current_6
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 312
register_type: holding
name: bl0910_3_current_7
id: n60_3_current_7
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 314
register_type: holding
name: bl0910_3_current_8
id: n60_3_current_8
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 316
register_type: holding
name: bl0910_3_current_9
id: n60_3_current_9
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 318
register_type: holding
name: bl0910_3_current_10
id: n60_3_current_10
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 320
register_type: holding
name: bl0910_3_power_1
id: n60_3_watt_1
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 322
register_type: holding
name: bl0910_3_power_2
id: n60_3_watt_2
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 324
register_type: holding
name: bl0910_3_power_3
id: n60_3_watt_3
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 326
register_type: holding
name: bl0910_3_power_4
id: n60_3_watt_4
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 328
register_type: holding
name: bl0910_3_power_5
id: n60_3_watt_5
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 330
register_type: holding
name: bl0910_3_power_6
id: n60_3_watt_6
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 332
register_type: holding
name: bl0910_3_power_7
id: n60_3_watt_7
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 334
register_type: holding
name: bl0910_3_power_8
id: n60_3_watt_8
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 336
register_type: holding
name: bl0910_3_power_9
id: n60_3_watt_9
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 338
register_type: holding
name: bl0910_3_power_10
id: n60_3_watt_10
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 340
register_type: holding
name: bl0910_3_energy_1
id: n60_3_energy_1
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 342
register_type: holding
name: bl0910_3_energy_2
id: n60_3_energy_2
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 344
register_type: holding
name: bl0910_3_energy_3
id: n60_3_energy_3
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 346
register_type: holding
name: bl0910_3_energy_4
id: n60_3_energy_4
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 348
register_type: holding
name: bl0910_3_energy_5
id: n60_3_energy_5
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 350
register_type: holding
name: bl0910_3_energy_6
id: n60_3_energy_6
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 352
register_type: holding
name: bl0910_3_energy_7
id: n60_3_energy_7
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 354
register_type: holding
name: bl0910_3_energy_8
id: n60_3_energy_8
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 356
register_type: holding
name: bl0910_3_energy_9
id: n60_3_energy_9
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 358
register_type: holding
name: bl0910_3_energy_10
id: n60_3_energy_10
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 360
register_type: holding
name: bl0910_3_energy_sum
id: n60_3_energy_sum
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 362
register_type: holding
name: bl0910_3_voltage
id: n60_3_voltage
unit_of_measurement: V
device_class: voltage
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 363
register_type: holding
name: bl0910_3_frequency
id: n60_3_period
unit_of_measurement: Hz
device_class: frequency
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 364
register_type: holding
name: bl0910_3_tps1
id: n60_3_tps_1
unit_of_measurement: "°C"
device_class: temperature
accuracy_decimals: 1
value_type: FP32_R
- platform: modbus_controller
address: 400
register_type: holding
name: bl0910_4_current_1
id: n60_4_current_1
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 402
register_type: holding
name: bl0910_4_current_2
id: n60_4_current_2
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 404
register_type: holding
name: bl0910_4_current_3
id: n60_4_current_3
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 406
register_type: holding
name: bl0910_4_current_4
id: n60_4_current_4
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 408
register_type: holding
name: bl0910_4_current_5
id: n60_4_current_5
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 410
register_type: holding
name: bl0910_4_current_6
id: n60_4_current_6
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 412
register_type: holding
name: bl0910_4_current_7
id: n60_4_current_7
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 414
register_type: holding
name: bl0910_4_current_8
id: n60_4_current_8
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 416
register_type: holding
name: bl0910_4_current_9
id: n60_4_current_9
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 418
register_type: holding
name: bl0910_4_current_10
id: n60_4_current_10
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 420
register_type: holding
name: bl0910_4_power_1
id: n60_4_watt_1
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 422
register_type: holding
name: bl0910_4_power_2
id: n60_4_watt_2
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 424
register_type: holding
name: bl0910_4_power_3
id: n60_4_watt_3
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 426
register_type: holding
name: bl0910_4_power_4
id: n60_4_watt_4
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 428
register_type: holding
name: bl0910_4_power_5
id: n60_4_watt_5
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 430
register_type: holding
name: bl0910_4_power_6
id: n60_4_watt_6
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 432
register_type: holding
name: bl0910_4_power_7
id: n60_4_watt_7
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 434
register_type: holding
name: bl0910_4_power_8
id: n60_4_watt_8
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 436
register_type: holding
name: bl0910_4_power_9
id: n60_4_watt_9
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 438
register_type: holding
name: bl0910_4_power_10
id: n60_4_watt_10
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 440
register_type: holding
name: bl0910_4_energy_1
id: n60_4_energy_1
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 442
register_type: holding
name: bl0910_4_energy_2
id: n60_4_energy_2
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 444
register_type: holding
name: bl0910_4_energy_3
id: n60_4_energy_3
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 446
register_type: holding
name: bl0910_4_energy_4
id: n60_4_energy_4
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 448
register_type: holding
name: bl0910_4_energy_5
id: n60_4_energy_5
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 450
register_type: holding
name: bl0910_4_energy_6
id: n60_4_energy_6
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 452
register_type: holding
name: bl0910_4_energy_7
id: n60_4_energy_7
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 454
register_type: holding
name: bl0910_4_energy_8
id: n60_4_energy_8
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 456
register_type: holding
name: bl0910_4_energy_9
id: n60_4_energy_9
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 458
register_type: holding
name: bl0910_4_energy_10
id: n60_4_energy_10
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 460
register_type: holding
name: bl0910_4_energy_sum
id: n60_4_energy_sum
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 462
register_type: holding
name: bl0910_4_voltage
id: n60_4_voltage
unit_of_measurement: V
device_class: voltage
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 463
register_type: holding
name: bl0910_4_frequency
id: n60_4_period
unit_of_measurement: Hz
device_class: frequency
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 464
register_type: holding
name: bl0910_4_tps1
id: n60_4_tps_1
unit_of_measurement: "°C"
device_class: temperature
accuracy_decimals: 1
value_type: FP32_R
- platform: modbus_controller
address: 500
register_type: holding
name: bl0910_5_current_1
id: n60_5_current_1
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 502
register_type: holding
name: bl0910_5_current_2
id: n60_5_current_2
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 504
register_type: holding
name: bl0910_5_current_3
id: n60_5_current_3
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 506
register_type: holding
name: bl0910_5_current_4
id: n60_5_current_4
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 508
register_type: holding
name: bl0910_5_current_5
id: n60_5_current_5
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 510
register_type: holding
name: bl0910_5_current_6
id: n60_5_current_6
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 512
register_type: holding
name: bl0910_5_current_7
id: n60_5_current_7
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 514
register_type: holding
name: bl0910_5_current_8
id: n60_5_current_8
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 516
register_type: holding
name: bl0910_5_current_9
id: n60_5_current_9
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 518
register_type: holding
name: bl0910_5_current_10
id: n60_5_current_10
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 520
register_type: holding
name: bl0910_5_power_1
id: n60_5_watt_1
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 522
register_type: holding
name: bl0910_5_power_2
id: n60_5_watt_2
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 524
register_type: holding
name: bl0910_5_power_3
id: n60_5_watt_3
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 526
register_type: holding
name: bl0910_5_power_4
id: n60_5_watt_4
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 528
register_type: holding
name: bl0910_5_power_5
id: n60_5_watt_5
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 530
register_type: holding
name: bl0910_5_power_6
id: n60_5_watt_6
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 532
register_type: holding
name: bl0910_5_power_7
id: n60_5_watt_7
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 534
register_type: holding
name: bl0910_5_power_8
id: n60_5_watt_8
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 536
register_type: holding
name: bl0910_5_power_9
id: n60_5_watt_9
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 538
register_type: holding
name: bl0910_5_power_10
id: n60_5_watt_10
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 540
register_type: holding
name: bl0910_5_energy_1
id: n60_5_energy_1
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 542
register_type: holding
name: bl0910_5_energy_2
id: n60_5_energy_2
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 544
register_type: holding
name: bl0910_5_energy_3
id: n60_5_energy_3
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 546
register_type: holding
name: bl0910_5_energy_4
id: n60_5_energy_4
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 548
register_type: holding
name: bl0910_5_energy_5
id: n60_5_energy_5
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 550
register_type: holding
name: bl0910_5_energy_6
id: n60_5_energy_6
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 552
register_type: holding
name: bl0910_5_energy_7
id: n60_5_energy_7
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 554
register_type: holding
name: bl0910_5_energy_8
id: n60_5_energy_8
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 556
register_type: holding
name: bl0910_5_energy_9
id: n60_5_energy_9
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 558
register_type: holding
name: bl0910_5_energy_10
id: n60_5_energy_10
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 560
register_type: holding
name: bl0910_5_energy_sum
id: n60_5_energy_sum
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 562
register_type: holding
name: bl0910_5_voltage
id: n60_5_voltage
unit_of_measurement: V
device_class: voltage
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 563
register_type: holding
name: bl0910_5_frequency
id: n60_5_period
unit_of_measurement: Hz
device_class: frequency
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 564
register_type: holding
name: bl0910_5_tps1
id: n60_5_tps_1
unit_of_measurement: "°C"
device_class: temperature
accuracy_decimals: 1
value_type: FP32_R
- platform: modbus_controller
address: 600
register_type: holding
name: bl0910_6_current_1
id: n60_6_current_1
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 602
register_type: holding
name: bl0910_6_current_2
id: n60_6_current_2
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 604
register_type: holding
name: bl0910_6_current_3
id: n60_6_current_3
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 606
register_type: holding
name: bl0910_6_current_4
id: n60_6_current_4
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 608
register_type: holding
name: bl0910_6_current_5
id: n60_6_current_5
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 610
register_type: holding
name: bl0910_6_current_6
id: n60_6_current_6
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 612
register_type: holding
name: bl0910_6_current_7
id: n60_6_current_7
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 614
register_type: holding
name: bl0910_6_current_8
id: n60_6_current_8
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 616
register_type: holding
name: bl0910_6_current_9
id: n60_6_current_9
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 618
register_type: holding
name: bl0910_6_current_10
id: n60_6_current_10
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 620
register_type: holding
name: bl0910_6_power_1
id: n60_6_watt_1
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 622
register_type: holding
name: bl0910_6_power_2
id: n60_6_watt_2
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 624
register_type: holding
name: bl0910_6_power_3
id: n60_6_watt_3
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 626
register_type: holding
name: bl0910_6_power_4
id: n60_6_watt_4
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 628
register_type: holding
name: bl0910_6_power_5
id: n60_6_watt_5
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 630
register_type: holding
name: bl0910_6_power_6
id: n60_6_watt_6
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 632
register_type: holding
name: bl0910_6_power_7
id: n60_6_watt_7
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 634
register_type: holding
name: bl0910_6_power_8
id: n60_6_watt_8
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 636
register_type: holding
name: bl0910_6_power_9
id: n60_6_watt_9
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 638
register_type: holding
name: bl0910_6_power_10
id: n60_6_watt_10
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 640
register_type: holding
name: bl0910_6_energy_1
id: n60_6_energy_1
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 642
register_type: holding
name: bl0910_6_energy_2
id: n60_6_energy_2
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 644
register_type: holding
name: bl0910_6_energy_3
id: n60_6_energy_3
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 646
register_type: holding
name: bl0910_6_energy_4
id: n60_6_energy_4
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 648
register_type: holding
name: bl0910_6_energy_5
id: n60_6_energy_5
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 650
register_type: holding
name: bl0910_6_energy_6
id: n60_6_energy_6
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 652
register_type: holding
name: bl0910_6_energy_7
id: n60_6_energy_7
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 654
register_type: holding
name: bl0910_6_energy_8
id: n60_6_energy_8
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 656
register_type: holding
name: bl0910_6_energy_9
id: n60_6_energy_9
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 658
register_type: holding
name: bl0910_6_energy_10
id: n60_6_energy_10
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 660
register_type: holding
name: bl0910_6_energy_sum
id: n60_6_energy_sum
unit_of_measurement: kWh
device_class: energy
accuracy_decimals: 1
value_type: U_DWORD_R
state_class: total_increasing
- platform: modbus_controller
address: 662
register_type: holding
name: bl0910_6_voltage
id: n60_6_voltage
unit_of_measurement: V
device_class: voltage
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 663
register_type: holding
name: bl0910_6_frequency
id: n60_6_period
unit_of_measurement: Hz
device_class: frequency
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 664
register_type: holding
name: bl0910_6_tps1
id: n60_6_tps_1
unit_of_measurement: "°C"
device_class: temperature
accuracy_decimals: 1
value_type: FP32_R
