LSC-RGBW-LED-Strip
Warning
As of July 2020 this device comes with a Tuya WB3S module, which is not compatible with ESPHome!
Notice
- This light is flashable using https://github.com/kueblc/tuya-convert
- Not tested yet with tuya-cloudcutter

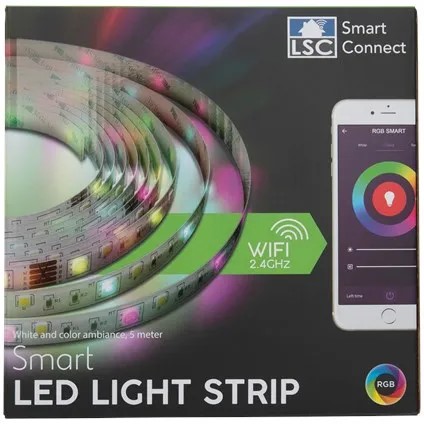

Product Images
GPIO Pinout
| Channel | Function |
|---|---|
| 4 | Red |
| 12 | Green |
| 14 | Blue |
| 13 | White |
Basic configuration
substitutions:
device_name: lsc-rgbw-strip
esphome:
name: ${device_name}
esp8266:
board: esp01_1m
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: !secret api_encryption_key
ota:
password: !secret ota_password
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot in case wifi connection fails
ap:
ssid: "AP-lsc-rgbw-strip"
password: ""
web_server:
port: 80
sensor:
- platform: wifi_signal
name: ${device_name} Wifi Signal Strength
update_interval: 60s
- platform: uptime
name: ${device_name} Uptime
remote_receiver:
pin:
number: 0
inverted: true
dump: all
# filter: 50us
output:
- platform: esp8266_pwm
id: pwm_red
pin: 4
frequency: 1000 Hz
- platform: esp8266_pwm
id: pwm_blue
pin: 14
frequency: 1000 Hz
- platform: esp8266_pwm
id: pwm_green
pin: 12
frequency: 1000 Hz
- platform: esp8266_pwm
id: pwm_white
pin: 13
frequency: 1000 Hz
light:
- platform: rgbw
id: strip
name: ${device_name}
red: pwm_red
green: pwm_green
blue: pwm_blue
white: pwm_white
effects:
- strobe:
name: strobe
colors:
- state: true
brightness: 100%
red: 100%
green: 0%
blue: 0%
white: 0%
duration: 1000ms
- state: true
brightness: 100%
red: 0%
green: 100%
blue: 0%
white: 0%
duration: 1000ms
- state: true
brightness: 100%
red: 0%
green: 0%
blue: 100%
white: 0%
duration: 1000ms
binary_sensor:
- platform: remote_receiver
id: aan
internal: true
name: "Remote On"
nec:
address: 0x00F7
command: 0xC03F
on_press:
then:
light.turn_on:
id: strip
- platform: remote_receiver
id: uit
internal: true
name: "Remote Off"
nec:
address: 0x00F7
command: 0x40BF
on_press:
- then:
light.turn_off:
id: strip
- platform: remote_receiver
id: white
internal: true
name: "Remote white"
nec:
address: 0x00F7
command: 0xE01F
on_press:
- then:
light.turn_on:
id: strip
brightness: 100%
red: 0%
green: 0%
blue: 0%
white: 100%
- platform: remote_receiver
id: blue
internal: true
name: "Remote blue"
nec:
address: 0x00F7
command: 0x609F
on_press:
- then:
light.turn_on:
id: strip
brightness: 100%
red: 0%
green: 0%
blue: 100%
white: 0%
- platform: remote_receiver
id: red
internal: true
name: "Remote red"
nec:
address: 0x00F7
command: 0x20DF
on_press:
- then:
light.turn_on:
id: strip
brightness: 100%
red: 100%
green: 0%
blue: 0%
white: 0%
- platform: remote_receiver
id: green
internal: true
name: "Remote green"
nec:
address: 0x00F7
command: 0xA05F
on_press:
- then:
light.turn_on:
id: strip
brightness: 100%
red: 0%
green: 100%
blue: 0%
white: 0%
- platform: remote_receiver
id: strobe
internal: true
name: "Remote Strobe"
nec:
address: 0x00F7
command: 0xF00F
on_press:
- then:
- light.turn_on:
id: strip
effect: strobe
