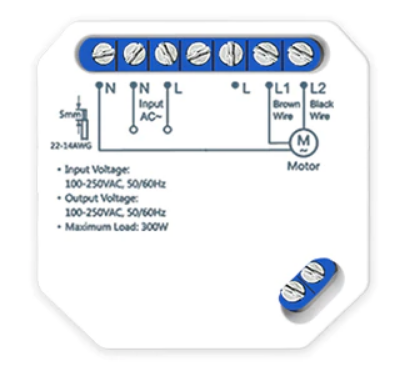

LoraTap SC500W

[https://www.loratap.com/sc500w-p0108.html)

GPIO Pinout

Pin	Function
GPIO03	LED (inverted)
GPIO04	S1 (external switch input)
GPIO05	S2 (external switch input)
GPIO12	Relay L1
GPIO13	Button
GPIO14	Relay L2

Basic Config

The configuration below will simply set up the device as a 2-gang switch for lights.

#SC500W
substitutions:
  device_name: SC500W
  friendly_name: "SC500W"
  device_description: "SC500W"

esphome:
  name: ${device_name}
  comment: "${device_description}"

esp8266:
  board: esp01_1m

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "ESPHOME"
    password: "12345678"

logger:

api:
  reboot_timeout: 15min
  encryption:
    key: !secret encryption_key

ota:
  password: !secret ota_password

# the web_server & sensor components can be removed without affecting core functionaility.

web_server:
  port: 80

sensor:
  - platform: wifi_signal
    name: ${device_name} Wifi Signal Strength
    update_interval: 60s
  - platform: uptime
    name: ${device_name} Uptime
#######################################
# Device specific Config Begins Below #
#######################################

binary_sensor:
  - platform: gpio
    name: ${friendly_name} button
    pin: GPIO13
    internal: true

  - platform: gpio
    name: ${friendly_name} S1 switch input
    pin: GPIO4
    id: button1
    disabled_by_default: true
    filters:
      - invert:
    on_press:
      if:
        condition:
          binary_sensor.is_on: button1
        then:
          - light.turn_on: light1
    on_release:
      if:
        condition:
          binary_sensor.is_off: button1
        then:
          - light.turn_off: light1
  - platform: gpio
    name: ${friendly_name} S2 switch input
    pin: GPIO5
    id: button2
    disabled_by_default: true
    filters:
      - invert:
    on_press:
      if:
        condition:
          binary_sensor.is_on: button2
        then:
          - light.turn_on: light2
    on_release:
      if:
        condition:
          binary_sensor.is_off: button2
        then:
          - light.turn_off: light2

output:
  - platform: gpio
    pin: GPIO12
    id: relay1
  - platform: gpio
    pin: GPIO14
    id: relay2

light:
  - platform: binary
    name: ${friendly_name} L1 output
    id: light1
    output: relay1
  - platform: binary
    name: ${friendly_name} L2 output
    id: light2
    output: relay2

status_led:
  pin:
    number: GPIO3
    inverted: true
