Device Type:light
Electrical Standard:global
Difficulty:Soldering required (4/5)

Oyajia LED Ceiling Light (AS105)

Available on Amazon (DE, FR, IT)

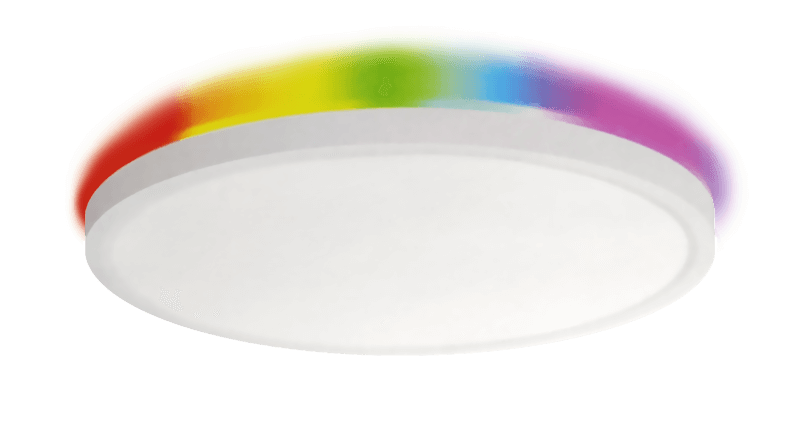

Product Image

Smart ceiling light with a CCT center light (2800K-6500K) and an addressable RGB ring light. The model number is AS105 and advertised as 4000 lm, 40 watts (30W white + 10W RGB), 85-265V AC.

This device contains an unmarked Tuya module based on the BK7231N. If you plan to replace this module please carefully check the pinout of the new module and the supported functions of each pin. The ESP8266 (ESP-12F) is not compatible with this lamp.

The included Bluetooth remote control is currently not compatible with ESPHome but this might change in the future.

Flashing​

There is no programming header on the circuit board. For serial flashing you need to solder wires directly to the Tuya module.

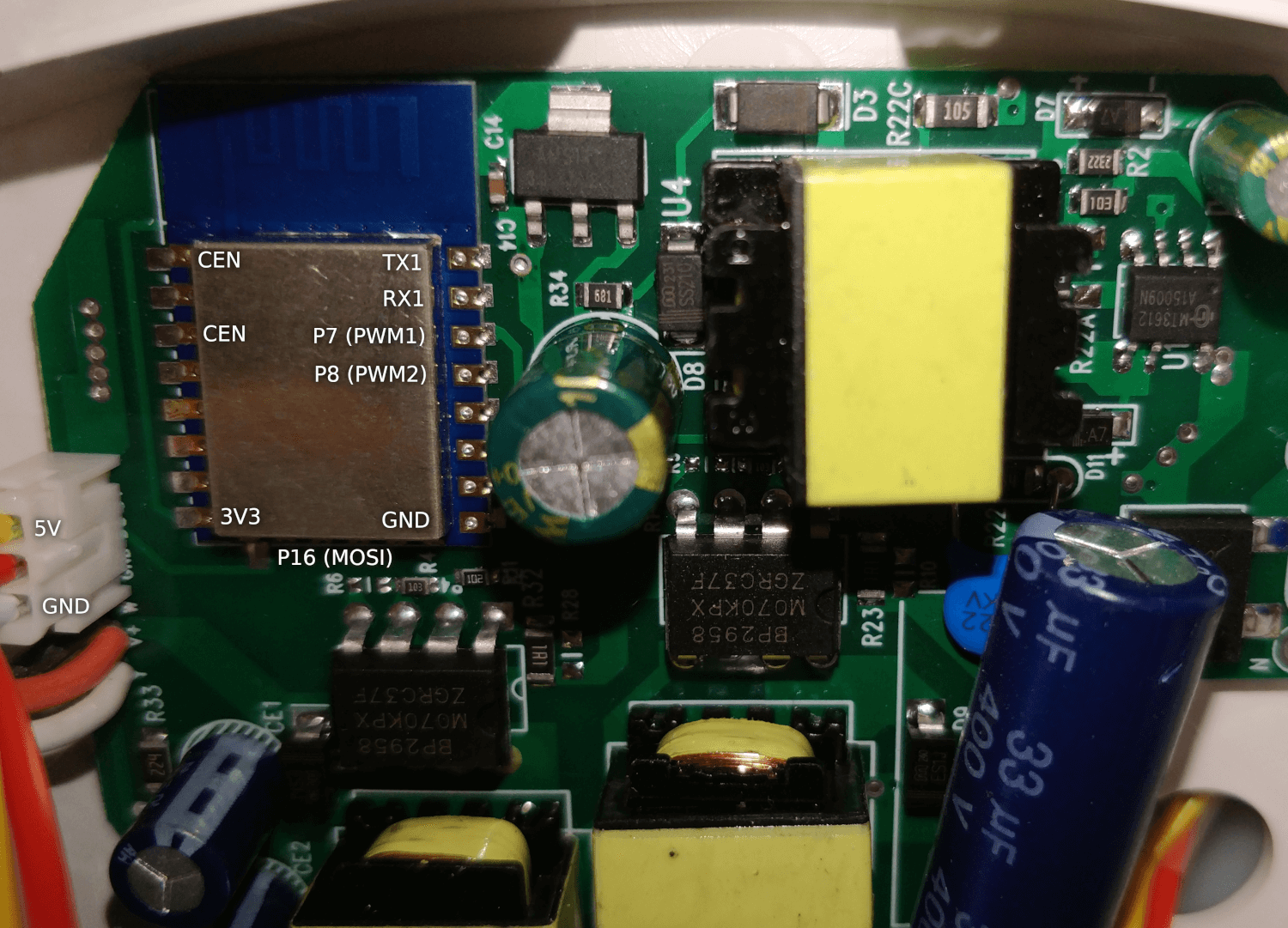

Pinout

PWM Settings​

Each set of white LEDs (CW, WW) is controlled by a PWM output. A duty cycle of about 14% is required to turn on each light output channel.

YAML File​

esphome:
  name: led-ceiling-light
  friendly_name: "LED Ceiling Light"
  project:
    name: "Oyajia.AS105"
    version: "AS105"
  on_boot:
    priority: 600
    then:
    - light.turn_on:
        id: white_light
        brightness: 70%
        color_temperature: 2800 K

bk72xx:
  board: generic-bk7231n-qfn32-tuya

api:
  encryption:
    key: !secret api_encryption_key

ota:
  id: my_ota
  password: !secret ota_password

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

logger:
  baud_rate: 2000000  # The original firmware uses the same baud rate for log outputs
  hardware_uart: UART1

external_components:
  - source: github://pr#6515
    components: [beken_spi_led_strip]
    refresh: always

light:
  - platform: cwww
    id: white_light
    name: "White Light"
    cold_white: output_cw
    warm_white: output_ww
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2800 K
    constant_brightness: true

  - platform: beken_spi_led_strip
    id: color_light
    name: "Color Light"
    pin: P16
    chipset: WS2812
    num_leds: 60
    rgb_order: GRB

output:
  - platform: libretiny_pwm
    id: output_cw
    pin: PWM1
    # min_power: 14%
    # zero_means_zero: True
  - platform: libretiny_pwm
    id: output_ww
    pin: PWM2
    # min_power: 14%
    # zero_means_zero: True

sensor:
  - platform: internal_temperature
    name: "Internal Temperature"
