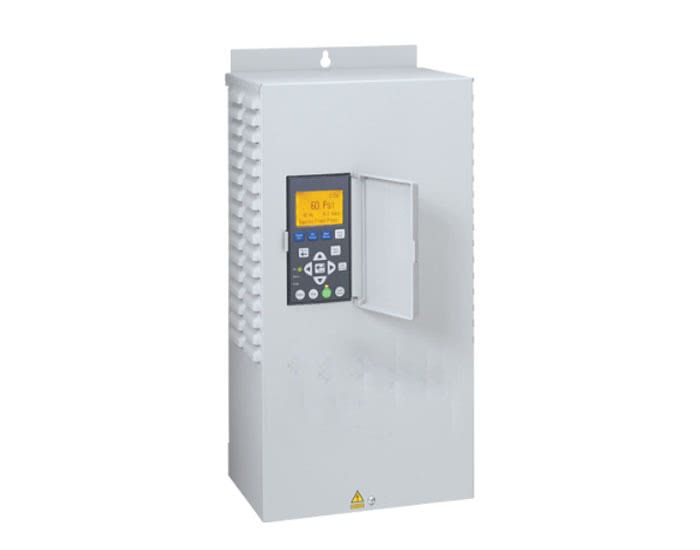

Pentek Intellidrive PID10

Data can be gathered from your Pentair Pentek Intellidrive PID Variable Frequency Pump Controller over Modbus. Tested with a PID10 Device.

The Intellidrive provides a 2-wire RS485 interface. Wire up a an RS485 transceiver like MAX485 to an ESP32 to interface with the device using Esphome's Modbus Component

Modbus Interface Notes

The Intellidrive Modbus interface is poorly documented. Most interesting registers should be provided below, but there may be more to discover. See the Unofficial Modbus Docs for more information on known or suspected registers.

Configuration example

esphome:
  name: well-pump-controller
  friendly_name: "Well Pump Controller"
  comment: "Pentek Intellidrive PID10"

esp32:
  board: nodemcu-32s

wifi:
  ssid: YOUR_SSID
  password: YOUR_PW
  power_save_mode: none

ota:

api:

web_server:
  port: 80

time:
  - platform: sntp
    id: sntp_time
    timezone: America/Los_Angeles

# Example UART configuration
uart:
  id: mod_bus
  tx_pin: GPIO16
  rx_pin: GPIO17
  baud_rate: 19200
  data_bits: 8
  parity: NONE
  stop_bits: 1

modbus:
  id: modbus1

modbus_controller:
  - id: modctrl1
    address: 0x1
    modbus_id: modbus1
    setup_priority: -10
    update_interval: 10s
  - id: modctrl2
    address: 0x2
    modbus_id: modbus1
    setup_priority: -10
    update_interval: 10s

sensor:
  # SETTINGS PARAMS --------------

    # software version is a string, low-byte first
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x0000
    name: "AOC Software Version"
    register_type: holding
    value_type: RAW
    register_count: 10
    accuracy_decimals: 2
    lambda: |-
      if (data.size() < item->offset + 20) return NAN;
      std::string temp;
      std::string result;
      bool found_dot = false;

      for (int i = 0; i < 20; i+=2) {
        char chars[] = {
          static_cast<char>(data[item->offset + i]),      // low byte
          static_cast<char>(data[item->offset + i + 1]),  // high byte
        };
        for (char c : chars) {
          temp += c;
        }
      }
      for (auto it = temp.rbegin(); it != temp.rend(); ++it) {
          char c = *it;
          if (c == '.' && !found_dot) {
              result += c; found_dot = true;
          } else if (c >= '0' && c <= '9') {
              result += c;
          }
      }
      return std::stof(result);

  # PID control settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00D0
    name: "PID P-Gain"
    register_type: holding
    value_type: U_WORD
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00D1
    name: "PID I-Time"
    device_class: duration
    unit_of_measurement: "ms"
    register_type: holding
    value_type: U_WORD
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00D2
    name: "PID D-Time"
    device_class: duration
    unit_of_measurement: "ms"
    register_type: holding
    value_type: U_WORD
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00D3
    name: "PID D-Limit"
    register_type: holding
    value_type: U_WORD

  # SLEEP settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00FC
    name: "Sleep Boost Differential"
    unit_of_measurement: "psi"
    device_class: "pressure"
    register_type: holding
    value_type: U_WORD
    filters:
      - multiply: 0.1450
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00FB
    name: "Sleep Boost Delay"
    unit_of_measurement: "s"
    device_class: duration
    register_type: holding
    value_type: U_WORD
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00F9
    name: "Sleep Wake Up Differential"
    unit_of_measurement: "psi"
    device_class: "pressure"
    register_type: holding
    value_type: U_WORD
    filters:
      - multiply: 0.1450
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00FA
    name: "Sleep Wake Delay"
    unit_of_measurement: "s"
    device_class: duration
    register_type: holding
    value_type: U_WORD

  # PASSWORD settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00EE
    name: "Password Lock Time"
    unit_of_measurement: "min"
    device_class: duration
    register_type: holding
    value_type: U_WORD
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00EC
    name: "App Password"
    register_type: holding
    value_type: U_WORD

  # SET POINTS
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00DA
    name: "Setpoint Internal"
    unit_of_measurement: "psi"
    device_class: "pressure"
    register_type: holding
    value_type: U_WORD
    filters:
      - multiply: 0.1450
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00E5
    name: "Setpoint External"
    unit_of_measurement: "psi"
    device_class: "pressure"
    register_type: holding
    value_type: U_WORD
    filters:
      - multiply: 0.1450

  # MOTOR settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1452
    name: "3PH Motor Type ID"
    register_type: holding
    value_type: U_WORD
    internal: true
    on_value:
      then:
        - lambda: |-
            if (x == 0) {
                id(ph3_motor_type).publish_state("Submersible");
            } else if (x == 1) {
                id(ph3_motor_type).publish_state("Above-Ground");
            } else {
              std::string mode_str = "Unknown Motor Type: " + std::to_string(x);
              id(ph3_motor_type).publish_state(mode_str.c_str());
            }
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1450
    name: "Motor Service Factor Amps"
    unit_of_measurement: "A"
    device_class: current
    register_type: holding
    value_type: FP32
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00E9
    name: "Motor Max Frequency"
    register_type: holding
    value_type: U_WORD
    unit_of_measurement: "Hz"
    device_class: "frequency"
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00EA
    name: "Motor Min Frequency"
    register_type: holding
    value_type: U_WORD
    unit_of_measurement: "Hz"
    device_class: "frequency"

  # SENSOR settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00DC
    name: "Sensor Max Pressure"
    unit_of_measurement: "psi"
    device_class: "pressure"
    register_type: holding
    value_type: U_WORD
    filters:
      - multiply: 0.1450

  # EX RUNTIME SETTINGS
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00EF
    name: "Excessive Runtime Hours"
    unit_of_measurement: "h"
    device_class: "duration"
    register_type: holding
    value_type: U_WORD

  # DRY RUN settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00E1
    name: "Dry Run Auto Restart Delay"
    unit_of_measurement: "s"
    device_class: "duration"
    register_type: holding
    value_type: U_WORD
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00E0
    name: "Dry Run Number of Resets"
    register_type: holding
    value_type: U_WORD
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00DF
    name: "Dry Run Detection Time"
    register_type: holding
    value_type: U_WORD
    unit_of_measurement: "s"
    device_class: "duration"
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00E4
    name: "Dry Run Fill Time"
    register_type: holding
    value_type: U_WORD
    unit_of_measurement: "s"
    device_class: "duration"

  # I/O Settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00E6
    name: "I/O Input 1 Mode ID"
    register_type: holding
    value_type: U_WORD
    internal: true
    on_value:
      then:
        - lambda: |-
            if (x == 0) {
                id(io_input_1_mode).publish_state("Unused");
            } else if (x == 1) {
                id(io_input_1_mode).publish_state("Run Enable");
            } else if (x == 2) {
                id(io_input_1_mode).publish_state("Ext Fault");
            } else if (x == 3) {
                id(io_input_1_mode).publish_state("Ext Setpoint");
            } else {
              std::string mode_str = "Unknown Input Mode: " + std::to_string(x);
              id(io_input_1_mode).publish_state(mode_str.c_str());
            }
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00E7
    name: "I/O Input 2 Mode ID"
    register_type: holding
    value_type: U_WORD
    internal: true
    on_value:
      then:
        - lambda: |-
            if (x == 0) {
                id(io_input_2_mode).publish_state("Unused");
            } else if (x == 1) {
                id(io_input_2_mode).publish_state("Run Enable");
            } else if (x == 2) {
                id(io_input_2_mode).publish_state("Ext Fault");
            } else if (x == 3) {
                id(io_input_2_mode).publish_state("Ext Setpoint");
            } else {
              std::string mode_str = "Unknown Input Mode: " + std::to_string(x);
              id(io_input_2_mode).publish_state(mode_str.c_str());
            }
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00FE
    name: "I/O Output Mode ID"
    register_type: holding
    value_type: U_WORD
    internal: true
    on_value:
      then:
        - lambda: |-
            if (x == 0) {
                id(io_output_mode).publish_state("Unused");
            } else if (x == 1) {
                id(io_output_mode).publish_state("Run");
            } else if (x == 2) {
                id(io_output_mode).publish_state("Fault");
            } else {
              std::string mode_str = "Unknown Output Mode: " + std::to_string(x);
              id(io_output_mode).publish_state(mode_str.c_str());
            }

  # Over Pressure
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x0101
    name: "Over Pressure Setpoint"
    unit_of_measurement: "psi"
    device_class: "pressure"
    register_type: holding
    value_type: U_WORD
    filters:
      - multiply: 0.1450

  # MONITORING PARAMS --------------

    # software version is a string, low-byte first
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x13EC
    name: "MOC Software Version"
    register_type: holding
    value_type: RAW
    register_count: 10
    accuracy_decimals: 2
    lambda: |-
      if (data.size() < item->offset + 20) return NAN;
      std::string temp;
      std::string result;
      bool found_dot = false;

      for (int i = 0; i < 20; i+=2) {
        char chars[] = {
          static_cast<char>(data[item->offset + i]),      // low byte
          static_cast<char>(data[item->offset + i + 1]),  // high byte
        };
        for (char c : chars) {
          temp += c;
        }
      }
      for (auto it = temp.rbegin(); it != temp.rend(); ++it) {
          char c = *it;
          if (c == '.' && !found_dot) {
              result += c; found_dot = true;
          } else if (c >= '0' && c <= '9') {
              result += c;
          }
      }
      return std::stof(result);

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x141D
    name: "Motor Power Consumption"
    id: "motor_power_consumption"
    unit_of_measurement: "W"
    state_class: measurement
    device_class: power
    register_type: holding
    value_type: U_DWORD

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x141F
    name: "Motor Phase A Current"
    id: "phase_a_current"
    unit_of_measurement: "A"
    state_class: measurement
    device_class: current
    register_type: holding
    value_type: FP32
    filters:
      - clamp:
          min_value: 0
          max_value: 20

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1421
    name: "Motor Phase B Current"
    id: "phase_b_current"
    unit_of_measurement: "A"
    state_class: measurement
    device_class: current
    register_type: holding
    value_type: FP32
    filters:
      - clamp:
          min_value: 0
          max_value: 20

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1423
    name: "Motor Phase C Current"
    id: "phase_c_current"
    unit_of_measurement: "A"
    state_class: measurement
    device_class: current
    register_type: holding
    value_type: FP32
    filters:
      - clamp:
          min_value: 0
          max_value: 20

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1425
    name: "Motor Phase Voltage"
    id: "motor_phase_voltage"
    unit_of_measurement: "V"
    state_class: measurement
    device_class: voltage
    register_type: holding
    value_type: FP32

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1453
    name: "Supply Voltage"
    id: "supply_voltage"
    unit_of_measurement: "V"
    state_class: measurement
    device_class: voltage
    register_type: holding
    value_type: U_DWORD

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1416
    name: "Motor Speed Actual"
    unit_of_measurement: "Hz"
    device_class: "frequency"
    state_class: measurement
    register_type: holding
    value_type: FP32

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x001E
    name: "Fault Code"
    register_type: holding
    value_type: U_DWORD
    internal: true
    on_value:
      then:
        - lambda: |-
            if (x == 0 || x == 1) {
                id(fault_state).publish_state("None");
            } else if (x == 8192) {
                id(fault_state).publish_state("Open Transducer");
            } else if (x == 16384) {
                id(fault_state).publish_state("Short Transducer");
            } else if (x == 65536) {
                id(fault_state).publish_state("Under Voltage");
            } else if (x == 64) {
                id(fault_state).publish_state("Can Not Start Motor");
            } else if (x == 32) {
                id(fault_state).publish_state("Dry Run");
            } else if (x == 2048) {
                id(fault_state).publish_state("Ground Fault");
            } else if (x == 4096) {
                id(fault_state).publish_state("System Not Grounded");
            } else if (x == 256) {
                id(fault_state).publish_state("Over Current");
            } else if (x == 32768) {
                id(fault_state).publish_state("Low Amps");
            } else {
                std::string mode_str = "Unknown Fault: " + std::to_string(x);
                id(fault_state).publish_state(mode_str.c_str());
            }

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x0029
    name: "Run Mode ID"
    register_type: holding
    value_type: U_WORD
    internal: true
    on_value:
      then:
        - lambda: |-
            if (x == 0) {
                id(run_mode).publish_state("Stop");
            } else if (x == 1) {
                id(run_mode).publish_state("Pump Out");
            } else if (x == 2) {
                id(run_mode).publish_state("Auto Start");
            } else {
              std::string mode_str = "Unknown Mode: " + std::to_string(x);
              id(run_mode).publish_state(mode_str.c_str());
            }

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x1452
    name: "Motor Type ID"
    register_type: holding
    value_type: U_WORD
    internal: true
    on_value:
      then:
        - lambda: |-
            if (x == 0) {
                id(motor_type).publish_state("3-Phase");
            } else if (x == 1) {
                id(motor_type).publish_state("1-Phase, 2-Wire");
            } else if (x == 2) {
                id(motor_type).publish_state("1-Phase, 3-Wire");
            } else {
              std::string mode_str = "Unknown Motor Type: " + std::to_string(x);
              id(motor_type).publish_state(mode_str.c_str());
            }

  # MONITORING PARAMS (UNDOCUMENTED) --------------

  - platform: modbus_controller
    modbus_controller_id: modctrl1
    address: 0x1419
    name: "Motor Speed"
    unit_of_measurement: "Hz"
    device_class: "frequency"
    state_class: measurement
    register_type: holding
    value_type: FP32

  - platform: modbus_controller
    modbus_controller_id: modctrl1
    address: 0x1455
    name: "IGBT Temp"
    unit_of_measurement: "°C"
    state_class: measurement
    register_type: holding
    value_type: FP32

  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00DD
    name: "Current Pressure"
    unit_of_measurement: "psi"
    device_class: "pressure"
    state_class: measurement
    register_type: holding
    value_type: U_WORD
    filters:
      - multiply: 0.1450

  # DERIVED SENSORS --------------
  - platform: integration
    name: "Motor Energy Consumption"
    sensor: motor_power_consumption
    time_unit: h
    unit_of_measurement: "kWh"
    device_class: energy
    state_class: total_increasing

binary_sensor:
  # MOTOR settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x157B
    name: "Motor Above Ground"
    register_type: holding
  # EX RUNTIME settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x00F0
    name: "Excessive Runtime Detection"
    register_type: holding
  # No GROUND settings
  - platform: modbus_controller
    modbus_controller_id: modctrl2
    address: 0x15E1
    name: "No Ground Detection"
    register_type: holding

text_sensor:
  - platform: template
    name: "Run Mode"
    id: run_mode
  - platform: template
    name: "Fault"
    id: fault_state
  - platform: template
    name: "Motor Type"
    id: motor_type
  - platform: template
    name: "3PH Motor Type"
    id: ph3_motor_type
  - platform: template
    name: "I/O Input 1 Mode"
    id: io_input_1_mode
  - platform: template
    name: "I/O Input 2 Mode"
    id: io_input_2_mode
  - platform: template
    name: "I/O Output Mode"
    id: io_output_mode
