Sonoff M5 Wall Switch 1/2/3-gang

Notes

• the Matter compatible version of this switch (part numbers ending in W, e.g. M5-2C-86W) is locked and cannot be flashed
• status LED (blue) in left-most button
• channel LEDs (red) are dimmable (PWM) while relays OFF; 100% bright when ON
• in 1-gang version LED 1 to/can be activated separately from Relay
• in 2-gang version LED 2 to/can be activated separately from Relay

Troubleshooting

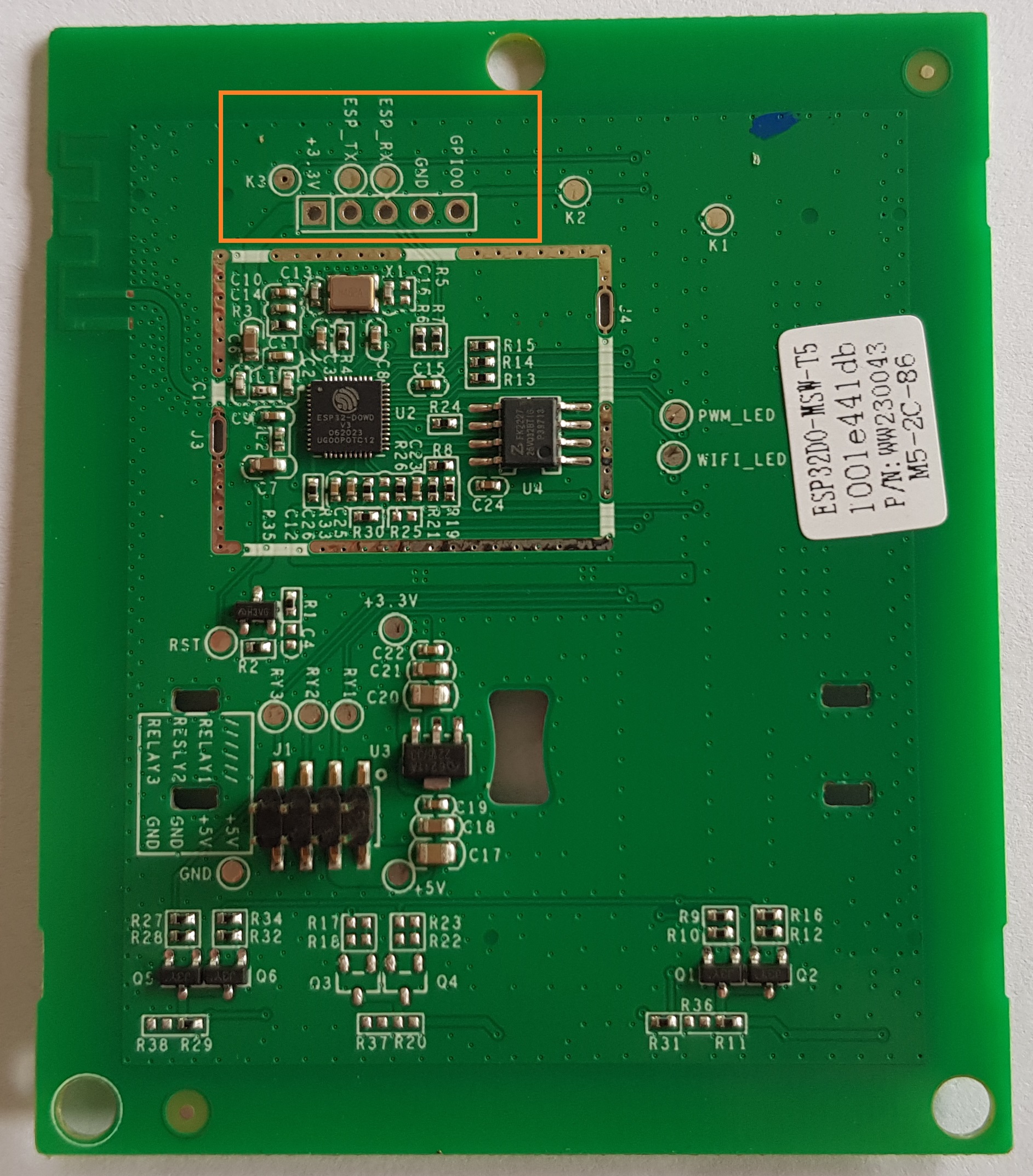

• FTDI adapters typically provide enough power to flash ESPHome onto these devices, but due to the PCB design, they do not provide sufficient power to boot. This will typically present as esphome rst:0x1 (POWERON_RESET), boot:0x13 (SPI_FAST_FLASH_BOOT). When connected to and powered by its wall plate, it will boot normally.

GPIO Pinout

1-Gang Version

Pin	Function
GPIO00	Button 1
GPIO23	Relay 1
GPIO19	LED 1
GPIO05	Status LED
GPIO18	PWM for LED 1

2-Gang Version

Pin	Function
GPIO04	Button 1
GPIO15	Button 2
GPIO23	Relay 1 / LED 1
GPIO19	Relay 2
GPIO22	LED 2
GPIO05	Status LED
GPIO18	PWM for LED 1/2

3-Gang Version

Pin	Function
GPIO04	Button 1
GPIO00	Button 2
GPIO15	Button 3
GPIO23	Relay 1 / LED 1
GPIO19	Relay 2 / LED 2
GPIO22	Relay 3 / LED 3
GPIO05	Status LED
GPIO18	PWM for LED 1/2/3

Basic Configuration (2-Gang)

esphome:
  name: Sonoff M5 2gang

esp32:
  board: esp32dev
  framework:
    type: arduino

logger:
  level: INFO

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

api:
  encryption:
    key: !secret esp_api_key

ota:
  - platform: esphome
    password: !secret ota_secret

sensor:
  - platform: wifi_signal
    name: "RSSI"
    id: sensor_rssi
    update_interval: 90s
    entity_category: "diagnostic"

  - platform: uptime
    name: "Uptime"
    id: sensor_uptime
    update_interval: 300s
    entity_category: "diagnostic"

button:
  - platform: restart
    name: "Restart"
    id: button_restart

switch:
  - platform: gpio
    name: "Left"
    pin: GPIO23
    id: relay_1

  - platform: gpio
    name: "Right"
    pin: GPIO19
    id: relay_2
    on_turn_on:
      - output.turn_on: led_2
    on_turn_off:
      - output.turn_off: led_2

output:
  - platform: gpio
    id: led_2
    pin:
      number: GPIO22
      inverted: False

  - platform: ledc
    id: pwm_output
    pin: GPIO18
    frequency: 1000 Hz

binary_sensor:
  - platform: status
    name: "Status"
    id: sensor_status

  - platform: template
    name: "API connected"
    id: sensor_api_connected
    internal: True
    entity_category: "diagnostic"
    device_class: "connectivity"
    lambda: return global_api_server->is_connected();
    on_press:
      - light.turn_on: led_status
    on_release:
      - light.turn_off: led_status

  - platform: gpio
    name: "Left"
    pin:
      number: GPIO04
      mode: INPUT_PULLUP
      inverted: False
    on_press:
      - switch.toggle: relay_1

  - platform: gpio
    name: "Right"
    pin:
      number: GPIO15
      mode: INPUT_PULLUP
      inverted: False
    on_press:
      - switch.toggle: relay_2

light:
  - platform: status_led
    name: "LED"
    id: led_status
    pin:
      number: GPIO05
      inverted: True
    internal: True
    restore_mode: ALWAYS_OFF

  - platform: monochromatic
    output: pwm_output
    name: "LEDs"
    restore_mode: RESTORE_DEFAULT_OFF
    icon: "mdi:led-outline"
    entity_category: "config"

Advanced Configuration (3-Gang, US Version)

# ESPHome Firmware
# Sonoff Switchman M5 3-Gang US
# Copyright (c) 2024 Mario Di Vece
# License: [MIT](https://opensource.org/license/mit/)
# Decription:
# Aims to provide a feature-rich, production-ready firmware for this elegant device
# - Provides Diagnostic data plus, status LED indicator when not connected to Home Assistant API
# - Relays may be configured individually on the UI to work in decoupled mode.
#   LEDs are physically connected to the relays, and they can't be individually controlled :(
# - Exposes gestures via events:
#   esphome.on_gesture { button: (A|B|C), gesture: (click|double_click|hold) }
# - Off-state (Background Brightness) of the LEDs is configurable via the UI
#
# For the below example, you need to keep the following entries in your secrets.yaml file:
#  - wifi_ssid: "<secret>"
#  - wifi_password: "<secret>"
#  - ota_password: "<secret>"
#  - esp_key: "<32-byte-base-64-secret>"
#
# Example file (sonoff-m5-3g-office-01.yaml)
#
# substitutions:
#   usemac: "false"
#   friendly: "Sonoff M5 3G - Office Switch - 01"
#   uniquename: "sonoff-m5-3g-office-01"
#
# packages:
#   base_package:
#     url: https://github.com/mariodivece/esphometemplates/
#     ref: main
#     files: [sonoff-m5-3g-us.yaml]
#     refresh: 0d
#
# wifi:
#   use_address: "10.16.40.49"

# Basic substitutions (can be safely overriden)
substitutions:
  usemac: "true"
  friendly: "Sonoff Switchman M5 3G US"
  uniquename: "switch-m5-3g"
  loglevel: INFO
  apikey: !secret esp_key
  wifi_ssid: !secret wifi_ssid
  wifi_password: !secret wifi_password
  ota_password: !secret ota_password
  device_name: "M53G"
  device_make: "Sonoff"
  sw_version: "2024.2.4"
  package_url: "github://mariodivece/esphometemplates/sonoff-m5-3g-us.yaml@main"

# Define the board for the compiler
esp32:
  board: esp32dev
  framework:
    type: arduino

# Setup the integration and define some project variables
esphome:
  name: "${uniquename}"
  friendly_name: "${friendly}"
  comment: "${device_name} by ${device_make}"
  name_add_mac_suffix: ${usemac}
  min_version: "2023.2.0"
  project:
    name: "${device_make}.${device_name}"
    version: "${sw_version}"

# Allow importing this package
dashboard_import:
  package_import_url: ${package_url}
  import_full_config: false

# Enable logging
logger:
  level: "${loglevel}"

# Enable Home Assistant API
api:
  encryption:
    key: "${apikey}"

# Enable OTA
ota:
  - platform: esphome
    safe_mode: true
    password: !secret ota_password

# Enable WiFi and AP for captive portal
wifi:
  fast_connect: false
  power_save_mode: none
  ssid: "${wifi_ssid}"
  password: "${wifi_password}"

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  # password for hostspot is the same as password for net AP (needs captive_portal)
  ap:
    ssid: "${uniquename}-setup"
    password: "${wifi_password}"

captive_portal:

# Diagnostic output sensors
text_sensor:
  - platform: template
    name: "Deployment Version"
    lambda: return {"${sw_version}"};
    icon: "mdi:tag"
    entity_category: diagnostic

  - platform: wifi_info
    ip_address:
      id: ip_address
      name: "IP Address"
      icon: "mdi:wan"

sensor:
  - platform: template
    id: internal_temp
    name: "Internal Temperature"
    icon: "mdi:thermometer"
    unit_of_measurement: "°C"
    entity_category: diagnostic
    disabled_by_default: true
    lambda: return temperatureRead();

  - platform: wifi_signal
    name: "RSSI"
    id: sensor_rssi
    update_interval: 90s
    entity_category: "diagnostic"

  - platform: uptime
    name: "Uptime"
    id: sensor_uptime
    update_interval: 300s
    entity_category: "diagnostic"

# Provide a pre-built button for restarting the device
button:
  - platform: restart
    name: "Restart"
    id: button_restart

switch:
  # Physical GPIO Relay
  - platform: gpio
    name: "Relay A"
    pin: GPIO23
    id: relay_a

  # Physical GPIO Relay
  - platform: gpio
    name: "Relay B"
    pin: GPIO19
    id: relay_b

  # Physical GPIO Relay
  - platform: gpio
    name: "Relay C"
    pin: GPIO22
    id: relay_c

  # Config-only switch to decouple relay from button
  - platform: template
    name: "Decoupling - Relay A"
    id: relay_a_decoupled
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    icon: "mdi:link-box-outline"
    entity_category: "config"

  # Config-only switch to decouple relay from button
  - platform: template
    name: "Decoupling - Relay B"
    id: relay_b_decoupled
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    icon: "mdi:link-box-outline"
    entity_category: "config"

  # Config-only switch to decouple relay from button
  - platform: template
    name: "Decoupling - Relay C"
    id: relay_c_decoupled
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    icon: "mdi:link-box-outline"
    entity_category: "config"

output:
  # Physical GPIO PWM for off-state background brightness
  # This pin controls the background brightness for all LEDs
  # physically attached to the relays
  - platform: ledc
    id: pwm_output
    pin: GPIO18
    frequency: 1000 Hz

binary_sensor:
  # Diagnostic sensor for connection
  - platform: status
    name: "Status"
    id: sensor_status

  # Make the status LED blink when not connected/trying to connect
  - platform: template
    name: "API connected"
    id: sensor_api_connected
    internal: true
    entity_category: "diagnostic"
    device_class: "connectivity"
    lambda: return global_api_server->is_connected();
    on_press:
      - light.turn_off: led_status
    on_release:
      - light.turn_on: led_status

  # Physical Button A
  - platform: gpio
    name: "Button A"
    id: button_a
    pin:
      number: GPIO04
      mode: INPUT_PULLUP
      inverted: true

    filters:
      - delayed_on: 10ms

    on_press:
      - if:
          condition:
            switch.is_off: relay_a_decoupled
          then:
            - switch.toggle: relay_a

    on_multi_click:
      # single click detection
      - timing:
          - ON for at most 900ms
          - OFF for at least 600ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "A"
                gesture: "single_click"

      # double click detection
      - timing:
          - ON for at most 500ms
          - OFF for at most 400ms
          - ON for at most 500ms
          - OFF for at least 250ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "A"
                gesture: "double_click"

      # hold detection
      - timing:
          - ON for at least 1s
        then:
          - while:
              condition:
                binary_sensor.is_on: button_a
              then:
                - light.toggle: led_status
                - homeassistant.event:
                    event: esphome.on_gesture
                    data:
                      button: "A"
                      gesture: "button_hold"
                - delay: 100ms
          - light.turn_off: led_status

  - platform: gpio
    name: "Button B"
    id: button_b
    pin:
      number: GPIO00
      mode: INPUT_PULLUP
      inverted: true

    filters:
      - delayed_on: 10ms

    on_press:
      - if:
          condition:
            switch.is_off: relay_b_decoupled
          then:
            - switch.toggle: relay_b

    on_multi_click:
      # single click detection
      - timing:
          - ON for at most 900ms
          - OFF for at least 600ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "B"
                gesture: "single_click"

      # double click detection
      - timing:
          - ON for at most 500ms
          - OFF for at most 400ms
          - ON for at most 500ms
          - OFF for at least 250ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "B"
                gesture: "double_click"

      # hold detection
      - timing:
          - ON for at least 1s
        then:
          - while:
              condition:
                binary_sensor.is_on: button_b
              then:
                - light.toggle: led_status
                - homeassistant.event:
                    event: esphome.on_gesture
                    data:
                      button: "B"
                      gesture: "button_hold"
                - delay: 100ms
          - light.turn_off: led_status

  - platform: gpio
    name: "Button C"
    id: button_c
    pin:
      number: GPIO15
      mode: INPUT_PULLUP
      inverted: true

    filters:
      - delayed_on: 10ms

    on_press:
      - if:
          condition:
            switch.is_off: relay_c_decoupled
          then:
            - switch.toggle: relay_c

    on_multi_click:
      # single click detection
      - timing:
          - ON for at most 900ms
          - OFF for at least 600ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "C"
                gesture: "single_click"

      # double click detection
      - timing:
          - ON for at most 500ms
          - OFF for at most 400ms
          - ON for at most 500ms
          - OFF for at least 250ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "C"
                gesture: "double_click"

      # hold detection
      - timing:
          - ON for at least 1s
        then:
          - while:
              condition:
                binary_sensor.is_on: button_c
              then:
                - light.toggle: led_status
                - homeassistant.event:
                    event: esphome.on_gesture
                    data:
                      button: "C"
                      gesture: "button_hold"
                - delay: 100ms
          - light.turn_off: led_status

light:
  # Physical pin to the connection status LED
  # We don't expose this to the HA UI (internal)
  - platform: status_led
    name: "LED"
    id: led_status
    pin:
      number: GPIO05
      inverted: true
    internal: true
    restore_mode: RESTORE_DEFAULT_ON

  # HA UI connection to the background brightness (PWM) pin
  - platform: monochromatic
    output: pwm_output
    name: "Background Brightness"
    restore_mode: RESTORE_DEFAULT_OFF
    icon: "mdi:led-outline"
    entity_category: "config"
