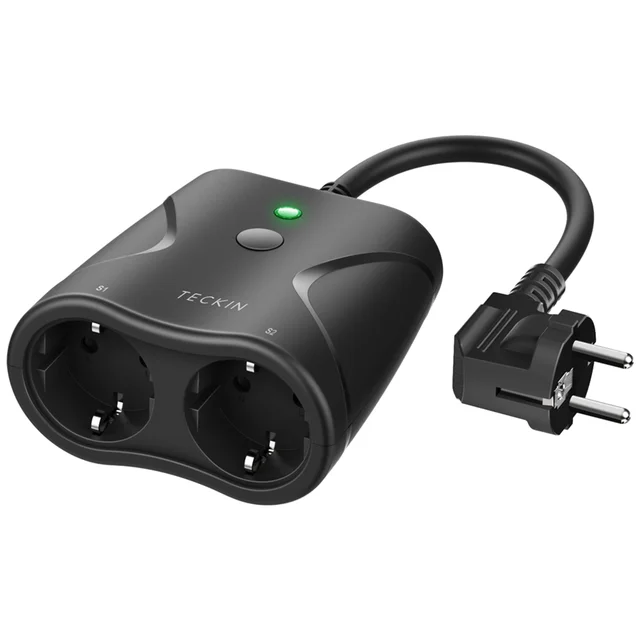

Teckin SS42

GPIO Pinout

Pin	Function
GPIO04	Status LED1
GPIO05	Status LED2
GPIO13	Push Button
GPIO12	Relay 1
GPIO14	Relay 2

Basic Configuration

# Basic Config
---
esphome:
  name: outdoor_ss42

esp8266:
  board: esp8285

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  manual_ip:
    static_ip: !secret outdoor_ss42_ip
    gateway: !secret house_gateway
    subnet: 255.255.255.0

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: !secret api_encryption_key

ota:
  password: !secret outdoor_ss42_ota

sensor:
  - platform: wifi_signal
    name: "Outdoor SS42 WiFi signal"
    update_interval: 60s

  - platform: uptime
    name: "Outdoor SS42 uptime"

text_sensor:
  - platform: version
    name: "Outdoor SS42 ESPHome version"

switch:
  - platform: gpio
    name: "Relay 1"
    pin: GPIO12
    id: relay1
    restore_mode: RESTORE_DEFAULT_OFF
    on_turn_off:
      if:
        condition:
          - switch.is_on: led1
        then:
          - switch.turn_off: led1
    on_turn_on:
      if:
        condition:
          - switch.is_off: led1
        then:
          - switch.turn_on: led1
  - platform: gpio
    name: "Relay 2"
    pin: GPIO14
    id: relay2
    restore_mode: RESTORE_DEFAULT_OFF
    on_turn_off:
      if:
        condition:
          - switch.is_on: led2
        then:
          - switch.turn_off: led2
    on_turn_on:
      if:
        condition:
          - switch.is_off: led2
        then:
          - switch.turn_on: led2
  - platform: gpio
    id: led1
    pin:
      number: GPIO4
      inverted: True
  - platform: gpio
    id: led2
    pin:
      number: GPIO5
      inverted: True

binary_sensor:
  - platform: gpio
    name: "Teckin SS42 Button"
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: true
    internal: true
    on_press:
      # Prevents unintended LED lit states.
      if:
        condition:
          - switch.is_off: relay1
        then:
          - switch.turn_on: led1
          - switch.turn_on: relay1
        else:
          - switch.turn_off: relay1
    on_double_click:
      if:
        condition:
          - switch.is_off: relay2
        then:
          - switch.turn_on: led2
          - switch.turn_on: relay2
        else:
          - switch.turn_off: relay2
  - platform: status
    name: "Outdoor SS42 Status"
