Athom E27 15W Bulb

Manufacturer: Athom.tech

Flashing Procedure

Natively runs Tasmota, upload ESPHome binary to flash wirelessly.

Bulb Specifications

Color: RGB+Warm+Cold White Color Temperature: 3000-6000K Brightness: 1400 lumens Voltage: 110V~250V Power: 15W Base: E27

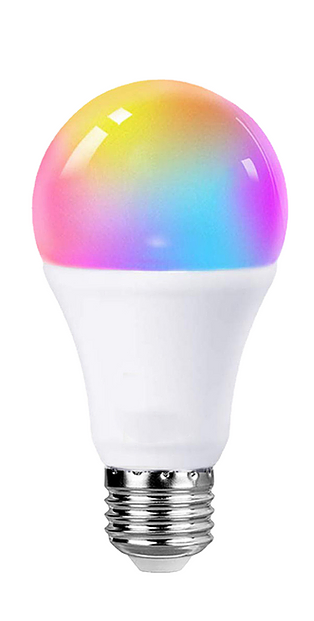

Product Images

GPIO Pinout

Pin	Function
GPIO13	CT Output
GPIO5	CT Brightness Output
GPIO4	Red Output
GPIO12	Green Output
GPIO14	Blue Output

Basic Configuration

substitutions:
  device_name: "athom-rgbct-light"
  friendly_name: "Athom RGBCT Light"
  project_name: "athom.rgbct-light"
  project_version: "1.0"

esphome:
  name: "${device_name}"
  name_add_mac_suffix: true
  project:
    name: "${project_name}"
    version: "${project_version}"

esp8266:
  board: esp8285

api:

ota:

logger:

web_server:
  port: 80

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

captive_portal:

binary_sensor:
  - platform: status
    name: "${friendly_name} Status"

sensor:
  - platform: uptime
    name: "${friendly_name} Uptime Sensor"

switch:
  - platform: restart
    id: restart_switch
    name: "${friendly_name} Restart"

output:
  - platform: esp8266_pwm
    id: red_output
    pin: GPIO4
  - platform: esp8266_pwm
    id: green_output
    pin: GPIO12
  - platform: esp8266_pwm
    id: blue_output
    pin: GPIO14
  - platform: esp8266_pwm
    id: white_output
    pin: GPIO5
  - platform: esp8266_pwm
    id: ct_output
    inverted: true
    pin: GPIO13

light:
  - platform: rgbct
    restore_mode: RESTORE_DEFAULT_ON
    name: "${friendly_name}"
    red: red_output
    green: green_output
    blue: blue_output
    white_brightness: white_output
    color_temperature: ct_output
    cold_white_color_temperature: 153 mireds
    warm_white_color_temperature: 500 mireds
    color_interlock: true

text_sensor:
  - platform: wifi_info
    ip_address:
      name: "${friendly_name} IP Address"
      disabled_by_default: true
