Device Type:light
Electrical Standard:us
Board:esp8266

Athom GU10 Bulb

Manufacturer: Athom.tech

Flashing Procedure​

Natively runs Tasmota, upload ESPHome binary to flash wirelessly.

Bulb Specifications​

Color: RGB+Warm+Cold White Color Temperature: 3000-6000K Brightness: 300 lumens Voltage: 110V~240V Power: 4.5W Base: GU10

Product Images​

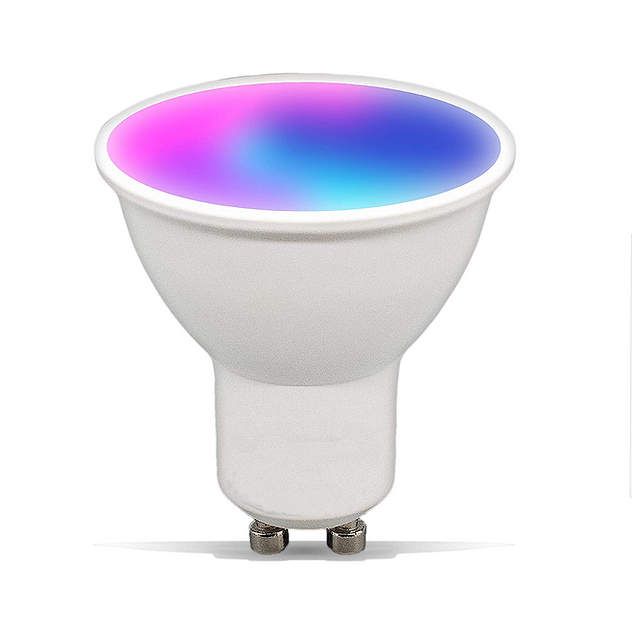

Athom GU10 Bulb

GPIO Pinout​

PinFunction
GPIO13CT Output
GPIO5CT Brightness Output
GPIO4Red Output
GPIO12Green Output
GPIO14Blue Output

Basic Configuration​

substitutions:
  device_name: "athom-rgbww-light"
  friendly_name: "Athom RGBWW Light"
  project_name: "athom.rgbww-light"
  project_version: "1.0"

esphome:
  name: "${device_name}"
  name_add_mac_suffix: true
  project:
    name: "${project_name}"
    version: "${project_version}"

esp8266:
  board: esp8285

api:

ota:

logger:

web_server:
  port: 80

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

captive_portal:

binary_sensor:
  - platform: status
    name: "${friendly_name} Status"

sensor:
  - platform: uptime
    name: "${friendly_name} Uptime Sensor"

switch:
  - platform: restart
    id: restart_switch
    name: "${friendly_name} Restart"

output:
  - platform: esp8266_pwm
    id: red_output
    pin: GPIO4
  - platform: esp8266_pwm
    id: green_output
    pin: GPIO12
  - platform: esp8266_pwm
    id: blue_output
    pin: GPIO14
  - platform: esp8266_pwm
    id: warm_white_output
    pin: GPIO13
  - platform: esp8266_pwm
    id: white_output
    pin: GPIO5

light:
  - platform: rgbww
    name: "${friendly_name}"
    red: red_output
    green: green_output
    blue: blue_output
    warm_white: warm_white_output
    cold_white: white_output
    cold_white_color_temperature: 6000 K
    warm_white_color_temperature: 3000 K
    color_interlock: true

text_sensor:
  - platform: wifi_info
    ip_address:
      name: "${friendly_name} IP Address"
      disabled_by_default: true
