Made for ESPHome
Device Type:relay
Electrical Standard:global
Board:esp32-c3
Difficulty:Comes with ESPhome (1/5)
Project URL:https://github.com/athom-tech/esp32-configs/blob/main/athom-mini-relay-v2.yaml

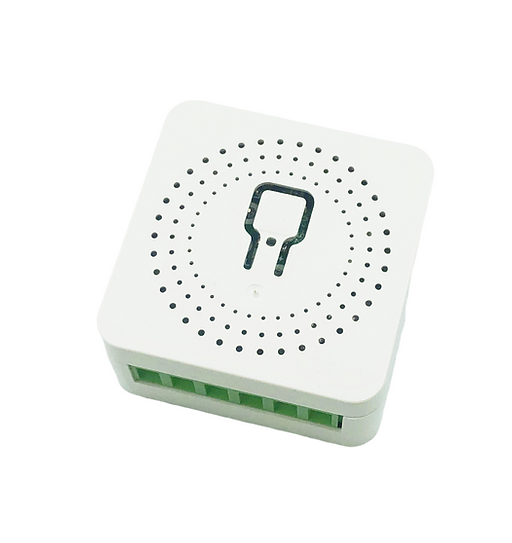

Athom Mini Relay (RS01C3)

alt text

Maker: https://www.athom.tech/ Product page: https://www.athom.tech/blank-1/esp32c3-3-way-relay-for-esphome

Also on Aliexpress, available pre-flashed with ESPHome or Tasmota.

Description​

Mini relay switch with built-in power monitoring

Maximum support current 10A

GPIO Pinout​

PinFunction
GPIO3Button
GPIO4Switch
GPIO6Relay
GPIO7Led
GPIO20CSE7766 RX

Basic Configuration​

The Latest configuration can be found on Athom's GitHub repo.
