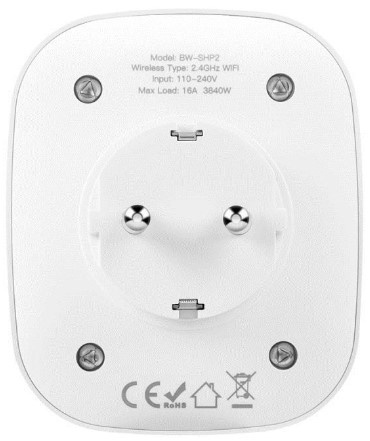

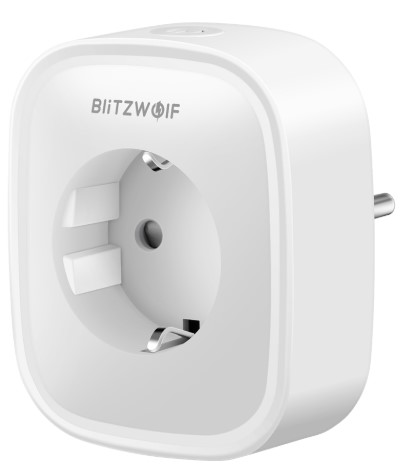

BlitzWolf BW-SHP2 Power Monitoring Plug

Model reference: BW-SHP2

Manufacturer: BlitzWolf

⚠ WARNING: Latest hardware revision has replaced the ESP chip, and is no longer compatible with ESPHome.

GPIO Pinout

Base Hardware - GPIO Pinout

Pin	Function
GPIO13	Push Button
GPIO00	Blue LED (Inverted: true)
GPIO02	Red LED (Inverted: true)
GPIO15	Relay
GPIO12	HLWBL SEL Pin
GPIO05	HLW8012 CF Pin
GPIO14	HLWBL CF1 Pin

Hardware Revision (v2.3) - GPIO Pinout

Pin	Function
GPIO03	Push Button
GPIO01	Blue LED (Inverted: true)
GPIO13	Red LED (Inverted: true)
GPIO14	Relay
GPIO12	HLWBL SEL Pin
GPIO04	HLW8012 CF Pin
GPIO05	HLWBL CF1 Pin

Basic Config

Base Hardware - Base Config

substitutions:
  devicename: blitzwolf_bw_shp2_plug_1
  friendly_name: BlitzWolf BW-SHP2 Plug 1
  device_description: BlitzWolf BW-SHP2 Power Monitoring Plug with button, Red and Blue led.
  current_res: "0.00221" # Random value. Requires power monitoring calibration
  voltage_div: "955" # Random value. Requires power monitoring calibration

esphome:
  name: ${devicename}
  comment: ${device_description}

esp8266:
  board: esp8285

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

captive_portal:

# Enable logging
logger:

# Web server can be removed after enabling HA API
#web_server:
#  port: 80

# Enable Home Assistant API
api:
  encryption:
    key: !secret api_encryption_key

ota:
  password: !secret OTA_Password

# Enable time component for use by daily power sensor
time:
  - platform: homeassistant
    id: homeassistant_time

sensor:
# Reports how long the device has been powered (in minutes)
  - platform: uptime
    name: ${friendly_name} Uptime
    filters:
      - lambda: return x / 60.0;
    unit_of_measurement: minutes

# Reports the WiFi signal strength
  - platform: wifi_signal
    name: ${friendly_name} Wifi Signal
    update_interval: 60s

# Reports the Current, Voltage, and Power used by the plugged-in device
  - platform: hlw8012
    sel_pin:
      number: GPIO12
      inverted: true
    cf_pin: GPIO05
    cf1_pin: GPIO14
    change_mode_every: 8
    update_interval: 10s
    current:
      name: ${friendly_name} Amperage
      icon: mdi:current-ac
      unit_of_measurement: A
    voltage:
      name: ${friendly_name} Voltage
      icon: mdi:flash-circle
      unit_of_measurement: V
    power:
      id: wattage
      name: ${friendly_name} Wattage
      icon: mdi:flash-outline
      unit_of_measurement: W
    current_resistor: ${current_res}
    voltage_divider: ${voltage_div}

  # Reports the total Power so-far each day, resets at midnight, see https://esphome.io/components/sensor/total_daily_energy.html
  - platform: total_daily_energy
    name: ${friendly_name} Total Daily Energy
    icon: mdi:circle-slice-3
    power_id: wattage
    filters:
      # Multiplication factor from W to kW is 0.001
      - multiply: 0.001
    unit_of_measurement: kWh

binary_sensor:
# Button on the front is pressed and then toggle relay
  - platform: gpio
    device_class: power
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: True
    name: ${friendly_name} Button # Name to make button visible in HA
    on_press:
      - switch.toggle: relay

text_sensor:
# Reports the ESPHome Version with compile date
  - platform: version
    name: ${friendly_name} ESPHome Version

# Reports detailed wifi info, can be commented out
  - platform: wifi_info
    ip_address:
      name: ${friendly_name} IP Address
    # ssid: # Some additional wifi info that is not normally needed
    #   name: ${friendly_name} Connected SSID
    # bssid:
    #   name: ${friendly_name} Connected BSSID

switch:
# Relay itself
  - platform: gpio
    name: ${friendly_name}
    pin: GPIO15
    id: relay
    restore_mode: RESTORE_DEFAULT_OFF #Try to restore relay state after reboot/power-loss event.
    #RESTORE_DEFAULT_OFF (Default) - Attempt to restore state and default to OFF if not possible to restore. Uses flash write cycles.
    #RESTORE_DEFAULT_ON - Attempt to restore state and default to ON. Uses flash write cycles.
    #ALWAYS_OFF - Always initialize the pin as OFF on bootup. Does not use flash write cycles.
    #ALWAYS_ON - Always initialize the pin as ON on bootup. Does not use flash write cycles.
    on_turn_on: # Action when relay is turned on
      - script.execute: led_power_on
    on_turn_off: # Action when relay is turned off
      - script.execute: led_relay_off

output:
# Output GPIOs for blue led
- platform: esp8266_pwm # Blue
  id: ${devicename}_blue_output
  pin:
    number: GPIO00
    inverted: True

status_led:
  pin:
    number: GPIO02
    inverted: True

light:
# RGB light
- platform: monochromatic
  name: ${friendly_name} Light
  output: ${devicename}_blue_output
  id: ${devicename}_blue_led

# Blink the blue light if we aren't connected to WiFi. Could use https://esphome.io/components/status_led.html instead but then we couldn't use the blue light for other things as well.
# Only if not connected after 30s
interval:
  - interval: 2000ms
    then:
      - if:
          condition:
            for:
              time: 30s
              condition:
                not:
                  wifi.connected:
          then:
            - light.turn_on:
                id: ${devicename}_blue_led
                brightness: 100%

script:
  - id: led_relay_off # Normal operation when relay is off
    then:
      - light.turn_off:
          id: ${devicename}_blue_led
  - id: led_power_on # Normal operation when relay is on
    then:
      - light.turn_on:
          id: ${devicename}_blue_led
          brightness: 80%

Hardware Revision (v2.3) - Base Config

substitutions:
  devicename: blitzwolf_bw_shp2_plug_1
  friendly_name: BlitzWolf BW-SHP2 Plug 1
  device_description: BlitzWolf BW-SHP2 Power Monitoring Plug with button, Red and Blue led.
  current_res: "0.00221" # Random value. Requires power monitoring calibration
  voltage_div: "955" # Random value. Requires power monitoring calibration

esphome:
  name: ${devicename}
  comment: ${device_description}

esp8266:
  board: esp8285

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

captive_portal:

# Enable logging
logger:

# Web server can be removed after enabling HA API
#web_server:
#  port: 80

# Enable Home Assistant API
api:
  encryption:
    key: !secret api_encryption_key

ota:
  password: !secret OTA_Password

# Enable time component for use by daily power sensor
time:
  - platform: homeassistant
    id: homeassistant_time

sensor:
# Reports how long the device has been powered (in minutes)
  - platform: uptime
    name: ${friendly_name} Uptime
    filters:
      - lambda: return x / 60.0;
    unit_of_measurement: minutes

# Reports the WiFi signal strength
  - platform: wifi_signal
    name: ${friendly_name} Wifi Signal
    update_interval: 60s

# Reports the Current, Voltage, and Power used by the plugged-in device
  - platform: hlw8012
    sel_pin:
      number: GPIO12
      inverted: true
    cf_pin: GPIO04
    cf1_pin: GPIO05
    change_mode_every: 8
    update_interval: 10s
    current:
      name: ${friendly_name} Amperage
      icon: mdi:current-ac
      unit_of_measurement: A
    voltage:
      name: ${friendly_name} Voltage
      icon: mdi:flash-circle
      unit_of_measurement: V
    power:
      id: wattage
      name: ${friendly_name} Wattage
      icon: mdi:flash-outline
      unit_of_measurement: W
    current_resistor: ${current_res}
    voltage_divider: ${voltage_div}

  # Reports the total Power so-far each day, resets at midnight, see https://esphome.io/components/sensor/total_daily_energy.html
  - platform: total_daily_energy
    name: ${friendly_name} Total Daily Energy
    icon: mdi:circle-slice-3
    power_id: wattage
    filters:
      # Multiplication factor from W to kW is 0.001
      - multiply: 0.001
    unit_of_measurement: kWh

binary_sensor:
# Button on the front is pressed and then toggle relay
  - platform: gpio
    device_class: power
    pin:
      number: GPIO03
      mode: INPUT_PULLUP
      inverted: True
    name: ${friendly_name} Button # Name to make button visible in HA
    on_press:
      - switch.toggle: relay

text_sensor:
# Reports the ESPHome Version with compile date
  - platform: version
    name: ${friendly_name} ESPHome Version

# Reports detailed wifi info, can be commented out
  - platform: wifi_info
    ip_address:
      name: ${friendly_name} IP Address
    # ssid: # Some additional wifi info that is not normally needed
    #   name: ${friendly_name} Connected SSID
    # bssid:
    #   name: ${friendly_name} Connected BSSID

switch:
# Relay itself
  - platform: gpio
    name: ${friendly_name}
    pin: GPIO14
    id: relay
    restore_mode: RESTORE_DEFAULT_OFF #Try to restore relay state after reboot/power-loss event.
    #RESTORE_DEFAULT_OFF (Default) - Attempt to restore state and default to OFF if not possible to restore. Uses flash write cycles.
    #RESTORE_DEFAULT_ON - Attempt to restore state and default to ON. Uses flash write cycles.
    #ALWAYS_OFF - Always initialize the pin as OFF on bootup. Does not use flash write cycles.
    #ALWAYS_ON - Always initialize the pin as ON on bootup. Does not use flash write cycles.
    on_turn_on: # Action when relay is turned on
      - script.execute: led_power_on
    on_turn_off: # Action when relay is turned off
      - script.execute: led_relay_off

output:
# Output GPIOs for blue led
- platform: esp8266_pwm # Blue
  id: ${devicename}_blue_output
  pin:
    number: GPIO01
    inverted: True

status_led:
  pin:
    number: GPIO13
    inverted: True

light:
# RGB light
- platform: monochromatic
  name: ${friendly_name} Light
  output: ${devicename}_blue_output
  id: ${devicename}_blue_led

# Blink the blue light if we aren't connected to WiFi. Could use https://esphome.io/components/status_led.html instead but then we couldn't use the blue light for other things as well.
# Only if not connected after 30s
interval:
  - interval: 2000ms
    then:
      - if:
          condition:
            for:
              time: 30s
              condition:
                not:
                  wifi.connected:
          then:
            - light.turn_on:
                id: ${devicename}_blue_led
                brightness: 100%

script:
  - id: led_relay_off # Normal operation when relay is off
    then:
      - light.turn_off:
          id: ${devicename}_blue_led
  - id: led_power_on # Normal operation when relay is on
    then:
      - light.turn_on:
          id: ${devicename}_blue_led
          brightness: 80%
