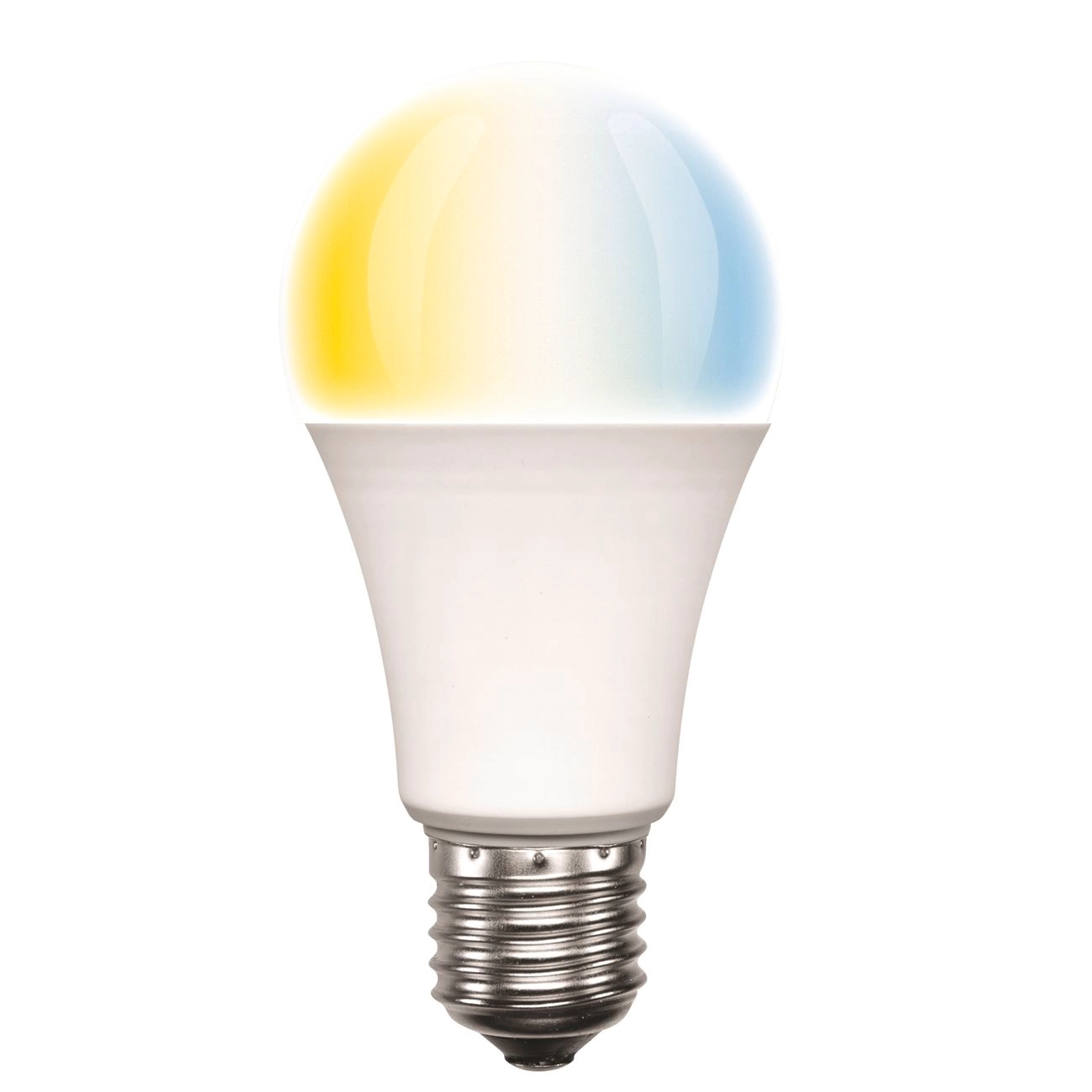

Brilliant Smart 20696/20874 WiFi A60 LED 8.5W 800LM CCT light

Device Info

This light globe is sold is Australia. SKU: 20696/20874

• Bunnings
• OfficeWorks

GPIO Pinout

Pin	Function
GPIO12	Warm white color temperature
GPIO14	Cold white color temperature

Basic Configuration

substitutions:
  device_name: brilliantsmart-cct-light
  friendly_name: BrilliantSmart CCT Light
  device_description: Brilliant Lighting BL20696 8.5W 800lm globe with CCT support.

esphome:
  name: $device_name
  comment: $device_description

esp8266:
  board: esp01_1m
  restore_from_flash: true

logger:
api:
  encryption:
    key: !secret api_encryption_key

ota:
  password: "password"
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

captive_portal:

output:
  - platform: esp8266_pwm
    id: ww_color_temp
    pin: GPIO12
  - platform: esp8266_pwm
    id: cw_color_temp
    pin: GPIO14

light:
  - platform: cwww
    name: $friendly_name
    cold_white: cw_color_temp
    warm_white: ww_color_temp
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
