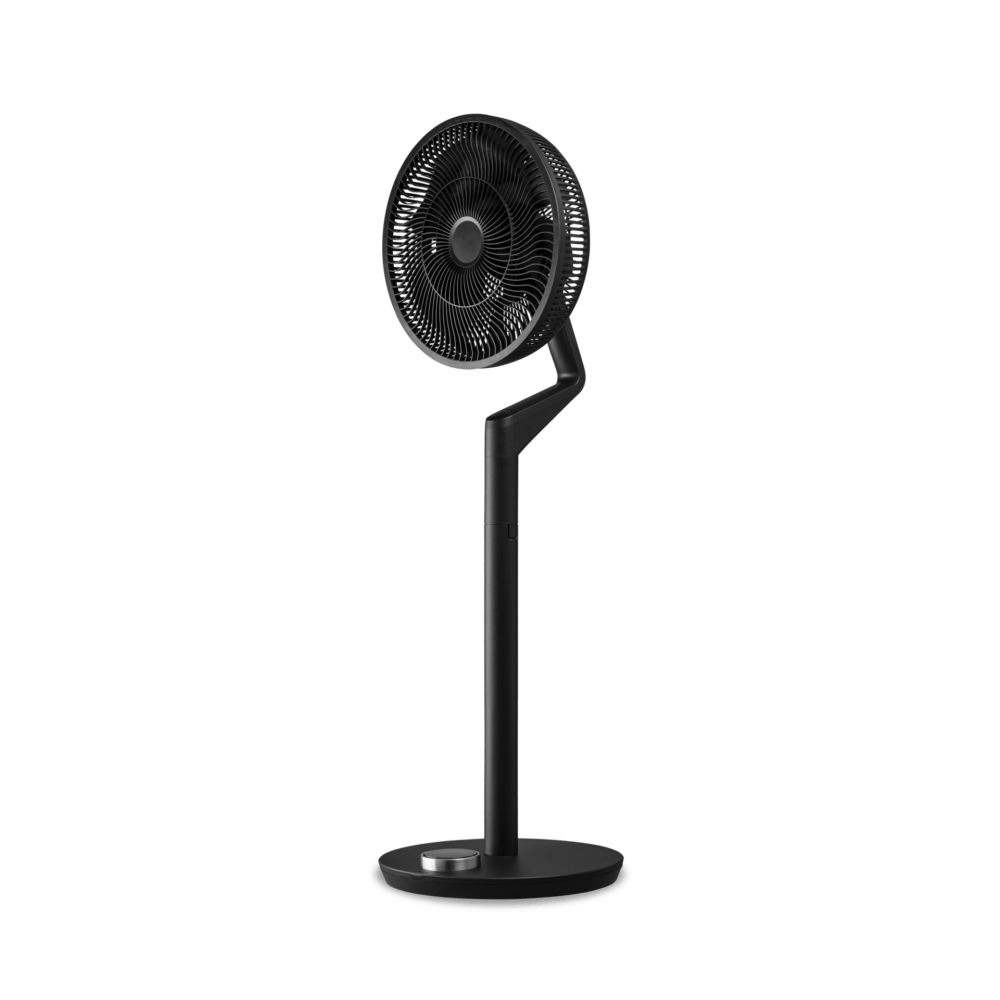

Duux Whisper Flex Ultimate Smart Fan (DXCF14)

GPIO Pinout

Pin	Function
GPIO00	Nono
GPIO01	None
GPIO02	None
GPIO03	None
GPIO04	None
GPIO05	None
GPIO09	None
GPIO10	None
GPIO12	None
GPIO13	Tuya Rx
GPIO14	None
GPIO15	Tuya Tx
GPIO16	None
FLAG	None

Basic Configuration

substitutions:
  devicename: "smart-fan"

esphome:
  name: $devicename
  comment: "Duux Whisper Flex Ultimate Smart Fan (DXCF14)"
  friendly_name: "Duux Whisper Flex Ultimate Smart Fan"
  project:
    name: "Duux.Whisper-Flex-Ultimate-Smart-Fan"
    version: "1.0.0"

esp8266:
  board: esp07
  restore_from_flash: true

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key:

ota:
  password:

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid:
    password:

captive_portal:

time:
  - platform: homeassistant
    id: homeassistant_time

# Enable Web server
web_server:
  port: 80

uart:
  tx_pin: GPIO15
  rx_pin: GPIO13
  baud_rate: 9600

# Register the Tuya MCU connection
tuya:

fan:
  - platform: "tuya"
    name: None
    switch_datapoint: 1
    speed_datapoint: 3
    speed_count: 30

select:
  - platform: "tuya"
    id: "horizontally"
    name: "Oscillate horizontally"
    enum_datapoint: 4
    optimistic: true
    options:
      0: "off"
      1: "30"
      2: "60"
      3: "90"

  - platform: "tuya"
    id: "vertically"
    name: "Oscillate vertically"
    enum_datapoint: 5
    optimistic: true
    options:
      0: "off"
      1: "90"
      2: "105"

  - platform: "tuya"
    name: "Mode"
    enum_datapoint: 2
    optimistic: true
    options:
      0: "Manual Mode"
      1: "Natural Mode"
      2: "Sleep Mode"

  - platform: "tuya"
    name: "Timer"
    icon: mdi:fan-clock
    enum_datapoint: 6
    optimistic: true
    options:
      0: "off"
      1: "1h"
      2: "2h"
      3: "3h"
      4: "4h"
      5: "5h"
      6: "6h"
      7: "7h"
      8: "8h"
      9: "9h"
      10: "10h"
      11: "11h"
      12: "12h"

sensor:
  - platform: wifi_signal
    name: "Wifi Signal"
    update_interval: 60s
    icon: mdi:wifi

  - platform: uptime
    name: "Uptime"
    update_interval: 60s
    icon: mdi:clock-outline

text_sensor:
  - platform: wifi_info
    ip_address:
      name: "IP Address"
    ssid:
      name: "Wi-Fi SSID"
    bssid:
      name: "Wi-Fi BSSID"
  - platform: version
    name: "ESPHome Version"
    hide_timestamp: true
