ESP32 Relay Board x8

Product description

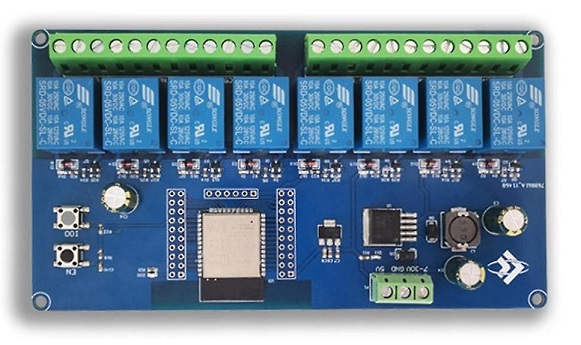

This is a 8-relay board with an ESP32-WROOM-E.
Each relay has COM+NO+NC exposed. Product descriptions don't seem to specify maximum load. Each relay supports 10Amp max load, acconding to the label.
The board can be powered either via 7-30VDC or via 5VDC (separate connectors). It draws about 100mA with the relays off, and just over 500mA with all the relays on.
I bought it from: https://www.aliexpress.us/item/3256802045374301.html
GPIO Pinout
This board has headers for every GPIO pin on its ESP32.
| Pin | Comment |
|---|---|
| 5V | Do not use 5V for programming |
| TX | Exposed on board 3.3V level! |
| RX | Exposed on board 3.3V level! |
| GND | |
| GND | |
| GPIO0 | 3.3V level! (Connected to a push button for programing) |
| GPIO23 | On-board general purpose LED |
| GPIO32 | Relay 1 |
| GPIO33 | Relay 2 |
| GPIO25 | Relay 3 |
| GPIO26 | Relay 4 |
| GPIO27 | Relay 5 |
| GPIO14 | Relay 6 |
| GPIO12 | Relay 7 |
| GPIO13 | Relay 8 |
Basic Config
esphome:
  name: ESP32 relayboard
esp32:
  board: esp32dev
# Status LED
light:
  - platform: status_led
    name: "RelayBoard Led"
    restore_mode: ALWAYS_ON
    pin:
      number: GPIO23
# 8 relay outputs, exposed as switches in Home Assistant
switch:
  - platform: gpio
    pin: GPIO32
    name: Relay1
    id: relay1
  - platform: gpio
    pin: GPIO33
    name: Relay2
    id: relay2
  - platform: gpio
    pin: GPIO25
    name: Relay3
    id: relay3
  - platform: gpio
    pin: GPIO26
    name: Relay4
    id: relay4
  - platform: gpio
    pin: GPIO27
    name: Relay5
    id: relay5
  - platform: gpio
    pin: GPIO14
    name: Relay6
    id: relay6
  - platform: gpio
    pin: GPIO12
    name: Relay7
    id: relay7
  - platform: gpio
    pin: GPIO13
    name: Relay8
    id: relay8
