ESP32S3-1.8-inch JC3636K518C
Product specs
| Feature | Spec |
|---|---|
| Screen | ST77916 driver 360*360 |
| Touch screen | CST816 |
| CPU | ESP32-S3 & ESP32 |
| Flash | 16MB |
| PSRAM | 8MB |
Product description

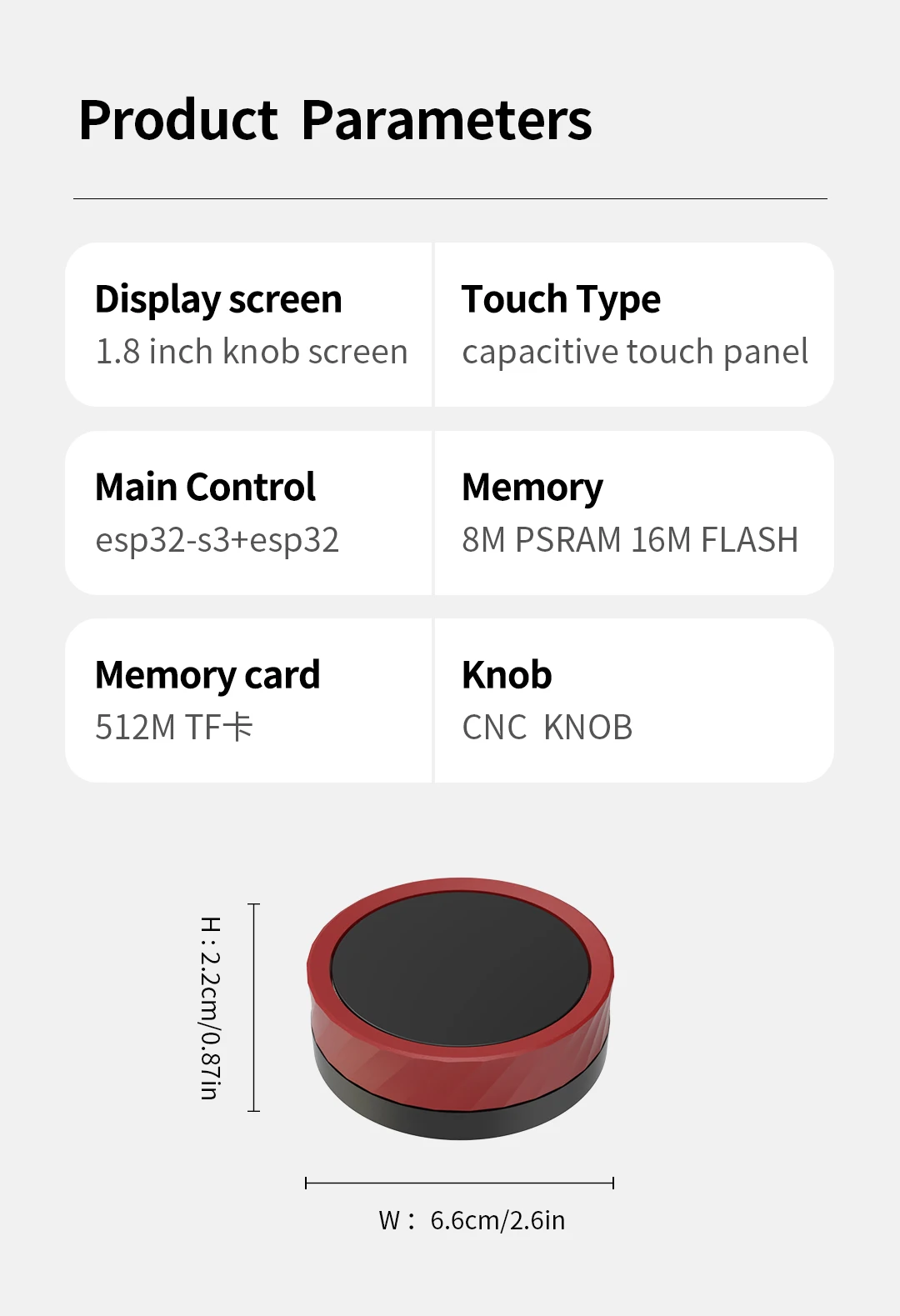

A pretty red metal rotatable knob with build-in 1.85inch IPS display. It integrates an esp32s3 as well as an esp32 microcontroller. Avalible on AliExpress for ~$25.
A blue version is available from Waveshare.
Basic Config
substitutions:
name: "JC3636K518C"
friendly_name: "360knob-basic"
device_description: "ESP32S3-1.8-inch JC3636K518C"
project_name: "JC3636K518C"
project_version: "1.0.0"
esphome:
name: "${name}"
friendly_name: "${friendly_name}"
project:
name: "${project_name}"
version: "${project_version}"
platformio_options:
board_build.flash_mode: dio
board_build.f_flash: 80000000L
board_build.f_cpu: 240000000L
esp32:
board: esp32-s3-devkitc-1
flash_size: 16MB
framework:
type: esp-idf
sdkconfig_options:
CONFIG_ESP32S3_DEFAULT_CPU_FREQ_240: "y"
CONFIG_ESP32S3_DATA_CACHE_64KB: "y"
CONFIG_ESP32S3_DATA_CACHE_LINE_64B: "y"
CONFIG_SPIRAM_FETCH_INSTRUCTIONS: y
CONFIG_SPIRAM_RODATA: y
psram:
mode: octal
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: !secret encryption_key
ota:
- platform: esphome
password: !secret ota_key
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "${friendly_name} Fallback Hotspot"
password: "6T3RFWEF71"
spi:
id: display_qspi
type: quad
clk_pin: 13
data_pins: [15, 16, 17, 18]
i2c:
sda: 11
scl: 12
id: touchscreen_bus
i2s_audio:
- id: i2s_in
i2s_lrclk_pin: GPIO45
microphone:
- platform: i2s_audio
id: i2s_microphone
i2s_audio_id: i2s_in
i2s_din_pin: GPIO46
adc_type: external
pdm: false
channel: left
sample_rate: 16000
bits_per_sample: 32bit
touchscreen:
platform: cst816
id: my_touchscreen
interrupt_pin: GPIO9
reset_pin: GPIO10
on_release:
- if:
condition: lvgl.is_paused
then:
- logger.log: "LVGL resuming"
- lvgl.resume:
- lvgl.widget.redraw:
- light.turn_on: display_backlight
light:
- platform: monochromatic
id: display_backlight
name: "Backlight"
output: backlight_pwm
default_transition_length:
milliseconds: 0
initial_state:
brightness: 100%
restore_mode: ALWAYS_ON
output:
- platform: ledc
pin:
number: GPIO47
id: backlight_pwm
display:
- platform: qspi_dbi
model: CUSTOM
data_rate: 80MHz
color_order: rgb
dimensions:
height: 360
width: 360
cs_pin: 14
reset_pin: 21
invert_colors: true
auto_clear_enabled: false
init_sequence:
- [0xF0, 0x28]
- [0xF2, 0x28]
- [0x73, 0xF0]
- [0x7C, 0xD1]
- [0x83, 0xE0]
- [0x84, 0x61]
- [0xF2, 0x82]
- [0xF0, 0x00]
- [0xF0, 0x01]
- [0xF1, 0x01]
- [0xB0, 0x56]
- [0xB1, 0x4D]
- [0xB2, 0x24]
- [0xB4, 0x87]
- [0xB5, 0x44]
- [0xB6, 0x8B]
- [0xB7, 0x40]
- [0xB8, 0x86]
- [0xBA, 0x00]
- [0xBB, 0x08]
- [0xBC, 0x08]
- [0xBD, 0x00]
- [0xC0, 0x80]
- [0xC1, 0x10]
- [0xC2, 0x37]
- [0xC3, 0x80]
- [0xC4, 0x10]
- [0xC5, 0x37]
- [0xC6, 0xA9]
- [0xC7, 0x41]
- [0xC8, 0x01]
- [0xC9, 0xA9]
- [0xCA, 0x41]
- [0xCB, 0x01]
- [0xD0, 0x91]
- [0xD1, 0x68]
- [0xD2, 0x68]
- [0xF5, 0x00, 0xA5]
- [0xDD, 0x4F]
- [0xDE, 0x4F]
- [0xF1, 0x10]
- [0xF0, 0x00]
- [0xF0, 0x02]
- [
0xE0,
0xF0,
0x0A,
0x10,
0x09,
0x09,
0x36,
0x35,
0x33,
0x4A,
0x29,
0x15,
0x15,
0x2E,
0x34,
]
- [
0xE1,
0xF0,
0x0A,
0x0F,
0x08,
0x08,
0x05,
0x34,
0x33,
0x4A,
0x39,
0x15,
0x15,
0x2D,
0x33,
]
- [0xF0, 0x10]
- [0xF3, 0x10]
- [0xE0, 0x07]
- [0xE1, 0x00]
- [0xE2, 0x00]
- [0xE3, 0x00]
- [0xE4, 0xE0]
- [0xE5, 0x06]
- [0xE6, 0x21]
- [0xE7, 0x01]
- [0xE8, 0x05]
- [0xE9, 0x02]
- [0xEA, 0xDA]
- [0xEB, 0x00]
- [0xEC, 0x00]
- [0xED, 0x0F]
- [0xEE, 0x00]
- [0xEF, 0x00]
- [0xF8, 0x00]
- [0xF9, 0x00]
- [0xFA, 0x00]
- [0xFB, 0x00]
- [0xFC, 0x00]
- [0xFD, 0x00]
- [0xFE, 0x00]
- [0xFF, 0x00]
- [0x60, 0x40]
- [0x61, 0x04]
- [0x62, 0x00]
- [0x63, 0x42]
- [0x64, 0xD9]
- [0x65, 0x00]
- [0x66, 0x00]
- [0x67, 0x00]
- [0x68, 0x00]
- [0x69, 0x00]
- [0x6A, 0x00]
- [0x6B, 0x00]
- [0x70, 0x40]
- [0x71, 0x03]
- [0x72, 0x00]
- [0x73, 0x42]
- [0x74, 0xD8]
- [0x75, 0x00]
- [0x76, 0x00]
- [0x77, 0x00]
- [0x78, 0x00]
- [0x79, 0x00]
- [0x7A, 0x00]
- [0x7B, 0x00]
- [0x80, 0x48]
- [0x81, 0x00]
- [0x82, 0x06]
- [0x83, 0x02]
- [0x84, 0xD6]
- [0x85, 0x04]
- [0x86, 0x00]
- [0x87, 0x00]
- [0x88, 0x48]
- [0x89, 0x00]
- [0x8A, 0x08]
- [0x8B, 0x02]
- [0x8C, 0xD8]
- [0x8D, 0x04]
- [0x8E, 0x00]
- [0x8F, 0x00]
- [0x90, 0x48]
- [0x91, 0x00]
- [0x92, 0x0A]
- [0x93, 0x02]
- [0x94, 0xDA]
- [0x95, 0x04]
- [0x96, 0x00]
- [0x97, 0x00]
- [0x98, 0x48]
- [0x99, 0x00]
- [0x9A, 0x0C]
- [0x9B, 0x02]
- [0x9C, 0xDC]
- [0x9D, 0x04]
- [0x9E, 0x00]
- [0x9F, 0x00]
- [0xA0, 0x48]
- [0xA1, 0x00]
- [0xA2, 0x05]
- [0xA3, 0x02]
- [0xA4, 0xD5]
- [0xA5, 0x04]
- [0xA6, 0x00]
- [0xA7, 0x00]
- [0xA8, 0x48]
- [0xA9, 0x00]
- [0xAA, 0x07]
- [0xAB, 0x02]
- [0xAC, 0xD7]
- [0xAD, 0x04]
- [0xAE, 0x00]
- [0xAF, 0x00]
- [0xB0, 0x48]
- [0xB1, 0x00]
- [0xB2, 0x09]
- [0xB3, 0x02]
- [0xB4, 0xD9]
- [0xB5, 0x04]
- [0xB6, 0x00]
- [0xB7, 0x00]
- [0xB8, 0x48]
- [0xB9, 0x00]
- [0xBA, 0x0B]
- [0xBB, 0x02]
- [0xBC, 0xDB]
- [0xBD, 0x04]
- [0xBE, 0x00]
- [0xBF, 0x00]
- [0xC0, 0x10]
- [0xC1, 0x47]
- [0xC2, 0x56]
- [0xC3, 0x65]
- [0xC4, 0x74]
- [0xC5, 0x88]
- [0xC6, 0x99]
- [0xC7, 0x01]
- [0xC8, 0xBB]
- [0xC9, 0xAA]
- [0xD0, 0x10]
- [0xD1, 0x47]
- [0xD2, 0x56]
- [0xD3, 0x65]
- [0xD4, 0x74]
- [0xD5, 0x88]
- [0xD6, 0x99]
- [0xD7, 0x01]
- [0xD8, 0xBB]
- [0xD9, 0xAA]
- [0xF3, 0x01]
- [0xF0, 0x00]
- [0xF0, 0x01]
- [0xF1, 0x01]
- [0xA0, 0x0B]
- [0xA3, 0x2A]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x2B]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x2C]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x2D]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x2E]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x2F]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x30]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x31]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x32]
- [0xA5, 0xC3]
- delay 1ms
- [0xA3, 0x33]
- [0xA5, 0xC3]
- delay 1ms
- [0xA0, 0x09]
- [0xF1, 0x10]
- [0xF0, 0x00]
- [0x2A, 0x00, 0x00, 0x01, 0x67]
- [0x2B, 0x01, 0x68, 0x01, 0x68]
- [0x4D, 0x00]
- [0x4E, 0x00]
- [0x4F, 0x00]
- [0x4C, 0x01]
- delay 10ms
- [0x4C, 0x00]
- [0x2A, 0x00, 0x00, 0x01, 0x67]
- [0x2B, 0x00, 0x00, 0x01, 0x67]
- [0x3A, 0x55]
- [0x21, 0x00]
- [0x11, 0x00]
- delay 120ms
- [0x29, 0x00]
time:
- platform: homeassistant
id: homeassistant_time
timezone: Europe/Berlin
on_time:
- hours: 2,3,4,5
minutes: 5
seconds: 0
then:
- switch.turn_on: switch_antiburn
- hours: 2,3,4,5
minutes: 35
seconds: 0
then:
- switch.turn_off: switch_antiburn
number:
- platform: template
name: LVGL Screen timeout
optimistic: true
id: display_timeout
unit_of_measurement: "s"
initial_value: 45
restore_value: true
min_value: 10
max_value: 180
step: 5
mode: box
switch:
- platform: template
name: Antiburn
id: switch_antiburn
icon: mdi:television-shimmer
optimistic: true
entity_category: "config"
turn_on_action:
- logger.log: "Starting Antiburn"
- if:
condition: lvgl.is_paused
then:
- lvgl.resume:
- lvgl.widget.redraw:
- lvgl.pause:
show_snow: true
turn_off_action:
- logger.log: "Stopping Antiburn"
- if:
condition: lvgl.is_paused
then:
- lvgl.resume:
- lvgl.widget.redraw:
lvgl:
on_idle:
timeout: !lambda "return (id(display_timeout).state * 1000);"
then:
- logger.log: "LVGL is idle"
- light.turn_off: display_backlight
- lvgl.pause:
