Generic USB Wifi Switch

General Notes

There are various models of these generic USB Wifi switches. They come with 1, 2, or 3 individually switchable USB output ports, but only the first passes data.

GPIO Pinout

Pin	Function
P6	LED
P7	Relay 1
P8	Button
P26	Relay 2
P24	Relay 3

Flashing

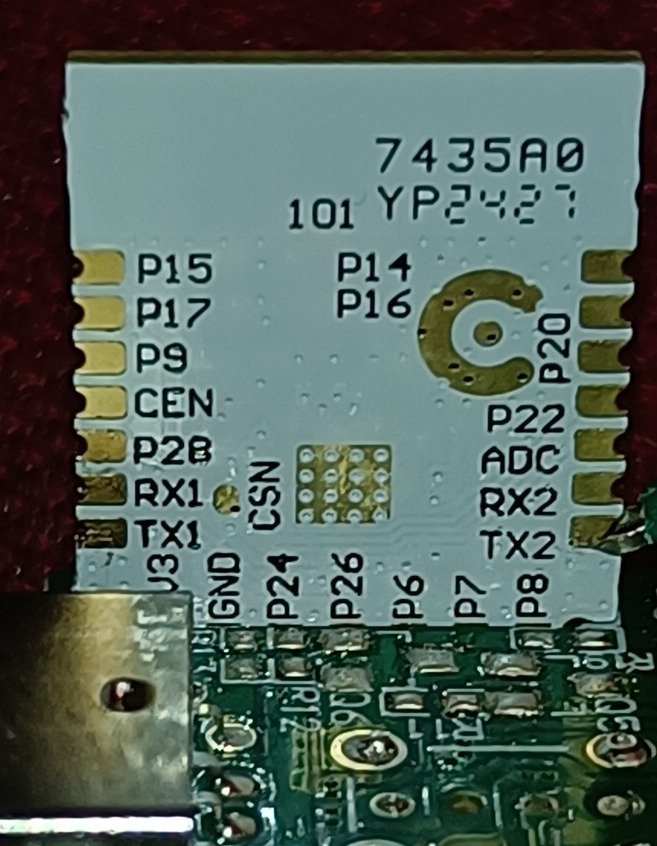

They use a Tuya CBU module with easily accessible flashing pins.

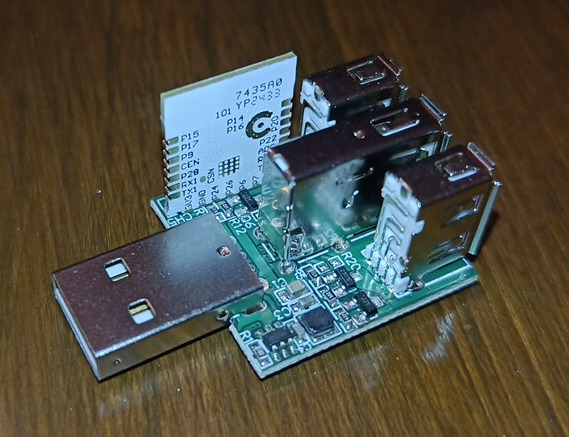

The 3 output model restricts access to the uart2 pins for logging, but they aren't necessary for flashing.

I used ltchiptool to backup the original firmware and flash an esphome uf2 binary to it.

Configuration

bk72xx:
  board: cbu

switch:
  - platform: gpio
    id: relay1
    name: "Relay 1"
    pin: 7
  - platform: gpio
    id: relay2
    name: "Relay 2"
    pin: 26
  - platform: gpio
    id: relay3
    name: "Relay 3"
    pin: 24

output:
  - platform: libretiny_pwm
    id: led
    pin: 6

light:
  - platform: monochromatic
    name: LED
    output: led

binary_sensor:
  - platform: gpio
    id: button
    pin:
      number: 8
      inverted: true
      mode: input_pullup
    name: Side button
    on_click:
      then:
        - switch.toggle: relay1
