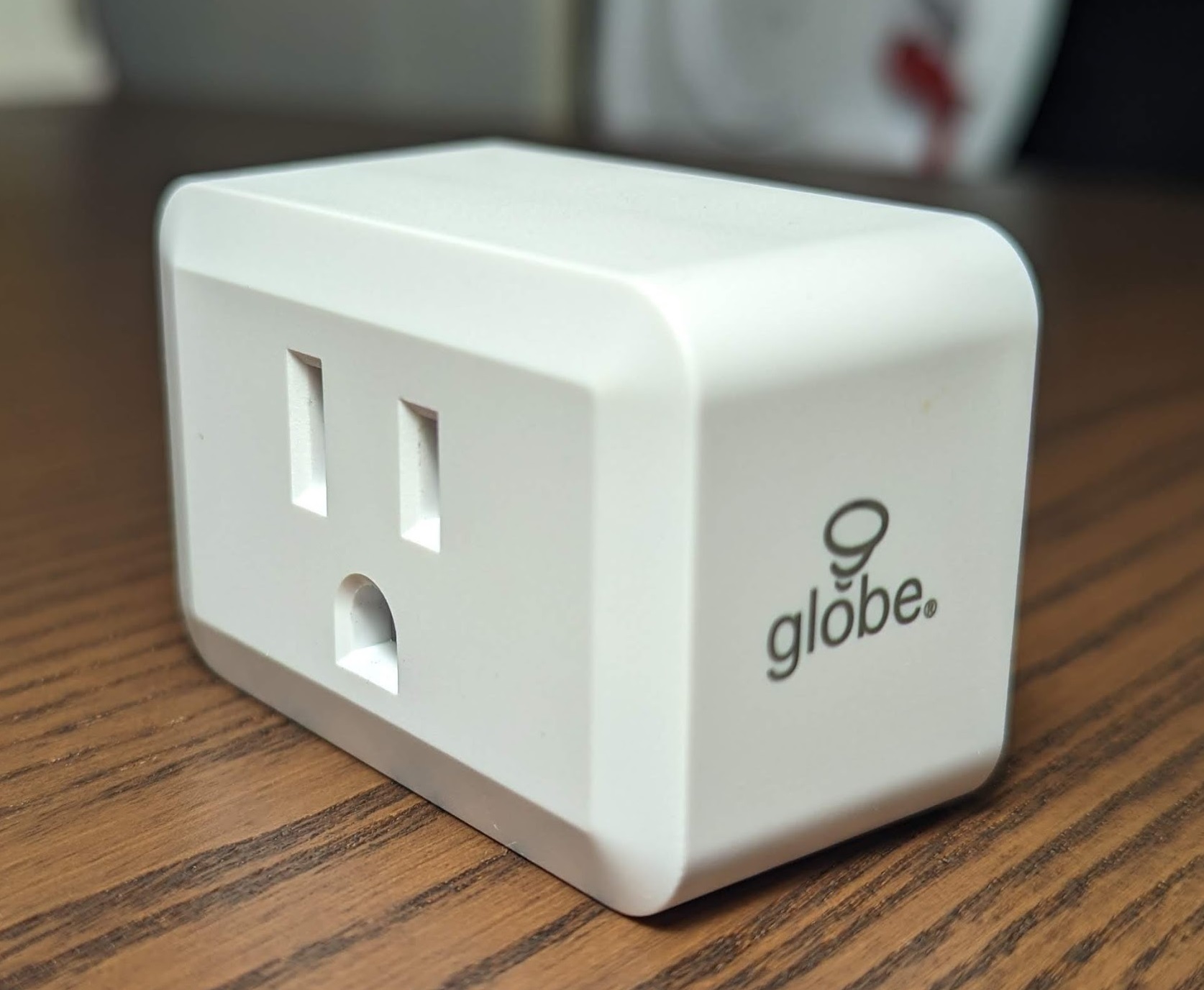

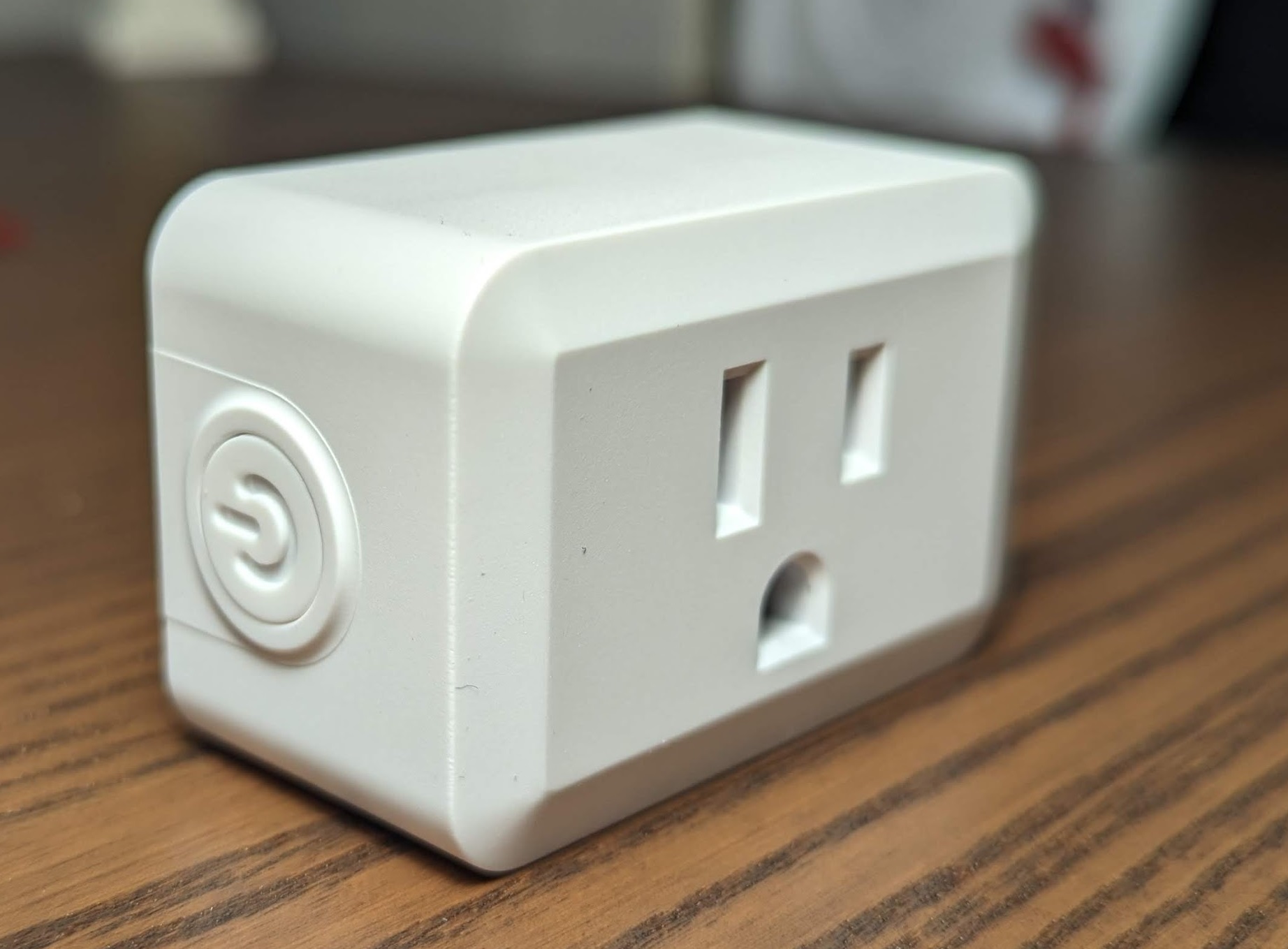

Globe Electric Wi-Fi Smart Plug 50359

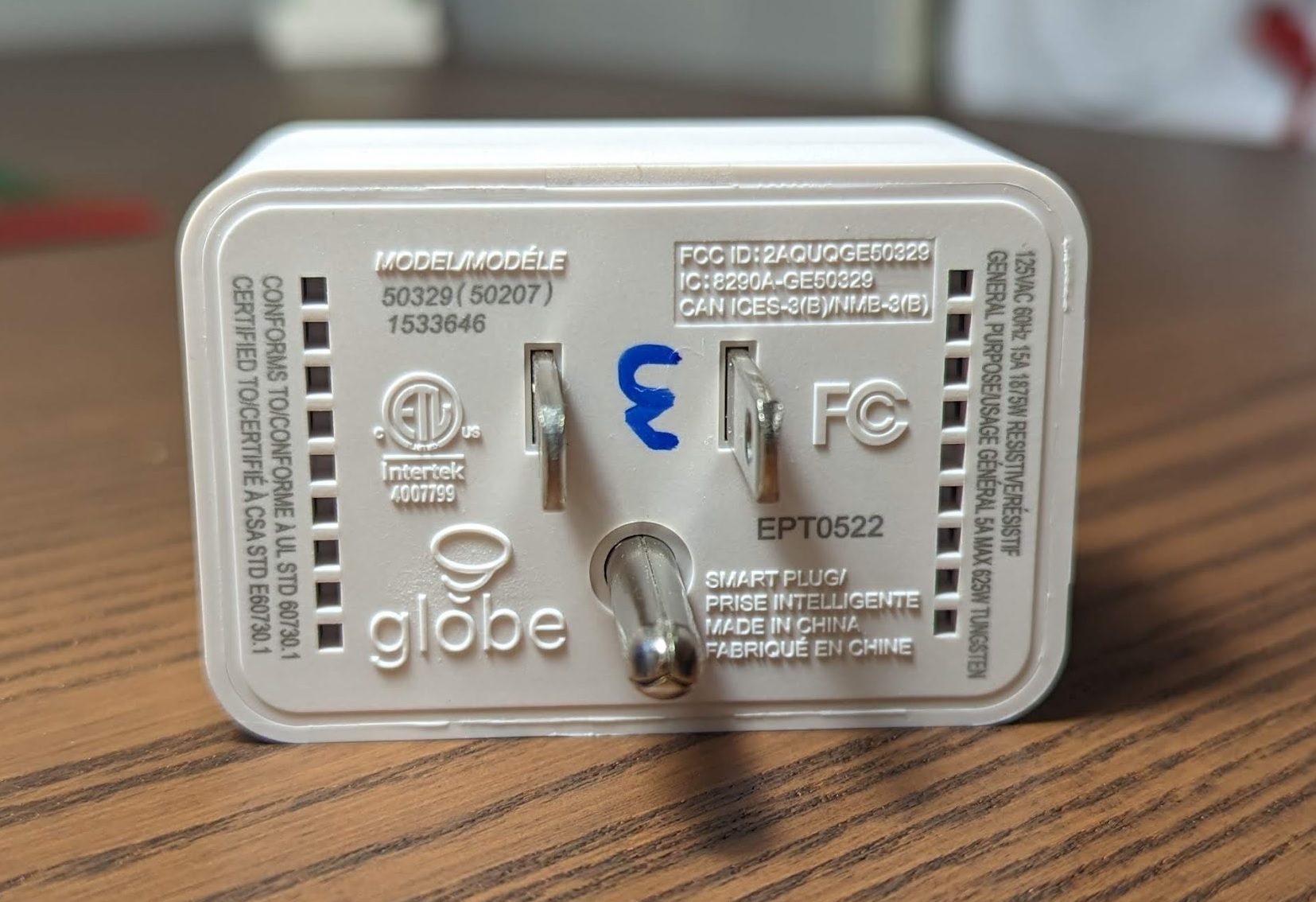

Sold at Costco model (50207)

Custom Firmware Needed

This device uses the WB2S module that comes with Tuya firmware which can be flashed to esphome using cloudcutter following instructions in this DigiBlur guide

Support for WB2S modules is available in ESPHome 2023.9.0 (https://github.com/esphome/esphome/pull/3509).

GPIO Pinout

Due to the fact that this uses a custom esphome firmware the pin numbers start with a P instead of the usual GPIO

Pin	Name	Function
P7	LED	Status LED
P26	Button	Power Button
P24	Outlet	Relay

Basic Configuration

# Globe Electric 50329 smart plug
substitutions:
  number: "1"
  device_name: globe-plug-${number}
  device_description: Globe Electric 50329 Smart plug
  friendly_name: Globe Plug ${number}

esphome:
  name: ${device_name}
  comment: ${device_description}

bk72xx:
  board: wb2s

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "YOUR KEY HERE"

web_server:
  port: 80
  auth:
    username: admin
    password: !secret web_server_password

ota:
  password: !secret ota_password

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

text_sensor:
  - platform: wifi_info
    ip_address:
      name: ESP IP Address
    ssid:
      name: ESP Connected SSID
    bssid:
      name: ESP Connected BSSID
    mac_address:
      name: ESP Mac Wifi Address

time:
  - platform: homeassistant
    id: homeassistant_time

sensor:
  - platform: uptime
    name: ${friendly_name} Uptime
    unit_of_measurement: minutes
    filters:
      - lambda: return x / 60.0;

  - platform: wifi_signal
    name: ${friendly_name} Signal
    update_interval: 60s

light:
  - platform: status_led
    name: "led"
    internal: true
    id: led
    pin:
      number: P7
      inverted: true

binary_sensor:
  - platform: gpio
    pin:
      number: P26
      inverted: true
    id: button1
    filters:
      - delayed_on: 10ms
      - delayed_off: 10ms
    on_click:
      - switch.toggle: outlet

  - platform: status
    name: ${friendly_name} status

switch:
  - platform: gpio
    name: ${friendly_name} Outlet
    id: outlet
    pin: P24
    icon: mdi:power-socket-us
    on_turn_on:
      - light.turn_on: led
    on_turn_off:
      - light.turn_off: led
