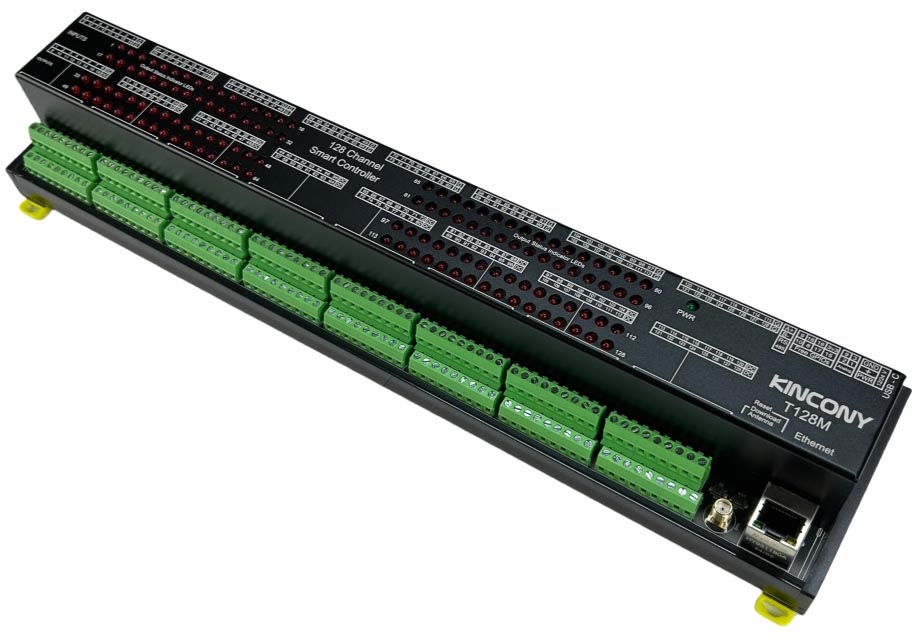

KinCony-T128M (ESP32-S3 128CH Mosfet board)
Resources
ESPHome Configuration
Here is an example YAML configuration for the KinCony T128M board.
esphome:
name: t128m
friendly_name: t128m
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
# Enable logging
logger:
hardware_uart: USB_SERIAL_JTAG
# Enable Home Assistant API
api:
ota:
platform: esphome
ethernet:
type: W5500
clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41
interrupt_pin: GPIO2
reset_pin: GPIO1
i2c:
- id: bus_a
sda: 48
scl: 47
scan: true
frequency: 400kHz
- id: bus_b
sda: 12
scl: 11
scan: true
frequency: 400kHz
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-16
i2c_id: bus_a
address: 0x27
pcf8575: true
- id: 'pcf8574_hub_out_2' # for output channel 17-32
i2c_id: bus_a
address: 0x26
pcf8575: true
- id: 'pcf8574_hub_out_3' # for output channel 33-48
i2c_id: bus_a
address: 0x23
pcf8575: true
- id: 'pcf8574_hub_out_4' # for output channel 49-64
i2c_id: bus_a
address: 0x22
pcf8575: true
- id: 'pcf8574_hub_out_5' # for output channel 65-80
i2c_id: bus_a
address: 0x25
pcf8575: true
- id: 'pcf8574_hub_out_6' # for output channel 81-96
i2c_id: bus_a
address: 0x24
pcf8575: true
- id: 'pcf8574_hub_out_7' # for output channel 97-112
i2c_id: bus_a
address: 0x21
pcf8575: true
- id: 'pcf8574_hub_out_8' # for output channel 113-128
i2c_id: bus_a
address: 0x20
pcf8575: true
- id: 'pcf8574_hub_in_1' # for input channel 1-16
i2c_id: bus_b
address: 0x27
pcf8575: true
- id: 'pcf8574_hub_in_2' # for input channel 17-32
i2c_id: bus_b
address: 0x26
pcf8575: true
- id: 'pcf8574_hub_in_3' # for input channel 33-48
i2c_id: bus_b
address: 0x23
pcf8575: true
- id: 'pcf8574_hub_in_4' # for input channel 49-64
i2c_id: bus_b
address: 0x22
pcf8575: true
- id: 'pcf8574_hub_in_5' # for input channel 65-80
i2c_id: bus_b
address: 0x25
pcf8575: true
- id: 'pcf8574_hub_in_6' # for input channel 81-96
i2c_id: bus_b
address: 0x24
pcf8575: true
- id: 'pcf8574_hub_in_7' # for input channel 97-112
i2c_id: bus_b
address: 0x21
pcf8575: true
- id: 'pcf8574_hub_in_8' # for input channel 113-128
i2c_id: bus_b
address: 0x20
pcf8575: true
switch:
- platform: gpio
name: "t128m-output01"
id: "t128m_output01"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output02"
id: "t128m_output02"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output03"
id: "t128m_output03"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output04"
id: "t128m_output04"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output05"
id: "t128m_output05"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output06"
id: "t128m_output06"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output07"
id: "t128m_output07"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output08"
id: "t128m_output08"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output09"
id: "t128m_output09"
pin:
pcf8574: pcf8574_hub_out_1
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output10"
id: "t128m_output10"
pin:
pcf8574: pcf8574_hub_out_1
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output11"
id: "t128m_output11"
pin:
pcf8574: pcf8574_hub_out_1
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output12"
id: "t128m_output12"
pin:
pcf8574: pcf8574_hub_out_1
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output13"
id: "t128m_output13"
pin:
pcf8574: pcf8574_hub_out_1
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output14"
id: "t128m_output14"
pin:
pcf8574: pcf8574_hub_out_1
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output15"
id: "t128m_output15"
pin:
pcf8574: pcf8574_hub_out_1
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output16"
id: "t128m_output16"
pin:
pcf8574: pcf8574_hub_out_1
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output17"
id: "t128m_output17"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output18"
id: "t128m_output18"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output19"
id: "t128m_output19"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output20"
id: "t128m_output20"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output21"
id: "t128m_output21"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output22"
id: "t128m_output22"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output23"
id: "t128m_output23"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output24"
id: "t128m_output24"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output25"
id: "t128m_output25"
pin:
pcf8574: pcf8574_hub_out_2
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output26"
id: "t128m_output26"
pin:
pcf8574: pcf8574_hub_out_2
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output27"
id: "t128m_output27"
pin:
pcf8574: pcf8574_hub_out_2
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output28"
id: "t128m_output28"
pin:
pcf8574: pcf8574_hub_out_2
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output29"
id: "t128m_output29"
pin:
pcf8574: pcf8574_hub_out_2
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output30"
id: "t128m_output30"
pin:
pcf8574: pcf8574_hub_out_2
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output31"
id: "t128m_output31"
pin:
pcf8574: pcf8574_hub_out_2
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output32"
id: "t128m_output32"
pin:
pcf8574: pcf8574_hub_out_2
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output33"
id: "t128m_output33"
pin:
pcf8574: pcf8574_hub_out_3
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output34"
id: "t128m_output34"
pin:
pcf8574: pcf8574_hub_out_3
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output35"
id: "t128m_output35"
pin:
pcf8574: pcf8574_hub_out_3
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output36"
id: "t128m_output36"
pin:
pcf8574: pcf8574_hub_out_3
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output37"
id: "t128m_output37"
pin:
pcf8574: pcf8574_hub_out_3
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output38"
id: "t128m_output38"
pin:
pcf8574: pcf8574_hub_out_3
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output39"
id: "t128m_output39"
pin:
pcf8574: pcf8574_hub_out_3
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output40"
id: "t128m_output40"
pin:
pcf8574: pcf8574_hub_out_3
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output41"
id: "t128m_output41"
pin:
pcf8574: pcf8574_hub_out_3
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output42"
id: "t128m_output42"
pin:
pcf8574: pcf8574_hub_out_3
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output43"
id: "t128m_output43"
pin:
pcf8574: pcf8574_hub_out_3
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output44"
id: "t128m_output44"
pin:
pcf8574: pcf8574_hub_out_3
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output45"
id: "t128m_output45"
pin:
pcf8574: pcf8574_hub_out_3
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output46"
id: "t128m_output46"
pin:
pcf8574: pcf8574_hub_out_3
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output47"
id: "t128m_output47"
pin:
pcf8574: pcf8574_hub_out_3
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output48"
id: "t128m_output48"
pin:
pcf8574: pcf8574_hub_out_3
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output49"
id: "t128m_output49"
pin:
pcf8574: pcf8574_hub_out_4
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output50"
id: "t128m_output50"
pin:
pcf8574: pcf8574_hub_out_4
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output51"
id: "t128m_output51"
pin:
pcf8574: pcf8574_hub_out_4
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output52"
id: "t128m_output52"
pin:
pcf8574: pcf8574_hub_out_4
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output53"
id: "t128m_output53"
pin:
pcf8574: pcf8574_hub_out_4
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output54"
id: "t128m_output54"
pin:
pcf8574: pcf8574_hub_out_4
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output55"
id: "t128m_output55"
pin:
pcf8574: pcf8574_hub_out_4
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output56"
id: "t128m_output56"
pin:
pcf8574: pcf8574_hub_out_4
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output57"
id: "t128m_output57"
pin:
pcf8574: pcf8574_hub_out_4
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output58"
id: "t128m_output58"
pin:
pcf8574: pcf8574_hub_out_4
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output59"
id: "t128m_output59"
pin:
pcf8574: pcf8574_hub_out_4
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output60"
id: "t128m_output60"
pin:
pcf8574: pcf8574_hub_out_4
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output61"
id: "t128m_output61"
pin:
pcf8574: pcf8574_hub_out_4
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output62"
id: "t128m_output62"
pin:
pcf8574: pcf8574_hub_out_4
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output63"
id: "t128m_output63"
pin:
pcf8574: pcf8574_hub_out_4
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output64"
id: "t128m_output64"
pin:
pcf8574: pcf8574_hub_out_4
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output65"
id: "t128m_output65"
pin:
pcf8574: pcf8574_hub_out_5
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output66"
id: "t128m_output66"
pin:
pcf8574: pcf8574_hub_out_5
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output67"
id: "t128m_output67"
pin:
pcf8574: pcf8574_hub_out_5
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output68"
id: "t128m_output68"
pin:
pcf8574: pcf8574_hub_out_5
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output69"
id: "t128m_output69"
pin:
pcf8574: pcf8574_hub_out_5
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output70"
id: "t128m_output70"
pin:
pcf8574: pcf8574_hub_out_5
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output71"
id: "t128m_output71"
pin:
pcf8574: pcf8574_hub_out_5
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output72"
id: "t128m_output72"
pin:
pcf8574: pcf8574_hub_out_5
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output73"
id: "t128m_output73"
pin:
pcf8574: pcf8574_hub_out_5
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output74"
id: "t128m_output74"
pin:
pcf8574: pcf8574_hub_out_5
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output75"
id: "t128m_output75"
pin:
pcf8574: pcf8574_hub_out_5
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output76"
id: "t128m_output76"
pin:
pcf8574: pcf8574_hub_out_5
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output77"
id: "t128m_output77"
pin:
pcf8574: pcf8574_hub_out_5
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output78"
id: "t128m_output78"
pin:
pcf8574: pcf8574_hub_out_5
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output79"
id: "t128m_output79"
pin:
pcf8574: pcf8574_hub_out_5
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output80"
id: "t128m_output80"
pin:
pcf8574: pcf8574_hub_out_5
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output81"
id: "t128m_output81"
pin:
pcf8574: pcf8574_hub_out_6
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output82"
id: "t128m_output82"
pin:
pcf8574: pcf8574_hub_out_6
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output83"
id: "t128m_output83"
pin:
pcf8574: pcf8574_hub_out_6
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output84"
id: "t128m_output84"
pin:
pcf8574: pcf8574_hub_out_6
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output85"
id: "t128m_output85"
pin:
pcf8574: pcf8574_hub_out_6
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output86"
id: "t128m_output86"
pin:
pcf8574: pcf8574_hub_out_6
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output87"
id: "t128m_output87"
pin:
pcf8574: pcf8574_hub_out_6
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output88"
id: "t128m_output88"
pin:
pcf8574: pcf8574_hub_out_6
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output89"
id: "t128m_output89"
pin:
pcf8574: pcf8574_hub_out_6
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output90"
id: "t128m_output90"
pin:
pcf8574: pcf8574_hub_out_6
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output91"
id: "t128m_output91"
pin:
pcf8574: pcf8574_hub_out_6
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output92"
id: "t128m_output92"
pin:
pcf8574: pcf8574_hub_out_6
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output93"
id: "t128m_output93"
pin:
pcf8574: pcf8574_hub_out_6
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output94"
id: "t128m_output94"
pin:
pcf8574: pcf8574_hub_out_6
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output95"
id: "t128m_output95"
pin:
pcf8574: pcf8574_hub_out_6
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output96"
id: "t128m_output96"
pin:
pcf8574: pcf8574_hub_out_6
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output97"
id: "t128m_output97"
pin:
pcf8574: pcf8574_hub_out_7
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output98"
id: "t128m_output98"
pin:
pcf8574: pcf8574_hub_out_7
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output99"
id: "t128m_output99"
pin:
pcf8574: pcf8574_hub_out_7
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output100"
id: "t128m_output100"
pin:
pcf8574: pcf8574_hub_out_7
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output101"
id: "t128m_output101"
pin:
pcf8574: pcf8574_hub_out_7
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output102"
id: "t128m_output102"
pin:
pcf8574: pcf8574_hub_out_7
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output103"
id: "t128m_output103"
pin:
pcf8574: pcf8574_hub_out_7
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output104"
id: "t128m_output104"
pin:
pcf8574: pcf8574_hub_out_7
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output105"
id: "t128m_output105"
pin:
pcf8574: pcf8574_hub_out_7
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output106"
id: "t128m_output106"
pin:
pcf8574: pcf8574_hub_out_7
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output107"
id: "t128m_output107"
pin:
pcf8574: pcf8574_hub_out_7
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output108"
id: "t128m_output108"
pin:
pcf8574: pcf8574_hub_out_7
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output109"
id: "t128m_output109"
pin:
pcf8574: pcf8574_hub_out_7
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output110"
id: "t128m_output110"
pin:
pcf8574: pcf8574_hub_out_7
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output111"
id: "t128m_output111"
pin:
pcf8574: pcf8574_hub_out_7
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output112"
id: "t128m_output112"
pin:
pcf8574: pcf8574_hub_out_7
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output113"
id: "t128m_output113"
pin:
pcf8574: pcf8574_hub_out_8
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output114"
id: "t128m_output114"
pin:
pcf8574: pcf8574_hub_out_8
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output115"
id: "t128m_output115"
pin:
pcf8574: pcf8574_hub_out_8
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output116"
id: "t128m_output116"
pin:
pcf8574: pcf8574_hub_out_8
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output117"
id: "t128m_output117"
pin:
pcf8574: pcf8574_hub_out_8
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output118"
id: "t128m_output118"
pin:
pcf8574: pcf8574_hub_out_8
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output119"
id: "t128m_output119"
pin:
pcf8574: pcf8574_hub_out_8
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output120"
id: "t128m_output120"
pin:
pcf8574: pcf8574_hub_out_8
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output121"
id: "t128m_output121"
pin:
pcf8574: pcf8574_hub_out_8
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output122"
id: "t128m_output122"
pin:
pcf8574: pcf8574_hub_out_8
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output123"
id: "t128m_output123"
pin:
pcf8574: pcf8574_hub_out_8
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output124"
id: "t128m_output124"
pin:
pcf8574: pcf8574_hub_out_8
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output125"
id: "t128m_output125"
pin:
pcf8574: pcf8574_hub_out_8
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output126"
id: "t128m_output126"
pin:
pcf8574: pcf8574_hub_out_8
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output127"
id: "t128m_output127"
pin:
pcf8574: pcf8574_hub_out_8
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t128m-output128"
id: "t128m_output128"
pin:
pcf8574: pcf8574_hub_out_8
number: 15
mode: OUTPUT
inverted: true
binary_sensor:
- platform: gpio
name: "t128m-input01"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input02"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input03"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input04"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input05"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input06"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input07"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input08"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input09"
pin:
pcf8574: pcf8574_hub_in_1
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input10"
pin:
pcf8574: pcf8574_hub_in_1
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input11"
pin:
pcf8574: pcf8574_hub_in_1
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input12"
pin:
pcf8574: pcf8574_hub_in_1
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input13"
pin:
pcf8574: pcf8574_hub_in_1
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input14"
pin:
pcf8574: pcf8574_hub_in_1
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input15"
pin:
pcf8574: pcf8574_hub_in_1
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input16"
pin:
pcf8574: pcf8574_hub_in_1
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input17"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input18"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input19"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input20"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input21"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input22"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input23"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input24"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input25"
pin:
pcf8574: pcf8574_hub_in_2
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input26"
pin:
pcf8574: pcf8574_hub_in_2
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input27"
pin:
pcf8574: pcf8574_hub_in_2
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input28"
pin:
pcf8574: pcf8574_hub_in_2
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input29"
pin:
pcf8574: pcf8574_hub_in_2
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input30"
pin:
pcf8574: pcf8574_hub_in_2
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input31"
pin:
pcf8574: pcf8574_hub_in_2
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input32"
pin:
pcf8574: pcf8574_hub_in_2
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input33"
pin:
pcf8574: pcf8574_hub_in_3
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input34"
pin:
pcf8574: pcf8574_hub_in_3
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input35"
pin:
pcf8574: pcf8574_hub_in_3
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input36"
pin:
pcf8574: pcf8574_hub_in_3
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input37"
pin:
pcf8574: pcf8574_hub_in_3
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input38"
pin:
pcf8574: pcf8574_hub_in_3
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input39"
pin:
pcf8574: pcf8574_hub_in_3
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input40"
pin:
pcf8574: pcf8574_hub_in_3
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input41"
pin:
pcf8574: pcf8574_hub_in_3
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input42"
pin:
pcf8574: pcf8574_hub_in_3
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input43"
pin:
pcf8574: pcf8574_hub_in_3
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input44"
pin:
pcf8574: pcf8574_hub_in_3
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input45"
pin:
pcf8574: pcf8574_hub_in_3
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input46"
pin:
pcf8574: pcf8574_hub_in_3
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input47"
pin:
pcf8574: pcf8574_hub_in_3
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input48"
pin:
pcf8574: pcf8574_hub_in_3
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input49"
pin:
pcf8574: pcf8574_hub_in_4
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input50"
pin:
pcf8574: pcf8574_hub_in_4
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input51"
pin:
pcf8574: pcf8574_hub_in_4
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input52"
pin:
pcf8574: pcf8574_hub_in_4
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input53"
pin:
pcf8574: pcf8574_hub_in_4
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input54"
pin:
pcf8574: pcf8574_hub_in_4
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input55"
pin:
pcf8574: pcf8574_hub_in_4
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input56"
pin:
pcf8574: pcf8574_hub_in_4
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input57"
pin:
pcf8574: pcf8574_hub_in_4
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input58"
pin:
pcf8574: pcf8574_hub_in_4
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input59"
pin:
pcf8574: pcf8574_hub_in_4
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input60"
pin:
pcf8574: pcf8574_hub_in_4
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input61"
pin:
pcf8574: pcf8574_hub_in_4
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input62"
pin:
pcf8574: pcf8574_hub_in_4
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input63"
pin:
pcf8574: pcf8574_hub_in_4
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input64"
pin:
pcf8574: pcf8574_hub_in_4
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input65"
pin:
pcf8574: pcf8574_hub_in_5
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input66"
pin:
pcf8574: pcf8574_hub_in_5
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input67"
pin:
pcf8574: pcf8574_hub_in_5
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input68"
pin:
pcf8574: pcf8574_hub_in_5
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input69"
pin:
pcf8574: pcf8574_hub_in_5
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input70"
pin:
pcf8574: pcf8574_hub_in_5
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input71"
pin:
pcf8574: pcf8574_hub_in_5
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input72"
pin:
pcf8574: pcf8574_hub_in_5
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input73"
pin:
pcf8574: pcf8574_hub_in_5
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input74"
pin:
pcf8574: pcf8574_hub_in_5
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input75"
pin:
pcf8574: pcf8574_hub_in_5
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input76"
pin:
pcf8574: pcf8574_hub_in_5
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input77"
pin:
pcf8574: pcf8574_hub_in_5
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input78"
pin:
pcf8574: pcf8574_hub_in_5
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input79"
pin:
pcf8574: pcf8574_hub_in_5
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input80"
pin:
pcf8574: pcf8574_hub_in_5
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input81"
pin:
pcf8574: pcf8574_hub_in_6
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input82"
pin:
pcf8574: pcf8574_hub_in_6
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input83"
pin:
pcf8574: pcf8574_hub_in_6
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input84"
pin:
pcf8574: pcf8574_hub_in_6
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input85"
pin:
pcf8574: pcf8574_hub_in_6
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input86"
pin:
pcf8574: pcf8574_hub_in_6
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input87"
pin:
pcf8574: pcf8574_hub_in_6
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input88"
pin:
pcf8574: pcf8574_hub_in_6
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input89"
pin:
pcf8574: pcf8574_hub_in_6
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input90"
pin:
pcf8574: pcf8574_hub_in_6
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input91"
pin:
pcf8574: pcf8574_hub_in_6
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input92"
pin:
pcf8574: pcf8574_hub_in_6
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input93"
pin:
pcf8574: pcf8574_hub_in_6
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input94"
pin:
pcf8574: pcf8574_hub_in_6
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input95"
pin:
pcf8574: pcf8574_hub_in_6
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input96"
pin:
pcf8574: pcf8574_hub_in_6
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input97"
pin:
pcf8574: pcf8574_hub_in_7
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input98"
pin:
pcf8574: pcf8574_hub_in_7
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input99"
pin:
pcf8574: pcf8574_hub_in_7
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input100"
pin:
pcf8574: pcf8574_hub_in_7
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input101"
pin:
pcf8574: pcf8574_hub_in_7
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input102"
pin:
pcf8574: pcf8574_hub_in_7
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input103"
pin:
pcf8574: pcf8574_hub_in_7
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input104"
pin:
pcf8574: pcf8574_hub_in_7
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input105"
pin:
pcf8574: pcf8574_hub_in_7
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input106"
pin:
pcf8574: pcf8574_hub_in_7
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input107"
pin:
pcf8574: pcf8574_hub_in_7
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input108"
pin:
pcf8574: pcf8574_hub_in_7
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input109"
pin:
pcf8574: pcf8574_hub_in_7
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input110"
pin:
pcf8574: pcf8574_hub_in_7
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input111"
pin:
pcf8574: pcf8574_hub_in_7
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input112"
pin:
pcf8574: pcf8574_hub_in_7
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input113"
pin:
pcf8574: pcf8574_hub_in_8
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input114"
pin:
pcf8574: pcf8574_hub_in_8
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input115"
pin:
pcf8574: pcf8574_hub_in_8
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input116"
pin:
pcf8574: pcf8574_hub_in_8
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input117"
pin:
pcf8574: pcf8574_hub_in_8
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input118"
pin:
pcf8574: pcf8574_hub_in_8
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input119"
pin:
pcf8574: pcf8574_hub_in_8
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input120"
pin:
pcf8574: pcf8574_hub_in_8
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input121"
pin:
pcf8574: pcf8574_hub_in_8
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input122"
pin:
pcf8574: pcf8574_hub_in_8
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input123"
pin:
pcf8574: pcf8574_hub_in_8
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input124"
pin:
pcf8574: pcf8574_hub_in_8
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input125"
pin:
pcf8574: pcf8574_hub_in_8
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input126"
pin:
pcf8574: pcf8574_hub_in_8
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input127"
pin:
pcf8574: pcf8574_hub_in_8
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t128m-input128"
pin:
pcf8574: pcf8574_hub_in_8
number: 15
mode: INPUT
inverted: true
## pull-up resistance on PCB
- platform: gpio
name: "t128m-W1-io15"
pin:
number: 15
inverted: true
- platform: gpio
name: "t128m-W1-io16"
pin:
number: 16
inverted: false
- platform: gpio
name: "t128m-W1-io17"
pin:
number: 17
inverted: false
- platform: gpio
name: "t128m-W1-io18"
pin:
number: 18
inverted: false
## without pull-up resistance on PCB
- platform: gpio
name: "t128m-io0"
pin:
number: 0
inverted: false
- platform: gpio
name: "t128m-io8"
pin:
number: 8
inverted: false
- platform: gpio
name: "t128m-io9"
pin:
number: 9
inverted: false
- platform: gpio
name: "t128m-io10"
pin:
number: 10
inverted: false
sensor:
- platform: adc
pin: 7
name: "t128m A1 Voltage"
update_interval: 5s
attenuation: 11db
filters:
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 6
name: "t128m A2 Voltage"
update_interval: 5s
attenuation: 11db
filters:
# - multiply: 1.51515
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 5
name: "t128m A3 Current"
update_interval: 5s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666
- platform: adc
pin: 4
name: "t128m A4 Current"
update_interval: 5s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666
