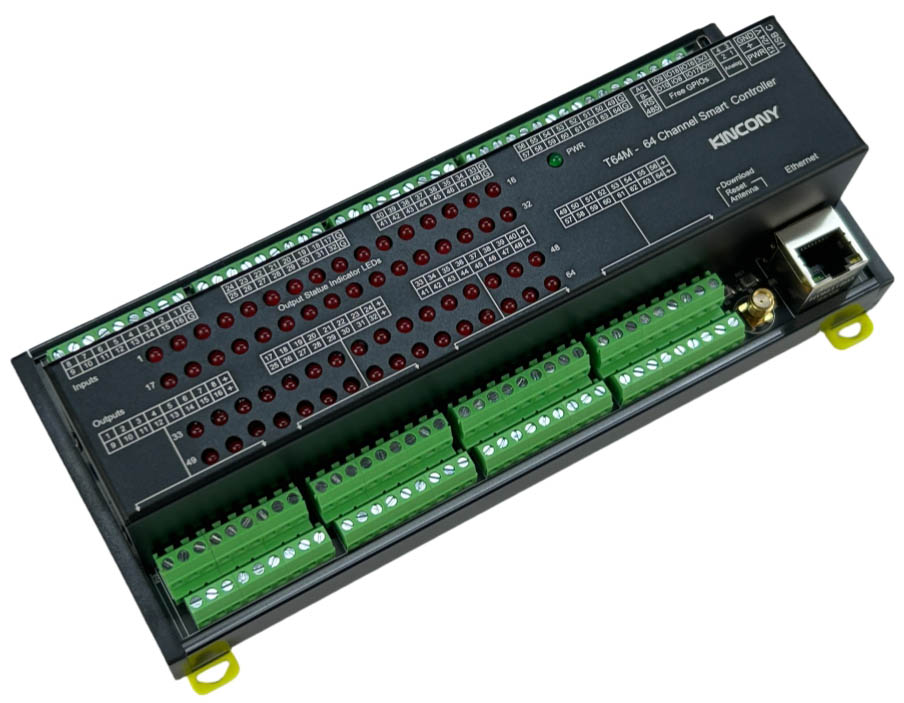

KinCony-T64M (ESP32-S3 64CH Mosfet board)
Resources
ESPHome Configuration
Here is an example YAML configuration for the KinCony T64M board.
esphome:
name: t64m
friendly_name: t64m
esp32:
board: esp32-s3-devkitc-1
framework:
type: esp-idf
# Enable logging
logger:
hardware_uart: USB_SERIAL_JTAG
# Enable Home Assistant API
api:
ethernet:
type: W5500
clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41
interrupt_pin: GPIO2
reset_pin: GPIO1
i2c:
- id: bus_a
sda: 48
scl: 47
scan: true
frequency: 400kHz
- id: bus_b
sda: 12
scl: 11
scan: true
frequency: 400kHz
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-16
i2c_id: bus_a
address: 0x25
pcf8575: true
- id: 'pcf8574_hub_out_2' # for output channel 17-32
i2c_id: bus_a
address: 0x24
pcf8575: true
- id: 'pcf8574_hub_out_3' # for output channel 33-48
i2c_id: bus_a
address: 0x21
pcf8575: true
- id: 'pcf8574_hub_out_4' # for output channel 49-64
i2c_id: bus_a
address: 0x20
pcf8575: true
- id: 'pcf8574_hub_in_1' # for input channel 1-16
i2c_id: bus_b
address: 0x25
pcf8575: true
- id: 'pcf8574_hub_in_2' # for input channel 17-32
i2c_id: bus_b
address: 0x24
pcf8575: true
- id: 'pcf8574_hub_in_3' # for input channel 33-48
i2c_id: bus_b
address: 0x21
pcf8575: true
- id: 'pcf8574_hub_in_4' # for input channel 49-64
i2c_id: bus_b
address: 0x20
pcf8575: true
switch:
- platform: gpio
name: "t64m-output01"
id: "t64m_output01"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output02"
id: "t64m_output02"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output03"
id: "t64m_output03"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output04"
id: "t64m_output04"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output05"
id: "t64m_output05"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output06"
id: "t64m_output06"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output07"
id: "t64m_output07"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output08"
id: "t64m_output08"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output09"
id: "t64m_output09"
pin:
pcf8574: pcf8574_hub_out_1
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output10"
id: "t64m_output10"
pin:
pcf8574: pcf8574_hub_out_1
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output11"
id: "t64m_output11"
pin:
pcf8574: pcf8574_hub_out_1
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output12"
id: "t64m_output12"
pin:
pcf8574: pcf8574_hub_out_1
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output13"
id: "t64m_output13"
pin:
pcf8574: pcf8574_hub_out_1
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output14"
id: "t64m_output14"
pin:
pcf8574: pcf8574_hub_out_1
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output15"
id: "t64m_output15"
pin:
pcf8574: pcf8574_hub_out_1
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output16"
id: "t64m_output16"
pin:
pcf8574: pcf8574_hub_out_1
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output17"
id: "t64m_output17"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output18"
id: "t64m_output18"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output19"
id: "t64m_output19"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output20"
id: "t64m_output20"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output21"
id: "t64m_output21"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output22"
id: "t64m_output22"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output23"
id: "t64m_output23"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output24"
id: "t64m_output24"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output25"
id: "t64m_output25"
pin:
pcf8574: pcf8574_hub_out_2
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output26"
id: "t64m_output26"
pin:
pcf8574: pcf8574_hub_out_2
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output27"
id: "t64m_output27"
pin:
pcf8574: pcf8574_hub_out_2
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output28"
id: "t64m_output28"
pin:
pcf8574: pcf8574_hub_out_2
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output29"
id: "t64m_output29"
pin:
pcf8574: pcf8574_hub_out_2
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output30"
id: "t64m_output30"
pin:
pcf8574: pcf8574_hub_out_2
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output31"
id: "t64m_output31"
pin:
pcf8574: pcf8574_hub_out_2
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output32"
id: "t64m_output32"
pin:
pcf8574: pcf8574_hub_out_2
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output33"
id: "t64m_output33"
pin:
pcf8574: pcf8574_hub_out_3
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output34"
id: "t64m_output34"
pin:
pcf8574: pcf8574_hub_out_3
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output35"
id: "t64m_output35"
pin:
pcf8574: pcf8574_hub_out_3
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output36"
id: "t64m_output36"
pin:
pcf8574: pcf8574_hub_out_3
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output37"
id: "t64m_output37"
pin:
pcf8574: pcf8574_hub_out_3
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output38"
id: "t64m_output38"
pin:
pcf8574: pcf8574_hub_out_3
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output39"
id: "t64m_output39"
pin:
pcf8574: pcf8574_hub_out_3
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output40"
id: "t64m_output40"
pin:
pcf8574: pcf8574_hub_out_3
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output41"
id: "t64m_output41"
pin:
pcf8574: pcf8574_hub_out_3
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output42"
id: "t64m_output42"
pin:
pcf8574: pcf8574_hub_out_3
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output43"
id: "t64m_output43"
pin:
pcf8574: pcf8574_hub_out_3
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output44"
id: "t64m_output44"
pin:
pcf8574: pcf8574_hub_out_3
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output45"
id: "t64m_output45"
pin:
pcf8574: pcf8574_hub_out_3
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output46"
id: "t64m_output46"
pin:
pcf8574: pcf8574_hub_out_3
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output47"
id: "t64m_output47"
pin:
pcf8574: pcf8574_hub_out_3
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output48"
id: "t64m_output48"
pin:
pcf8574: pcf8574_hub_out_3
number: 15
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output49"
id: "t64m_output49"
pin:
pcf8574: pcf8574_hub_out_4
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output50"
id: "t64m_output50"
pin:
pcf8574: pcf8574_hub_out_4
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output51"
id: "t64m_output51"
pin:
pcf8574: pcf8574_hub_out_4
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output52"
id: "t64m_output52"
pin:
pcf8574: pcf8574_hub_out_4
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output53"
id: "t64m_output53"
pin:
pcf8574: pcf8574_hub_out_4
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output54"
id: "t64m_output54"
pin:
pcf8574: pcf8574_hub_out_4
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output55"
id: "t64m_output55"
pin:
pcf8574: pcf8574_hub_out_4
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output56"
id: "t64m_output56"
pin:
pcf8574: pcf8574_hub_out_4
number: 7
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output57"
id: "t64m_output57"
pin:
pcf8574: pcf8574_hub_out_4
number: 8
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output58"
id: "t64m_output58"
pin:
pcf8574: pcf8574_hub_out_4
number: 9
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output59"
id: "t64m_output59"
pin:
pcf8574: pcf8574_hub_out_4
number: 10
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output60"
id: "t64m_output60"
pin:
pcf8574: pcf8574_hub_out_4
number: 11
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output61"
id: "t64m_output61"
pin:
pcf8574: pcf8574_hub_out_4
number: 12
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output62"
id: "t64m_output62"
pin:
pcf8574: pcf8574_hub_out_4
number: 13
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output63"
id: "t64m_output63"
pin:
pcf8574: pcf8574_hub_out_4
number: 14
mode: OUTPUT
inverted: true
- platform: gpio
name: "t64m-output64"
id: "t64m_output64"
pin:
pcf8574: pcf8574_hub_out_4
number: 15
mode: OUTPUT
inverted: true
binary_sensor:
- platform: gpio
name: "t64m-input01"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input02"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input03"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input04"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input05"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input06"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input07"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input08"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input09"
pin:
pcf8574: pcf8574_hub_in_1
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input10"
pin:
pcf8574: pcf8574_hub_in_1
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input11"
pin:
pcf8574: pcf8574_hub_in_1
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input12"
pin:
pcf8574: pcf8574_hub_in_1
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input13"
pin:
pcf8574: pcf8574_hub_in_1
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input14"
pin:
pcf8574: pcf8574_hub_in_1
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input15"
pin:
pcf8574: pcf8574_hub_in_1
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input16"
pin:
pcf8574: pcf8574_hub_in_1
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input17"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input18"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input19"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input20"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input21"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input22"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input23"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input24"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input25"
pin:
pcf8574: pcf8574_hub_in_2
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input26"
pin:
pcf8574: pcf8574_hub_in_2
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input27"
pin:
pcf8574: pcf8574_hub_in_2
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input28"
pin:
pcf8574: pcf8574_hub_in_2
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input29"
pin:
pcf8574: pcf8574_hub_in_2
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input30"
pin:
pcf8574: pcf8574_hub_in_2
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input31"
pin:
pcf8574: pcf8574_hub_in_2
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input32"
pin:
pcf8574: pcf8574_hub_in_2
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input33"
pin:
pcf8574: pcf8574_hub_in_3
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input34"
pin:
pcf8574: pcf8574_hub_in_3
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input35"
pin:
pcf8574: pcf8574_hub_in_3
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input36"
pin:
pcf8574: pcf8574_hub_in_3
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input37"
pin:
pcf8574: pcf8574_hub_in_3
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input38"
pin:
pcf8574: pcf8574_hub_in_3
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input39"
pin:
pcf8574: pcf8574_hub_in_3
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input40"
pin:
pcf8574: pcf8574_hub_in_3
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input41"
pin:
pcf8574: pcf8574_hub_in_3
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input42"
pin:
pcf8574: pcf8574_hub_in_3
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input43"
pin:
pcf8574: pcf8574_hub_in_3
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input44"
pin:
pcf8574: pcf8574_hub_in_3
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input45"
pin:
pcf8574: pcf8574_hub_in_3
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input46"
pin:
pcf8574: pcf8574_hub_in_3
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input47"
pin:
pcf8574: pcf8574_hub_in_3
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input48"
pin:
pcf8574: pcf8574_hub_in_3
number: 15
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input49"
pin:
pcf8574: pcf8574_hub_in_4
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input50"
pin:
pcf8574: pcf8574_hub_in_4
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input51"
pin:
pcf8574: pcf8574_hub_in_4
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input52"
pin:
pcf8574: pcf8574_hub_in_4
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input53"
pin:
pcf8574: pcf8574_hub_in_4
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input54"
pin:
pcf8574: pcf8574_hub_in_4
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input55"
pin:
pcf8574: pcf8574_hub_in_4
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input56"
pin:
pcf8574: pcf8574_hub_in_4
number: 7
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input57"
pin:
pcf8574: pcf8574_hub_in_4
number: 8
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input58"
pin:
pcf8574: pcf8574_hub_in_4
number: 9
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input59"
pin:
pcf8574: pcf8574_hub_in_4
number: 10
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input60"
pin:
pcf8574: pcf8574_hub_in_4
number: 11
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input61"
pin:
pcf8574: pcf8574_hub_in_4
number: 12
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input62"
pin:
pcf8574: pcf8574_hub_in_4
number: 13
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input63"
pin:
pcf8574: pcf8574_hub_in_4
number: 14
mode: INPUT
inverted: true
- platform: gpio
name: "t64m-input64"
pin:
pcf8574: pcf8574_hub_in_4
number: 15
mode: INPUT
inverted: true
## pull-up resistance on PCB
- platform: gpio
name: "t64m-W1-io15"
pin:
number: 15
inverted: true
- platform: gpio
name: "t64m-W1-io16"
pin:
number: 16
inverted: false
- platform: gpio
name: "t64m-W1-io17"
pin:
number: 17
inverted: false
- platform: gpio
name: "t64m-W1-io18"
pin:
number: 18
inverted: false
## without pull-up resistance on PCB
- platform: gpio
name: "t64m-io0"
pin:
number: 0
inverted: false
- platform: gpio
name: "t64m-io8"
pin:
number: 8
inverted: false
- platform: gpio
name: "t64m-io9"
pin:
number: 9
inverted: false
- platform: gpio
name: "t64m-io10"
pin:
number: 10
inverted: false
sensor:
- platform: adc
pin: 7
name: "t64m A1 Voltage"
update_interval: 5s
attenuation: 11db
filters:
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 6
name: "t64m A2 Voltage"
update_interval: 5s
attenuation: 11db
filters:
# - multiply: 1.51515
- lambda:
if (x >= 3.11) {
return x * 1.60256;
} else if (x <= 0.15) {
return 0;
} else {
return x * 1.51;
}
- platform: adc
pin: 5
name: "t64m A3 Current"
update_interval: 5s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666
- platform: adc
pin: 4
name: "t64m A4 Current"
update_interval: 5s
unit_of_measurement: mA
attenuation: 11db
filters:
- multiply: 6.66666666
