OeeGoo 12 Inch 30W Smart Ceiling Light (RGB/CW)

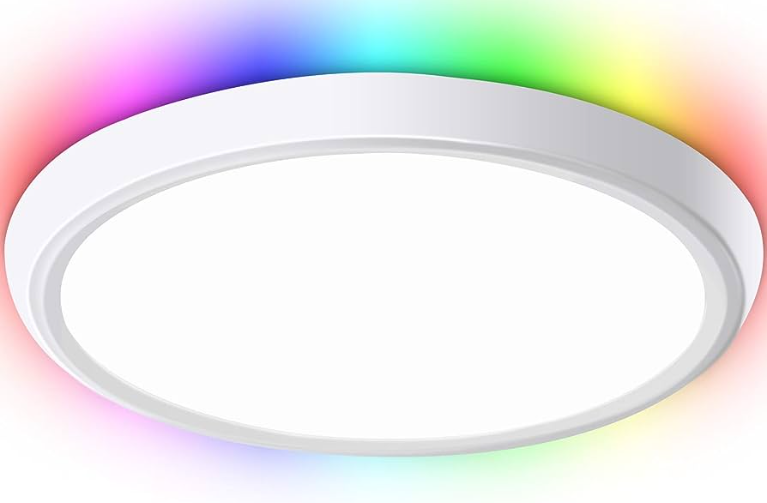

Smart ceiling light with a CW center light (2700K-6500K) and a RGB ring light. The part number is clb035-wn-c38-k1-ee-fff and advertised as either 30 or 35 watts, 100-240V AC 50/60Hz.

Hardware Modification

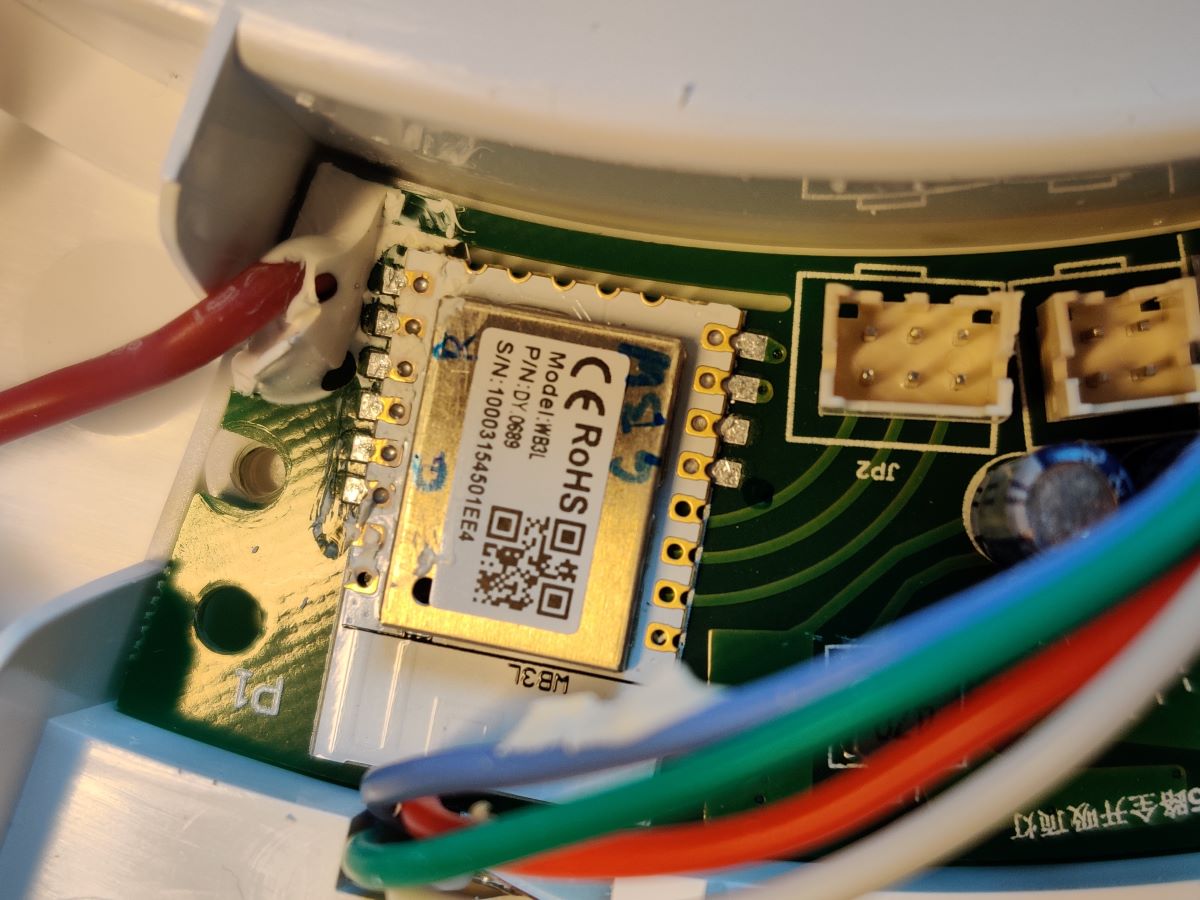

This device uses a proprietary Tuya module [WB3L] and will need to be replaced with an ESP32-C3F before it can be used with ESPHome. This will require disassembly with a philips screwdriver, desoldering the module, soldering a new pre-programmed module. The Picture below shows the proprietary module that comes with the unit. Removing the module will require heating each side with a piece of solid copper wire (18 AWG) to thermally short all pins. With one iron, a razor blade can help shim each side as it is heated to lift the module.

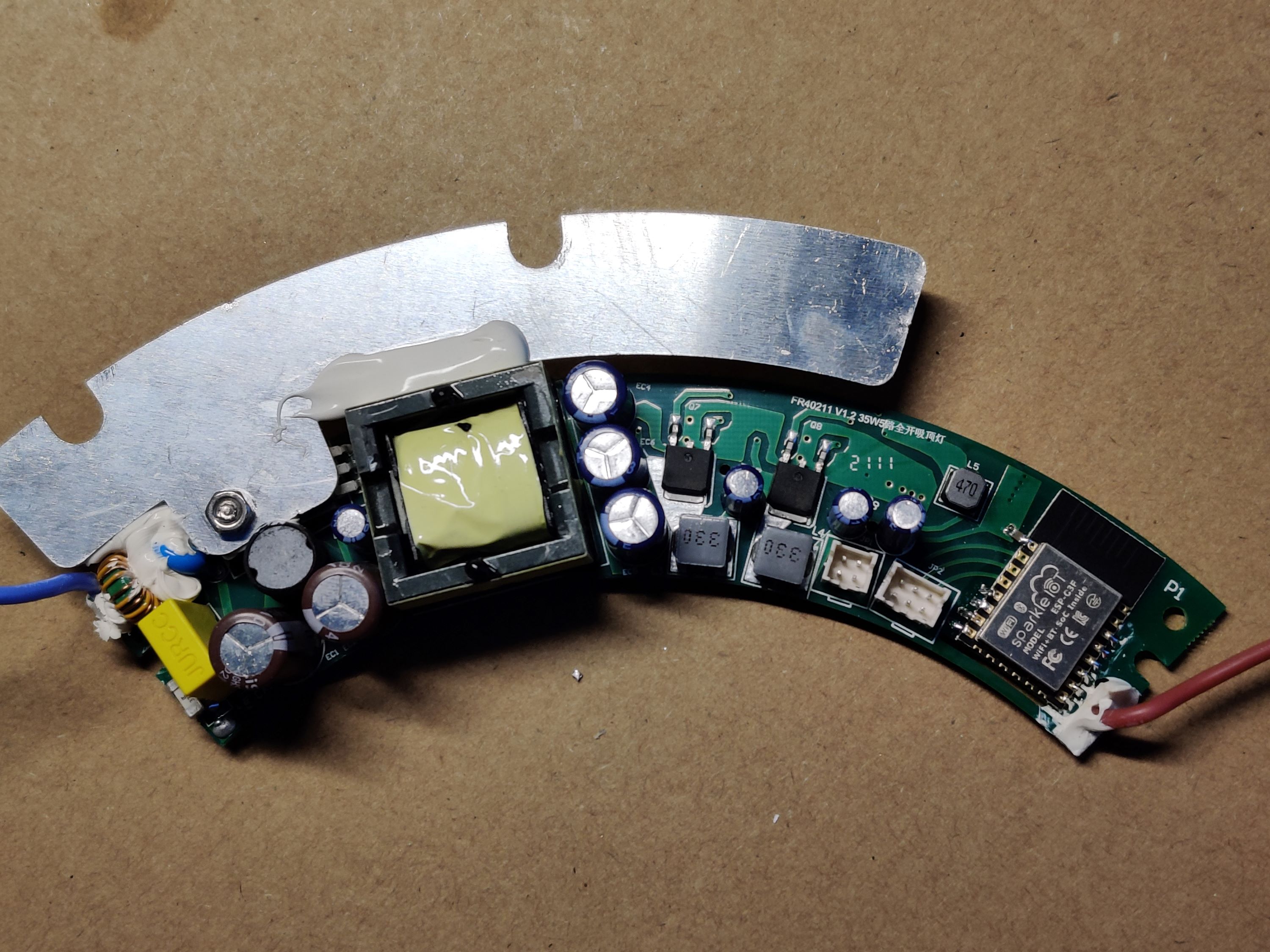

A Sparkleiot ESP32-C3F module is used here and was pre-programmed using an ESP test board before installing onto the light module. Compiled using Arduino framework and default qio flash mode without issue using ESPHome CLI. It was observed that the light does not connect the reset line and this caused the ESP32 to not power up, a 0.1 uF 0805 capacitor is added between reset pin of the ESP32 and ground pad to hold the reset longer as a solution.

PWM Settings

Each set of LEDs (R,G,B,C,W) is controlled by a PWM output. The max duty cycle was measured with an oscilloscope from the Tuya module.

YAML File

substitutions:
  device_name: masterlight
  friendly_name: "Master Bedroom Overhead"

esphome:
  name: ${device_name}
  friendly_name: ${friendly_name}

esp32:
  board: esp32-c3-devkitm-1

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: !secret encryption_key

ota:
  password: !secret ota_password

wifi:
  networks:
  - ssid: !secret guest_ssid
    password: !secret guest_password
  - ssid: !secret wifi_ssid
    password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "ESPHome ${device_name}"
    password: !secret wifi_password_backup

# Enable NTP
time:
  - platform: sntp
    id: my_time

# General Config
text_sensor:
  - platform: version
    name: "${device_name} Version"
  - platform: wifi_info
    ip_address:
      name: "${device_name} IP Address"
    ssid:
      name: "${device_name} SSID"
    bssid:
      name: "${device_name} BSSID"

sensor:
  - platform: wifi_signal
    name: "${device_name} WiFi Signal"
    update_interval: 60s
    filters:
      - delta: 0.01
      - throttle: 300s
  - platform: uptime
    name: "${device_name} Uptime"
    filters:
      - throttle: 300s

light:
  # RGB Mood Light
  - platform: rgb
    name: "RGB Light"
    red: output_pwm1
    green: output_pwm2
    blue: output_pwm3
    restore_mode: RESTORE_DEFAULT_OFF
  # Temperature controlled light
  - platform: cwww
    name: "Room Light"
    cold_white: output_pwm4
    warm_white: output_pwm5
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    constant_brightness: True
    restore_mode: RESTORE_DEFAULT_ON

output:
  # Red PWM
  - platform: ledc
    id: output_pwm1
    pin: GPIO10
    zero_means_zero: True
  # Green PWM
  - platform: ledc
    id: output_pwm2
    pin: GPIO3
    max_power: 70%
    zero_means_zero: True
  # Blue PWM
  - platform: ledc
    id: output_pwm3
    pin: GPIO4
    max_power: 75%
    zero_means_zero: True
  # Cool PWM
  - platform: ledc
    id: output_pwm4
    pin: GPIO18
    zero_means_zero: True
  # Warm PWM
  - platform: ledc
    id: output_pwm5
    pin: GPIO5
    zero_means_zero: True
