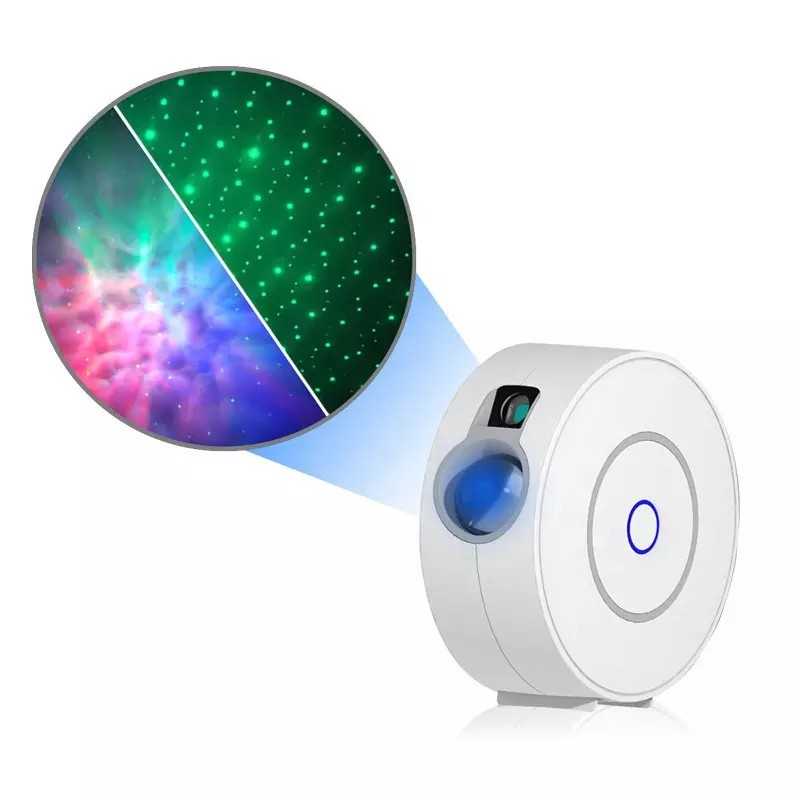

Tuya Smart Star Projector SK20
Notes
Credit for all the work goes to M4GNV5, I've just made a few minor changes to suit my preferences.
Basic Configuration
substitutions:
name: galaxy
friendly_name: "Star Projector"
esphome:
name: ${name}
name_add_mac_suffix: false
friendly_name: ${friendly_name}
bk72xx:
board: wb3s
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
domain: !secret domain
power_save_mode: none
ap:
ssid: "ESPHome SSP"
password: !secret wifi_fallback_password
api:
encryption:
key: !secret api_key
web_server:
port: 80
ota:
logger:
captive_portal:
text_sensor:
- platform: wifi_info
ip_address:
name: "ESP IP Address"
ssid:
name: "ESP Connected SSID"
mac_address:
name: "ESP Mac Wifi Address"
sensor:
- platform: uptime
name: "Uptime"
unit_of_measurement: minutes
filters:
- lambda: return x / 60.0;
- platform: wifi_signal
name: "Signal"
update_interval: 60s
light:
- platform: rgb
name: "Light"
id: rgb_light
restore_mode: ALWAYS_OFF
red: red
green: green
blue: blue
effects:
- random:
transition_length: 2.5s
update_interval: 3s
- random:
name: Random Slow
transition_length: 10s
update_interval: 5s
- flicker:
alpha: 95%
intensity: 2.5%
- strobe:
- pulse:
transition_length: 30s
min_brightness: 5%
max_brightness: 100%
- platform: monochromatic
name: "Laser"
icon: mdi:laser-pointer
id: laser
output: laser_pwm
restore_mode: ALWAYS_OFF
# Button LED (UP/Down position, no brightness control)
- platform: status_led
name: "Button Status LED"
id: button_led0
output: button_led0_gpio
restore_mode: ALWAYS_OFF
internal: true
- platform: monochromatic
name: "Button LED1"
id: button_led1
output: button_led1_pwm
restore_mode: ALWAYS_OFF
fan:
platform: speed
name: "Motor"
icon: mdi:rotate-right
id: motor
output: motor_pwm
restore_mode: ALWAYS_OFF
# The template switch representing the device is currently active (laser/light
# or motor is ON).
switch:
- platform: template
name: "Main Switch"
id: switch_main
lambda: "return (id(motor).state || id(laser).current_values.is_on() || id(rgb_light).current_values.is_on());"
# Turn on using the white scene
turn_on_action:
- select.set_index:
id: select_scene
index: 3
# Completely turn off the laser, light, motor and button LED
turn_off_action:
- fan.turn_off: motor
- light.turn_off: laser
- light.turn_off: rgb_light
- light.turn_off: button_led0
- script.stop: script_turn_off_timer
output:
- platform: libretiny_pwm
id: red
pin: P9
inverted: true
- platform: libretiny_pwm
id: green
pin: P24
inverted: true
- platform: libretiny_pwm
id: blue
pin: P26
inverted: true
- platform: libretiny_pwm
id: laser_pwm
pin: P8
inverted: true
- platform: libretiny_pwm
id: motor_pwm
pin: P6
min_power: 15%
- platform: gpio
id: button_led0_gpio
pin: P1
inverted: true
- platform: libretiny_pwm
id: button_led1_pwm
pin: P7
inverted: true
binary_sensor:
- platform: gpio
pin:
number: P14
mode: INPUT_PULLDOWN_16
inverted: true
name: "Button"
# Change the scene on short press/click
on_click:
then:
# Do not switch the scene when all the components (switch_main) are
# turned off. Allow the scene switching only when the switch_main is
# on. When the switch is off, just turn it on.
- if:
condition:
- switch.is_on: switch_main
then:
- select.next: select_scene
else:
- switch.turn_on: switch_main
# Turn off after a button long press
on_multi_click:
- timing:
- on for at least 1s
then:
- switch.turn_off: switch_main
# Turn off the light, laser and motor automatically after a specified delay
script:
- id: script_turn_off_timer
mode: restart
then:
- delay: 1h
- switch.turn_off: switch_main
select:
platform: template
name: "Scene"
id: select_scene
options:
- "Scene - Red"
- "Scene - Blue"
- "Scene - Green"
- "Scene - White"
- "Scene - Dimmed"
initial_option: "Scene - White"
optimistic: true
on_value:
then:
# Always reset the timer script
- script.stop: script_turn_off_timer
- script.execute: script_turn_off_timer
# Make sure the button LED is ON
- light.turn_on:
id: button_led0
# [INDEX=0]: Scene - Red
- if:
condition:
lambda: "return (id(select_scene).active_index() == 0);"
then:
- light.turn_on:
id: rgb_light
brightness: 50%
red: 80%
green: 0%
blue: 50%
- light.turn_on:
id: laser
brightness: 60%
- fan.turn_on:
id: motor
speed: 40
# [INDEX=1]: Scene - Blue
- if:
condition:
lambda: "return (id(select_scene).active_index() == 1);"
then:
- light.turn_on:
id: rgb_light
brightness: 50%
red: 50%
green: 0%
blue: 100%
- light.turn_on:
id: laser
brightness: 60%
- fan.turn_on:
id: motor
speed: 40
# [INDEX=2]: Scene - Green
- if:
condition:
lambda: "return (id(select_scene).active_index() == 2);"
then:
- light.turn_on:
id: rgb_light
brightness: 50%
red: 0%
green: 60%
blue: 30%
- light.turn_on:
id: laser
brightness: 60%
- fan.turn_on:
id: motor
speed: 40
# [INDEX=3]: Scene - White
- if:
condition:
lambda: "return (id(select_scene).active_index() == 3);"
then:
- light.turn_on:
id: rgb_light
brightness: 100%
red: 100%
green: 100%
blue: 100%
- light.turn_on:
id: laser
brightness: 100%
- fan.turn_on:
id: motor
speed: 50
# [INDEX=4]: Scene - Dimmed
- if:
condition:
lambda: "return (id(select_scene).active_index() == 4);"
then:
- light.turn_on:
id: rgb_light
brightness: 30%
red: 5%
green: 5%
blue: 5%
- light.turn_on:
id: laser
brightness: 30%
- fan.turn_on:
id: motor
speed: 10
