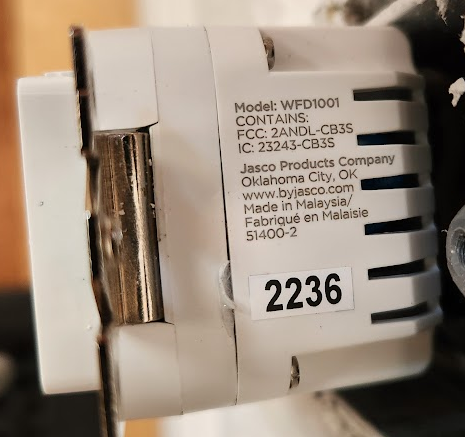

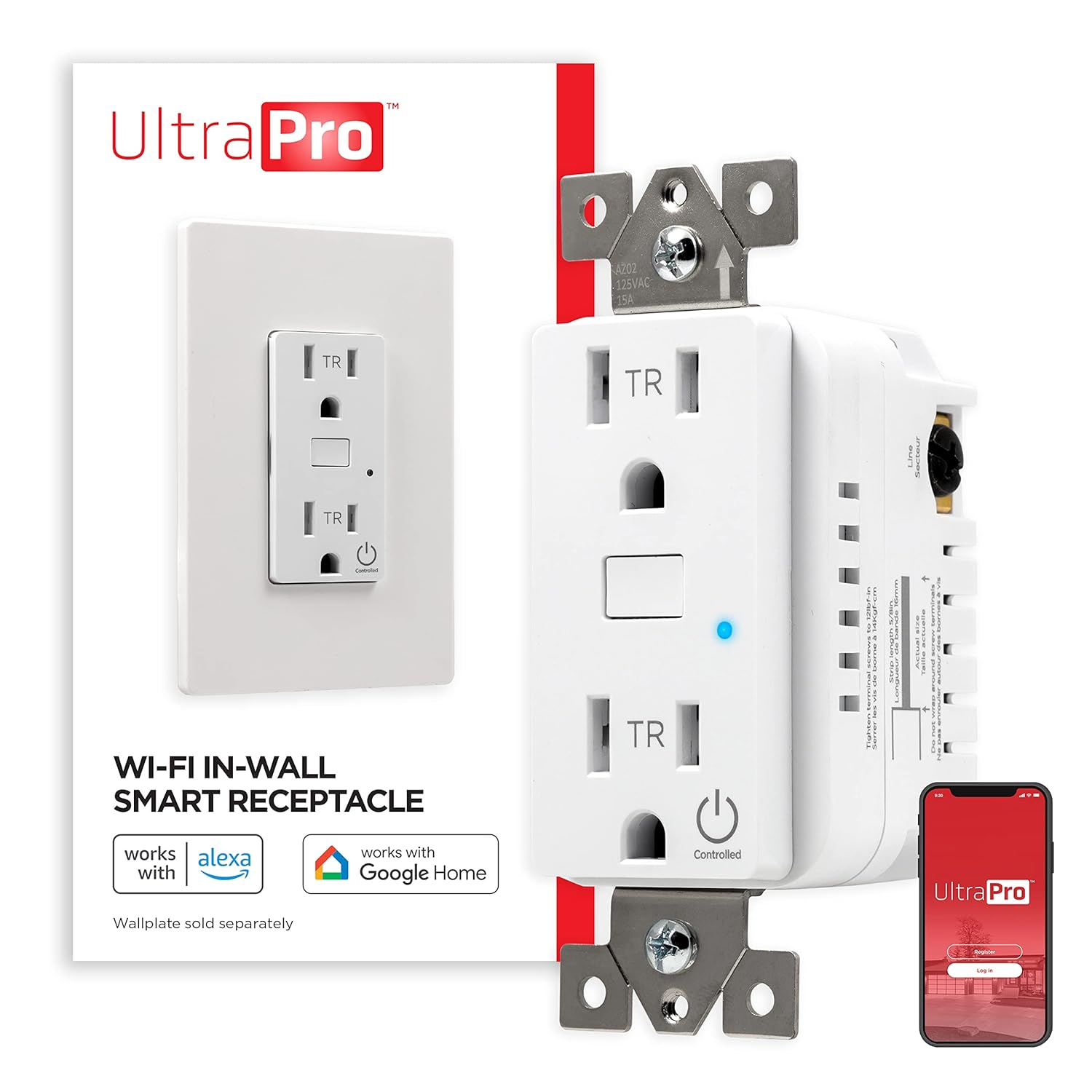

UltraPro WFD1001 Wall Outlet

GPIO Pinout

Pin	Alternate Pin Name	Function	Active
P23	ADC3	Button	Low
P24	PWM4	Status Led	High
P26	PWM5	Relay	High

Tuya Cloudcutter

The board is easily flashed without disassembly using tuya-cloudcutter.

Basic Configuration

The button will toggle the relay and LED. Holding the button for more than 5 seconds will reset the wifi password and revert the device to the captive portal.

# You should only need to modify the substitutions.
substitutions:
  device_name: master-bedroom-left-outlet
  friendly_name: Master Bedroom Left Outlet

# Nothing below should need modification
esphome:
  name: ${device_name}
  friendly_name: ${friendly_name}

bk72xx:
  board: cb3s

logger:
api:
captive_portal:
ota:
  - platform: esphome

wifi: # Get the SSID and password from the captive portal.
  ap:

output:
  - platform: libretiny_pwm
    id: output_blue_led
    pin: PWM4
switch:
  - platform: gpio
    pin: PWM5
    id: relay
    name: None
    restore_mode: RESTORE_DEFAULT_OFF
    device_class: switch
    on_turn_on:
      then:
        - light.turn_on: blue_led
    on_turn_off:
      then:
        - light.turn_off: blue_led
button:
  - platform: restart
    id: do_restart
    name: "Restart"
  - platform: factory_reset
    id: do_factory_reset
    name: "Factory Reset to AP mode"
binary_sensor:
  - platform: gpio
    pin:
      number: P23
      inverted: True # The button is active low.
      mode: INPUT_PULLUP
    id: input_button
    on_press:
      then:
        - switch.toggle: relay
        - while:
            condition:
              - binary_sensor.is_on: input_button
            then:
              - light.toggle: blue_led
              - delay: 250ms
    on_release:
      then:
        - if:
            condition:
              - switch.is_on: relay
            then:
              - light.turn_on: blue_led
            else:
              - light.turn_off: blue_led
    on_click:
      - min_length: 5s
        max_length: 100s
        then:
          - repeat:
              count: 6
              then:
                - light.toggle: blue_led
                - delay: 100ms
          - button.press: do_factory_reset
light:
  - platform: status_led
    id: blue_led
    name: Blue LED
    output: output_blue_led
    disabled_by_default: True
    restore_mode: RESTORE_DEFAULT_OFF
